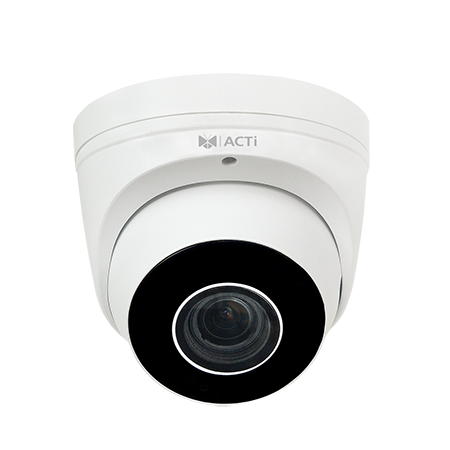

ACTi - Z82 - 4MP Outdoor Zoom Dome with D/N, Adaptive IR, Extreme WDR, SLLS, 4.4x Zoom lens
Part number:
Z82
Price:
4MP Outdoor Zoom Dome with D/N, Adaptive IR, Extreme WDR, SLLS, 4.4x Zoom lens, f2.7-12mm/F1.4 (HOV: 91°-27°), Auto Focus (for installation), H.265/H.264, 1080p/30fps, 2D+3D DNR, Built-in Microphone, MicroSDHC/MicroSDXC, PoE/DC12V, IP67
Features:
- 4 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Extreme WDR
- H.265 Compression
- Wide Angle
| Device | |
| Product Type | Zoom Dome |
| Maximum Resolution | 4MP |
| Application Environment | Outdoor |
| Description | 4MP Outdoor Zoom Dome with D/N, Adaptive IR, Extreme WDR, SLLS, 4.4x Zoom lens |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.02 lux; B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 30m |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Zoom, f2.7-12mm |
| Aperture | F1.4 |
| Zoom Ratio | 4.4x optical zoom |
| Zoom Application | Camera Installation |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 91° - 27° |
| Vertical Viewing Angle | 67.4° - 14.2° |
| Viewing Angle Adjustment | Pan: 0°-360°, Tilt: 15°-90°, Rotation: 0°-360° |
| Video | |
| Compression | H.265, H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 20 fps at 2592 x 1520 |
| 25 fps at 2560 x 1440 | |
| 30 fps at 2048 x 1520 | |
| 30 fps at 1920 x 1080 | |
| Multi-Streaming | Simultaneous triple streams |
| Wide Dynamic Range | Extreme WDR (120 dB) |
| Image Enhancement | White Balance, Brightness, Saturation, Contrast, Sharpness, Automatic gain control, Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 8 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Tampering Detection |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) |
| Audio | |
| Audio Type | 1-way, Built-in Microphone |
| Network | |
| Network Protocol & Service | IPv4, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector |
| Integration | |
| ONVIF Compliant | Yes, Profile S |
| Web Browser | IE 11 |
| Interface | |
| Local Storage | MicroSDHC Memory Card Slot (card not included, up to 128GB, Kingston or Sandisk only) |
| Operating Button | Reset Button |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 8.16 W (PoE) |
| Weight | 670g (1.48lb) |
| Dimensions | (Ø x H): 129mm x 110mm (5.08" x 4.3") |
| Environmental Casing | Weatherproof (IP68), Vandal proof (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Approvals | CE, FCC, EAC, IP68, IK10, UL Listed |
| Real-time Clock (RTC) | Yes |
