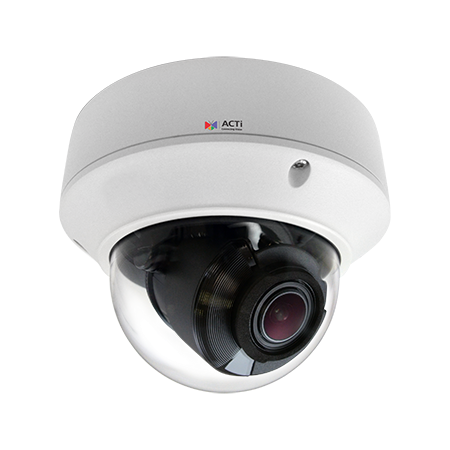

ACTI - Z84 - 4MP Outdoor Zoom Dome with D/N, Adaptive IR, Superior WDR, SLLS, 4.3x Zoom lens, f2.8-12mm (HOV:91°-27°), Auto Focus (for installation), H.265/H.264, 2D+3D DNR, MicroSDHC/MicroSDXC, PoE/DC12V, IP67, IK10
ACTI - Z84 - 4MP Outdoor Zoom Dome with D/N, Adaptive IR, Superior WDR, SLLS, 4.3x Zoom lens, f2.8-12mm (HOV:91°-27°), Auto Focus (for installation), H.265/H.264, 2D+3D DNR, MicroSDHC/MicroSDXC, PoE/DC12V, IP67, IK10
Part number:
Z84
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

4MP Outdoor Zoom Dome with D/N, Adaptive IR, Superior WDR, SLLS, 4.3x Zoom lens, f2.8-12mm (HOV:91°-27°), Auto Focus (for installation), H.265/H.264, 2D+3D DNR, MicroSDHC/MicroSDXC, PoE/DC12V, IP67, IK10.



Features:

  • 4 Megapixel
  • Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
  • 4.3x Zoom Lens with f2.8-12/F1.6, Auto focus (for installation)
  • Superior WDR
  • H.265 Compression
  • Wide Angle
  • Event trigger, response and notification
Device
Product TypeZoom Dome
Maximum Resolution4MP
Application EnvironmentOutdoor
Image SensorProgressive Scan CMOS
Sensor Size1/3 "
Effective Pixels2688(H) X 1520(V) (4.09 MP)
Day / NightYes
Low Light SensitivitySuperior
Minimum IlluminationColor: 0.01 lux; B/W: 0 lux (IR LED on)
Mechanical IR Cut FilterYes
IR LEDAdaptive IR LED
IR Working Distance40m
Electronic Shutter1-1/100000 second (manual mode); 1-1/100000 second (auto mode)
S/N Ratio52 dB
Lens
Focal LengthZoom, f2.8-12mm
ApertureF1.6
Zoom Ratio4.3x optical zoom
Zoom ApplicationCamera Installation
IrisFixed iris
FocusAuto focus
Lens MountBoard mount
Horizontal Viewing Angle91° - 27°
Vertical Viewing Angle54.4° - 13.7°
Viewing Angle AdjustmentPan: 0°-360°, Tilt: 0°-80°, Rotation: 0°-360°
Video
CompressionH.265, H.264 (Baseline/ Main profile), MJPEG
Maximum Frame Rate vs. Resolution20 fps at 2592 x 1520
20 fps at 2048 x 1520
20 fps at 1920 x 1080
20 fps at 1280 x 720
20 fps at 640 x 360
20 fps at 704 x 576
20 fps at 704 x 288
20 fps at 352 x 288
Multi-StreamingSimultaneous triple streams
Bit Rate ModeConstant, Variable
Wide Dynamic RangeSuperior WDR (120 dB)
Image EnhancementWhite Balance, Backlight compensation (BLC), Brightness, Contrast, Sharpness, Automatic gain control, Defogging
Digital Noise Reduction2D + 3D DNR
Privacy Mask4 configurable regions
Text OverlayYes
Built-in AnalyticsTampering Detection, Intrusion Detection (Forbidden Area Detection)*
Server-based AnalyticsObject Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image OrientationFlip, Mirror
Network
Network Protocol & ServiceIPv4, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SSL/TLS
Ethernet Port1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector
SecurityIP address filtering, HTTPS encryption, Password protected user level
Event
Event TriggerVideo motion detection (4 regions), Intelligent event detection.


Event ResponseE-mail notification with snapshots, Upload snapshot to FTP server, Save video or snapshot to local storage
Integration
ONVIF CompliantYes, Profile S, Profile G, Profile T
Web BrowserIE 11
Interface
Local StorageMicroSD, MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only)
Operating ButtonReset Button
General
Power SourceDC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption6 W (PoE)
Weight909g (2.004lb)
Dimensions(Ø x H): 148mm x 111.3mm (5.8" x 4.4")
Environmental CasingWeatherproof (IP68), Vandal proof (IK10)
Corrosion ProtectionOptional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years.
Operating Temperature-40°C ~ 60°C (-40°F ~ 140°F)
Operating Humidity10% - 95% RH
ApprovalsCE Class B, FCC Class B, BIS, EAC, IP68, IK10, UL Listed
Warranty2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Comments* Intrusion detection is integrated with ZNR series.
* Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series.
*4 UL certification will be available in Q1 2024.
