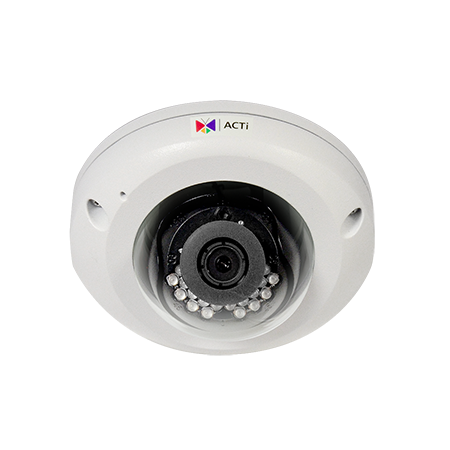

ACTi - Z92 - 4 Megapixel Outdoor IR Network Dome Camera, 2.8mm Lens
Product Overview
The ACTi Z92 is a 4 megapixel outdoor IR network dome camera with a fixed 2.8mm/F2.0 lens. It supports day/night surveillance with superior low light sensitivity, Adaptive IR LED, Extreme WDR, and H.265 compression for efficient video streaming and storage.
Key Configuration
4 megapixel outdoor network dome camera; fixed 2.8mm/F2.0 lens; day/night operation; superior low light sensitivity; Adaptive IR LED; Extreme WDR; H.265 video compression; super wide angle coverage.
Key Features
• 4 megapixel resolution for detailed surveillance video
• Fixed 2.8mm/F2.0 lens with super wide angle coverage
• Day/night imaging with superior low light sensitivity
• Adaptive IR LED for low-light and nighttime monitoring
• Extreme WDR and H.265 compression for balanced image quality and efficient bandwidth use
Technical Context
The Z92 combines a wide fixed lens with 4MP image capture for broad-area outdoor monitoring. Extreme WDR helps balance high-contrast scenes, while H.265 compression reduces bandwidth and storage demand compared with older compression formats while preserving usable image quality.
Installation Notes
The dome form factor is suited for outdoor surveillance points where broad scene coverage is needed from a fixed viewing position. The super wide angle lens can reduce the number of cameras required for open-area monitoring.
| Product Profile | |
| Product Type | Fixed Dome |
| Application Environment | Outdoor |
| Maximum Resolution | 4MP |
| Description | 4MP Outdoor Mini Dome with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed lens |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Effective Pixels | 2688(H) X 1520(V) (4.09 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.02 lux; B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 15m |
| Electronic Shutter | 1/6-1/100000 second (manual mode); 1/6-1/100000 second (auto mode) |
| S/N Ratio | 55 dB |
| Lens | |
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F2.0 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 101.8° |
| Vertical Viewing Angle | 46.9° |
| Viewing Angle Adjustment | Pan: ±30°, Tilt: 25°-90°, Rotation: 0°-360° |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 20 fps at 2592 x 1520 25 fps at 2560 x 1440 30 fps at 2048 x 1520 30 fps at 1920 x 1080 |
| Multi-Streaming | Simultaneous triple streams based on configurations of video resolution, compression format, and frame rate |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (120 dB) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) |
| Image Enhancement | Defogging |
| Privacy Mask | 8 configurable regions |
| Built-in Analytics | Tampering Detection |
| Audio | |
| Audio Type | 2-way, Built-in Microphone, Mic-in, Line-in, Line-out |
| Network | |
| Ethernet Port | 1 x RJ-45 pigtail connector |
| Integration | |
| ONVIF Compliant | Yes |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 5 W (PoE) |
| Weight | 250g (0.55lb) |
| Dimensions | (Ø x H): 110mm x 61mm (4.3" x 2.4") |
| Environmental Casing | Weatherproof (IP66), Vandal proof (IK10) |
| Mount Type | Surface |
| Operating Temperature | -35°C ~ 60°C (-31°F ~ 140°F) |
| Approvals | CE, FCC, EAC, IP66, IK10 |
| Real-time Clock (RTC) | Yes |
| Warranty | 2 Year(s). For extended warranty offering |
