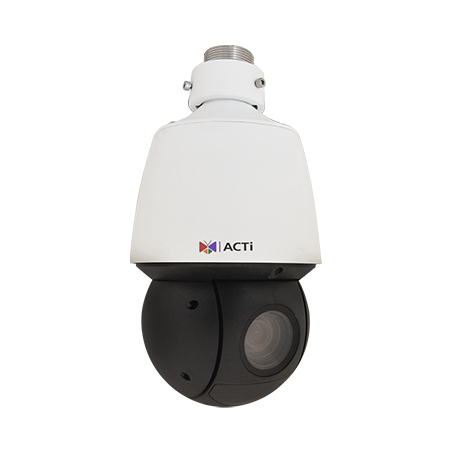

ACTi - Z952 - 4MP Outdoor Speed Dome with D/N, Adaptive IR, Extreme WDR, ELLS, 25x Zoom Lens
Part number:
Z952
Price:
4MP Outdoor Speed Dome with D/N, Adaptive IR, Superior WDR, SLLS, 25x Zoom lens, f4.8-120mm/F1.5-3.8 (HOV: 52.20°-2.74°), Auto Focus, H.265/H.264, 1080p/30fps, 2D+3D DNR, Audio, MicroSD, High PoE/DC12V, IP66, IK10, DI/DO
Features:
- 4 Megapixel
- Day & Night with Extreme Low Light Sensitivity and Adaptive IR LED
- Extreme WDR
- Endless Pan & Tilt, PTZ Auto Tracking
- H.265 Compression
- Event trigger, response and notification
| Device | |
| Product Type | Speed Dome |
| Maximum Resolution | 4MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.8 " |
| Effective Pixels | 2592(H) X 1944(V) (5.04 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.003 lux at F1.5 (AGC on); B/W: 0 (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 150m (1.0 lux at tele mode) |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Zoom, f4.8-120mm |
| Aperture | F1.5-F3.8 |
| Zoom Ratio | 25x optical zoom, unlimited digital zoom (via web browser) |
| Iris | DC iris |
| Focus | Auto focus |
| Horizontal Viewing Angle | 55.3° - 3.2° |
| Vertical Viewing Angle | 56° - 2.1° |
| PTZ | |
| Manual Panning / Tilting Speed | 0.1° - 200°/second, 0.1° - 120°/second |
| Preset Panning / Tilting Speed | 240°/second, 200°/second |
| Panning Range | 360° endless |
| Tilting Range | -15°~90° (with E-flip) |
| PTZ Control | Remote manual control, 1024 preset points, 16 preset tours |
| Absolute Position | Yes |
| Pan, Tilt or Zoom protocol | Pelco-D, Pelco-P |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 2688 x 1520 |
| 30 fps at 2560 x 1440 | |
| 30 fps at 1920 x 1080 | |
| 30 fps at 1280 x 720 | |
| 30 fps at 720 x 576 | |
| 30 fps at 704 x 288 | |
| 30 fps at 640 x 360 | |
| 30 fps at 352 x 288 | |
| Multi-Streaming | Simultaneous triple streams |
| Wide Dynamic Range | Extreme WDR (140 dB) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 24 configurable regions |
| Built-in Analytics | People Counting, Face Detection, PTZ Auto Tracking, Tampering Detection, Intrusion Detection (Forbidden Area Detection), Object Line Crossing Detection, Object Enter Area Detection, Object Exit Area Detection |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | G.711 u-law, G.711 A-law |
| Network | |
| Network Protocol & Service | IPv4, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SSL/TLS, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector |
| Maximum User Connections | 32 |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Event | |
| Event Trigger | Video motion detection, Tampering detection, Sound detection, External device through digital input, |
| Event Response | E-mail notification with snapshots, Upload snapshot to FTP server, Save video or snapshot to local storage |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Firefox |
| Interface | |
| Serial Port | 1 x RS-485 |
| Analog Video Output | 1 x BNC connector |
| Local Storage | MicroSD Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only) |
| Digital Input/Output | 1-Feb |
| Operating Button | Reset Button |
| General | |
| Power Source | DC 12V, High PoE (IEEE802.3at) |
| Power Consumption | 21 W (PoE) |
| Weight | 3200g (7.05lb) |
| Dimensions | (Ø x H): 166mm x 295mm (6.5" x 11.6") |
| Environmental Casing | Weatherproof (IP66), Vandal proof (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Bundled Accessories | Power Adapter (DC 12V) |
| Operating Temperature | -40°C ~ 65°C (-40°F ~ 149°F) |
| Operating Humidity | =95% RH |
| Surge Protection | 6KV |
| Approvals | CE Class B, FCC Class B, IP66, IK10, UL Listed |
| Color | White |
| Real-time Clock (RTC) | Yes |
| Warranty | 2 Year(s). For extended warranty offering. |
