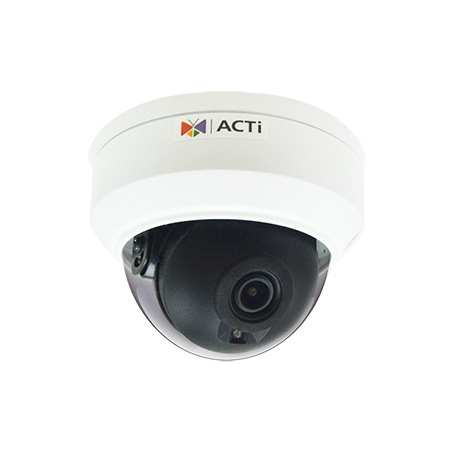

ACTi - Z98 - 4MP Outdoor Mini Dome with D/N, Adaptive IR, Superior WDR, SLLS, Fixed lens
Part number:
Z98
Price:
4MP Outdoor Mini Dome with D/N, Adaptive IR, Superior WDR, SLLS, Fixed lens, f2.8mm/F1.6 (HOV:99), H.265/H.264, 1440p/30fps, 2D+3D DNR, MicroSDHC, PoE/DC12V, IP68, IK10
Features:
- 4 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fixed Lens with f2.8mm/F1.6
- Superior WDR
- H.265 Compression
- Wide Angle
- Built-in Analytics
| Device | - |
| Product Type | Mini Dome |
| Maximum Resolution | 4MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.003 lux at F1.6 (AGC on); B/W: 0 (AGC on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED x 1 (850 nm) |
| IR Working Distance | 40m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | - |
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F1.6 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 99° |
| Vertical Viewing Angle | 53.8° |
| Viewing Angle Adjustment | Pan: 3°-360°, Tilt: 0°-68°, Rotation: 3°-360° |
| Video | - |
| Compression | H.265, H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 25 fps at 2688 x 1520 |
| 25 fps at 2560 x 1440 | |
| 30 fps at 2304 x 1296 | |
| 30 fps at 1920 x 1080 | |
| 30 fps at 1280 x 720 | |
| 30 fps at 720 x 576 | |
| 30 fps at 704 x 288 | |
| 30 fps at 640 x 360 | |
| 30 fps at 352 x 288 | |
| Multi-Streaming | Simultaneous dual streams |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Image Enhancement | Wide Dynamic Range, Backlight compensation (BLC), Brightness, Contrast, Sharpness, Automatic gain control, Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | People Detection, Vehicle Detection, Tampering Detection, Object Line Crossing Detection, Intrusion Detection (Forbidden Area Detection) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) |
| Network | - |
| Network Protocol & Service | IPv4, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SSL, SNMP |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Event | - |
| Event Trigger | Video motion detection (4 regions) Intelligent event detection |
| Event Response | E-mail notification with snapshots, Upload snapshot to FTP server |
| Integration | - |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Firefox |
| Interface | - |
| Local Storage | MicroSD Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only) |
| Operating Button | No |
| General | - |
| Power Source | DC 12V, PoE (IEEE802.3af) |
| Power Consumption | 5 W (PoE) |
| Weight | 485g (1.07lb) |
| Dimensions | (Ø x H): 109mm x 81mm (4.3" x 3.2") |
| Environmental Casing | Weatherproof (IP68), Vandal proof (IK10) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | 10% - 95% RH |
| Approvals | CE Class B, FCC Class B, IP68, IK10, UL Listed |
| Material | Camera body: Metal |
| Dome Cover: Plastic | |
| Real-time Clock (RTC) | No |
