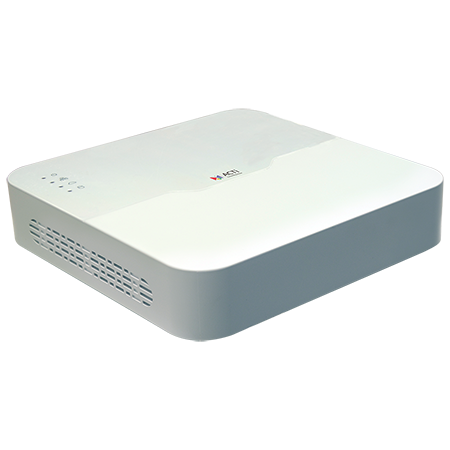

ACTI - ZNR-120P - 4-Channel 1-Bay Mini Standalone NVR with 4-port PoE Connectors, Recording Throughput 40 Mbps, Instant Playback, HDMI and VGA Port, Remote Access, Video Export via USB, 4-Channel Synchronized Playback, Plug & Play with Built-in DHCP
Part number:
ZNR-120P
Price:
4-Channel 1-Bay Mini Standalone NVR with 4-port PoE Connectors, Recording Throughput 40 Mbps, Instant Playback, HDMI and VGA Port, Remote Access, Video Export via USB, 4-Channel Synchronized Playback, Plug & Play with Built-in DHCP Server, 1-Bay (Storage Disks not included), Audio, DC 48V.
Features:
- 1-bay Mini Standalone NVR
- Maximum Number of Video Devices: 4
- Built-in PoE Connectors (4 ports)
- Web Client
- Video export formats: MP4
| Device | |
| Product Type | Standalone NVR |
| Maximum Resolution | Local: up to 8MP; Remote: up to12MP |
| Maximum Number of Video Devices | 4 |
| Maximum Number of Clients | Local: 1, Remote: 2 |
| Hardware |
| CPU | Hi3536 |
| License |
| License required | No |
| Free License | 4 |
| Live View |
| Display Layout Mode | 1,4 |
| Digital Zoom | Yes |
| Event Status | Display event status upon alarm or upon connection loss or recovery between server and client |
| Instant Playback | Instant Playback in live view window |
| PTZ |
| PTZ Control | PTZ Control, Speed Control |
| Video |
| Compression | H.265, H.264 |
| Maximum Frame Rate vs. Resolution | 30 fps at 3840 x 2160 20 fps at 2688 x 1520 25 fps at 1920 x 1080 25 fps at 1280 x 720 |
| Audio |
| Audio Type | 2-way, Line-in, Line-out |
| Network |
| Ethernet Port | Total ports: 5 port(s) Non-PoE: 1 port(s), Ethernet (10/100 Base-T), RJ-45 connector PoE: 4 port(s), Ethernet (10/100 Base-T), RJ-45 connector |
| Recording |
| Scheduled Recording | Yes |
| Event Recording | Yes |
| Manual Recording | Yes |
| Maximum Recording Throughput | 40 Mbps |
| Search & Playback |
| Playback Control | Continuous forward and backward playback with speeds 1/8x, 1/4x, 1/2x, 1x, 2x, 4x, 8x, 16x, 32x, 64x, 128x, 256x, pause, stop |
| Synchronized Playback | 4 channels |
| Video Export | MP4 |
| Event |
| Event Trigger | [Video Device]: Video motion detection, External device through digital input, Sound detection, Intelligent event detection (Intrusion Detection, Tampering Detection) |
| System |
| Permission control | 128 Remote users, Customizable permissions for user groups |
| Client PC Operating System | Windows 7, Windows 8, Windows 10 |
| Server Operating System | Embedded Linux |
| USB | 2-Port USB 2.0 |
| Language | English |
| Integration |
| ONVIF Compliant | Yes |
| Web Browser | IE 10 or newer |
| Storage |
| Storage Bay | SATA, Max. 1 Disk(s) |
| Maximum Recording Capacity | 8TB x1 |
| RAID Level | No |
| Interface |
| Local Access | HDMI/VGA monitor, USB Mouse |
| General |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Output | Maximum 30 Watts per port |
| PoE Power Budget | Maximum 54 W |
| Power Source | DC 48V |
| Power Consumption | 8 W (DC) |
| Weight | 590g (1.3lb) |
| Dimensions | (W x H x D): 42mm x 205mm x 205mm (1.7" x 8.1" x 8.1") |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Operating Humidity | 10% - 90% RH |
| Remote Access | Web Client |
| Approvals | CE, FCC |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
