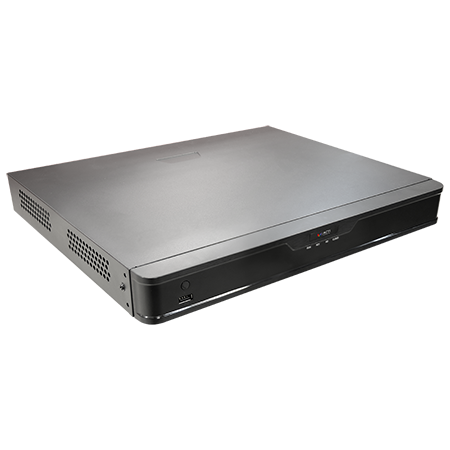

ACTI - ZNR-221P - 16-Channel Desktop Standalone NVR with 16-port PoE Connectors 8MP
ACTI - ZNR-221P - 16-Channel Desktop Standalone NVR with 16-port PoE Connectors 8MP
Part number:
ZNR-221P
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

16-Channel 2-Bay Desktop Standalone NVR with 16-port PoE Connectors, Recording Throughput 160 Mbps, Instant Playback, HDMI and VGA Port, Remote Access, Video Export via USB, 16-Channel Synchronized Playback, Plug & Play with Built-in DHCP Server, 2-Bay (Storage Disks not included), Audio, DI/DO, AC 100-240V.



Features:

  • 2-bay Desktop Standalone NVR
  • Maximum Number of Video Devices: 16
  • Built-in PoE Connectors (16 ports)
  • Web Client
  • Event trigger, response and notification
  • Video export formats: MP4
Device
Product TypeStandalone NVR
Maximum Resolution8MP
Maximum Number of Video Devices16
Maximum Number of ClientsLocal: 1, Remote: 2
Supported Screen ResolutionHDMI: 3840x2160 (30Hz), 1920x1080 (60Hz/50Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz)
VGA: 1920x1080 (60Hz/50Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz)
License
License requiredNo
Free License16
Live View
Display Layout Mode1, 4, 6, 8, 9, 16
Local Live View performance2ch (up to 30 fps at 4K 3840 x 2160)
4ch (up to 30 fps at 4MP)
5ch (up to 30 fps at 3MP)
8ch (up to 30 fps at 2MP 1920 x 1080)
16ch (up to 30 fps at 720p)
Digital ZoomYes
Event StatusDisplay event status upon alarm or upon connection loss or recovery between server and client
PTZ
PTZ ControlPTZ Control, Speed Control
Video
CompressionH.265, H.264
Text OverlayYes
Audio
Audio Type2-way, Line-in, Line-out
Network
Network Protocol & ServiceIPv4/v6, TCP, UDP, DHCP Client, HTTP, HTTPS, DNS, DDNS, NTP, RTSP, SMTP, FTP, ICMP, ARP, UPnP, SNMP
Ethernet PortTotal ports: 17 port(s)
Non-PoE: 1 port(s), Ethernet (10/100/1000 Base-T), RJ-45 connector
PoE: 16 port(s), Ethernet (10/100 Base-T), RJ-45 connector
Maximum Outgoing Throughput64 Mbps
Recording
Scheduled RecordingYes
Event RecordingYes
Manual RecordingYes
Maximum Recording Throughput160 Mbps
Search & Playback
Playback ControlContinuous forward and backward playback with speeds 1x/2x/4x/8x/16x, pause, stop, frame-by-frame
Synchronized Playback16 channels
Video ExportMP4
Snapshot ExportJPEG
Event
Event Trigger[NVR]: Low disk space, Disk full, Disk not found, Failed to write storage, IP address conflict, Network loss.

[Video Device]: Video motion detection, Tampering detection, Sound detection
Event ResponsePlay alert sound, E-mail notification with snapshots
System
Permission control128 Remote users, Customizable permissions for user groups
Client PC Operating SystemWindows 7, Windows 8, Windows 10
Server Operating SystemEmbedded Linux
USB1-Port USB 2.0, 1-Port USB 3.0
LanguageEnglish, Traditional Chinese, Japanese, Spanish
Integration
ONVIF CompliantYes, Profile S, Profile G, Profile T
Web BrowserIE 10 or newer, Google Chrome, Microsoft Edge, Firefox
Storage
Storage BaySATA, Max. 2 Disk(s)
HDD Size3.5"
Maximum Recording Capacity22TB x2
RAID LevelNo
Interface
Audio Interface1/1, RCA Jack
Digital Input/Output4/1 (Terminal block)
Local AccessUSB Mouse
Local Display InterfaceHDMI x 1, VGA x 1
General
PoE OutputMaximum 30 Watts per port
PoE Power BudgetMaximum 240 W
Power SourceAC 100-240V
Power Consumption10 W (AC, without HDD)
Weight2600g (5.29lb)
Dimensions(W x H x D): 380mm x 53mm x 315mm (15" x 2.1" x 12.4")
Bundled AccessoriesPower cord, USB Mouse
FanYes
Operating Temperature-10°C ~ 50°C (14°F ~ 122°F)
Operating Humidity10% - 90% RH
Remote AccessWeb Client
ApprovalsCE Class B, FCC Class B, BSMI, UL Listed(*)
ColorBlack
MaterialIron
Warranty2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Comments* UL certification will be available in Q1 2024.
