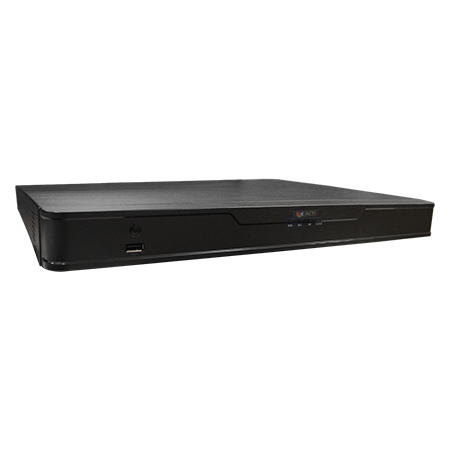

ACTi - ZNR-423 - 32-Channel 4-Bay Rackmount Standalone NVR with Recording Throughput 160 Mbps
ACTi - ZNR-423 - 32-Channel 4-Bay Rackmount Standalone NVR with Recording Throughput 160 Mbps
Part number:
ZNR-423
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

32-Channel 4-Bay Rackmount Standalone NVR with Recording Throughput 160 Mbps, Instant Playback, HDMI and VGA Port, Remote Access, Video Export via USB, 16-Channel Synchronized Playback, Plug & Play with Built-in DHCP Server, 4-Bay (Storage Disks not included), Audio, DC 12V



Features:

  • 4-bay 1U Rackmount Standalone NVR
  • Maximum Number of Video Devices: 32
  • Web Client
  • Event trigger, response and notification
  • Video export formats: MP4
Device
Product TypeStandalone NVR
Maximum Resolution8MP
Maximum Number of Video Devices32
Maximum Number of ClientsLocal: 1, Remote: 2
Supported Screen ResolutionHDMI: 3840x2160 (30Hz), 1920x1080 (60Hz/50Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz)
 HDMI/VGA: 1920x1080 (60Hz/50Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz)
License
License requiredNo
Free License32
Live View
Display Layout Mode1, 4, 6, 8, 9, 16, 25, 32
Local Live View performance2ch (up to 30 fps at 4K 3840 x 2160)
 3ch (up to 30 fps at 5MP)
 4ch (up to 30 fps at 4MP)
 5ch (up to 30 fps at 3MP)
 8ch (up to 30 fps at 2MP 1920 x 1080)
 16ch (up to 30 fps at 720p)
 32ch (up to 30 fps at D1)
 32ch (up to 15 fps at 720p)
Digital ZoomYes
Event StatusDisplay event status upon alarm or upon connection loss or recovery between server and client
Instant PlaybackInstant Playback in live view window
PTZ
PTZ ControlPTZ Control, Speed Control
Video
CompressionH.265, H.264
Audio
Audio Type2-way, Line-in, Line-out
Network
Network Protocol & ServiceIPv4/v6, TCP, UDP, DHCP Client, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTSP, SMTP, FTP, ICMP, ARP, UPnP, SNMP
Ethernet Port2 x Ethernet (10/100/1000 Base-T), RJ-45 connector
Maximum Outgoing Throughput64 Mbps
Recording
Scheduled RecordingYes
Event RecordingYes
Manual RecordingYes
Maximum Recording Throughput160 Mbps
Search & Playback
Playback ControlContinuous forward and backward playback with speeds 1x/2x/4x/8x/16x, pause, stop
Synchronized Playback16 channels
Video ExportMP4
Snapshot ExportJPEG
Event
Event Trigger[NVR]: Low disk space, Disk full, Disk not found, Failed to write storage, IP address conflict, Network loss.

 [Video Device]: Video motion detection, Tampering detection, Sound detection
Event ResponsePlay alert sound, E-mail notification with snapshots
System
Permission control128 Remote users, Customizable permissions for user groups
Client PC Operating SystemWindows 7, Windows 8, Windows 10
Server Operating SystemEmbedded Linux
USB2-Port USB 2.0, 1-Port USB 3.0
LanguageEnglish, Traditional Chinese, Japanese, Spanish
Integration
ONVIF CompliantYes, Profile S, Profile G, Profile T
Web BrowserIE 10 or newer, Google Chrome, Microsoft Edge, Firefox
Storage
Storage BaySATA, Max. 4 Disk(s) (without storage disks)
HDD Size3.5"
Maximum Recording Capacity22TB x4
RAID LevelNo
Interface
Audio InterfaceRCA Jack
Local AccessUSB Mouse
Local Display InterfaceHDMI x 1, VGA x 1
General
Power SourceDC 12V
Power Consumption15 W (DC, without HDD)
Weight3210g (7.08lb)
Dimensions(W x H x D): 440mm x 50mm x 344mm (17.3" x 2.0" x 13.5")
Rack Space: 1U
Bundled AccessoriesPower Adapter, Rack Bracket, USB Mouse
FanNo
Operating Temperature-10°C ~ 55°C (14°F ~ 131°F)
Operating Humidity10% - 90% RH
Remote AccessWeb Client
ApprovalsCE Class B, FCC Class B, BSMI, UL Listed(*)
ColorBlack
MaterialIron
Warranty2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Comments* UL certification will be available in Q1 2024.
