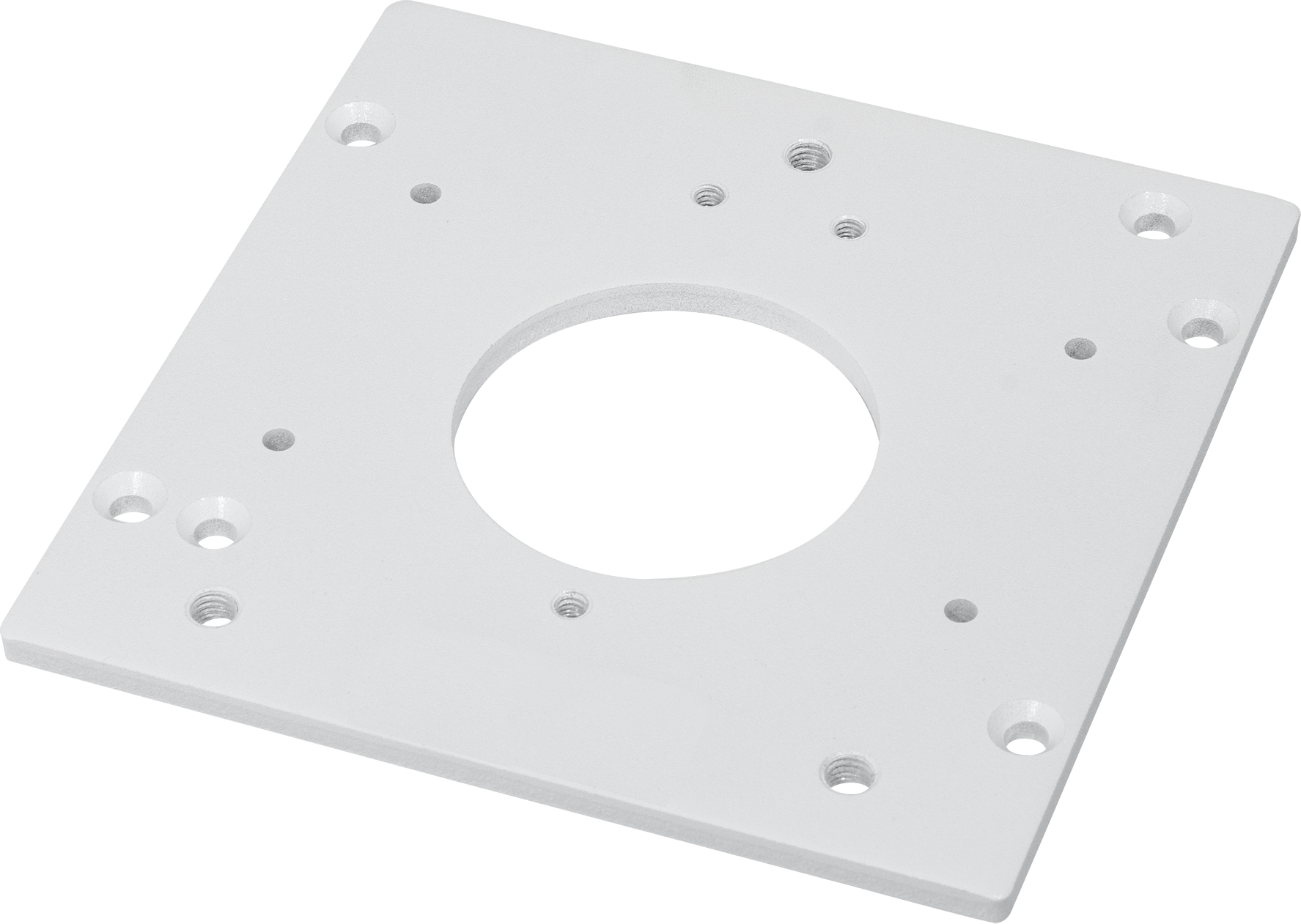

Vivotek - AM-523 - Adapter plate for 4" electrical box
Part number:
AM-523
Price:
Adapter plate for 4" electrical box.
Features
- Supported Models: IB8373-EH, IB8381, IB8381-E, IP8335H, IP8355H, IP8355EH, IP8362, IP8365H, IP8365EH, IP8371, IP8371E, IP8372, IB8369, IB8367A, IB8369A, IB8377-H, IB8379-H, IB9389-(E)H(M)(T)
- + 4" or 4 11/16" Electrical Box (Square Type)
- P/N No: 909004501G (v01) & 909004500G (v02)
- Material: Aluminum Alloy
- Color: White
- Dimensions: 120 (L) x 120 (W) x 5 (H) mm
- Weight: 196 g
| Technical Specifications | |
| Model | AM-523 |
| P/N | 909004501G (v02) |
| Material | Aluminum Alloy |
| Color | White |
| Dimensions | 120 (L) x 120 (W) x 5 (H) mm |
| Weight | 196 g |
| Box Dimension | 142 (L) x 130 (W) x 25 (H) mm (1 pc) |
| Box Weight | 232 g |
| Carton Dimension | 280 (L) x 290 (W) x 270 (H) mm (20 pcs) |
| Carton Weight | 5,078 g |
| Supported Models | IB8369, IB8367A, IB8369A, IB8373-EH, IB8377-H, IB8379-H, IB8381, IB8381-E, IP8371, IP8371E, IP8355EH, IP8355H, IP8365EH, IP8365H, IB9360-H, IB9380-H, IB9388-HT, IB9389-(E)H(M)(T), IB9389-EH(T)-V2, IB9383-H(T)V, IB9399-EHV, IB9399-EHTV, IB9389-EHV-V3, IB9389-EHTV-V3 |
Name
Description
Size
Downloads
File
Quick Installation Guide
0.3mb
File
Specification Sheet
0.3mb
