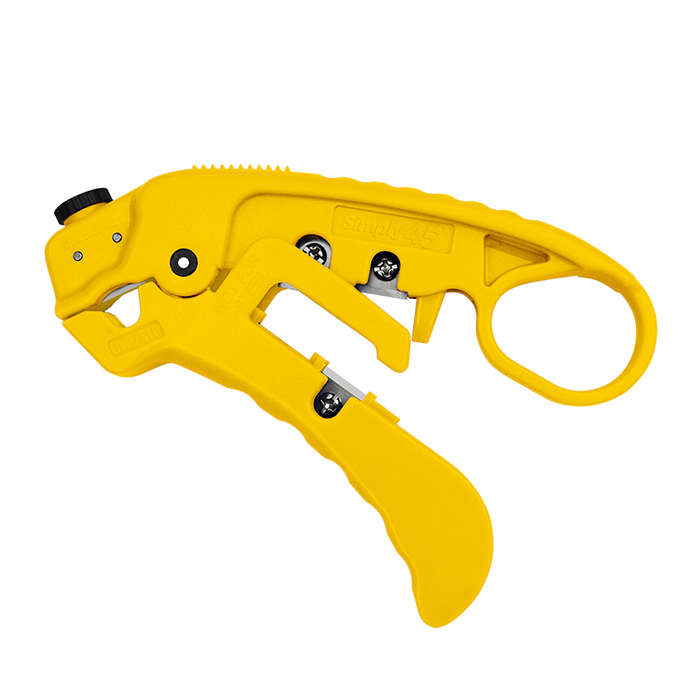

Simply 45 - S45-S01YL - Adjustable Cat7a/6a/6/5e UTP/STP Stripper Yellow, 1Ea/Blister

Part number:
S45-S01YL
Price:

Product Overview

The Simply45 S45-S01YL is a patented, adjustable yellow LAN cable stripper compatible with UTP and STP networking cables, including Cat5e through Cat7a. This versatile tool features an adjustable stripping depth knob, a built-in wire straightener comb, a wire cutter, and a flat cable stripper.


Key Configuration

  • • Cable compatibility: Cat5e, Cat6, Cat6a, Cat7, Cat7a (STP or UTP)
  • • Cable jacket types: CMP Plenum, CMR, CM, PVC, LSZH, PE, PUR, Direct Burial
  • • Material: high impact plastic; tool color: yellow
  • • Features: built-in cutter, built-in cable comb, built-in flat cable stripper, adjustable stripping blade
  • • Packaging: blister card; quantity: 1 piece


Key Features

Featuring a turning knob for precise blade adjustment, this stripper works with all UTP/STP networking, speaker, and audio cables. It is compatible with multiple jacket types, including Plenum, Riser, and Direct Burial. The tool includes a built-in wire straightener, wire cutter, and flat cable stripper to increase installation speed. It is TAA and P65 compliant; however, the cutter is not intended for steel core or coax cables.


Technical Context

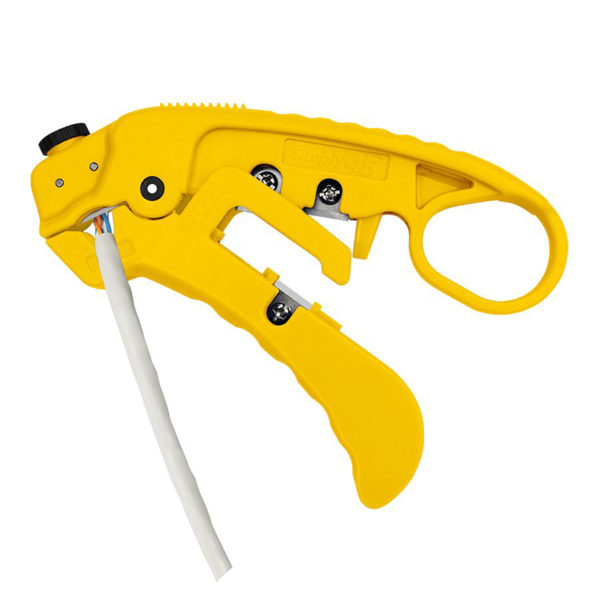

The adjustable stripping depth allows for precise jacket scoring, preventing damage to internal insulated wires. Designed for speed, it requires only one revolution followed by a gentle bend to break the jacket free. This tool is available in yellow S45-S01YL and blue S45-S01BL.



Cable CompatibilityCat5e, Cat6, Cat6a, Cat7, Cat7a, 10G (STP or UTP)
Cable TypeCMP Plenum, CMR, CM, PVC, LSZH, PE, PUR, and Direct Burial.
MaterialHigh Impact Plastic
Tool ColorYellow
FeaturesBuilt in Cutter
FeaturesBuilt In Cable Comb
FeaturesBuilt In Flat Cable Stripper
FeaturesAdjustable Stripping Blade
CompliantTAA, P65
Packaging TypeBlister Card
Package Quantity1 piece
