ELK - AEZW - Alarm Engine Z-wave Module
Part number:
AEZW
Price:
Product Overview

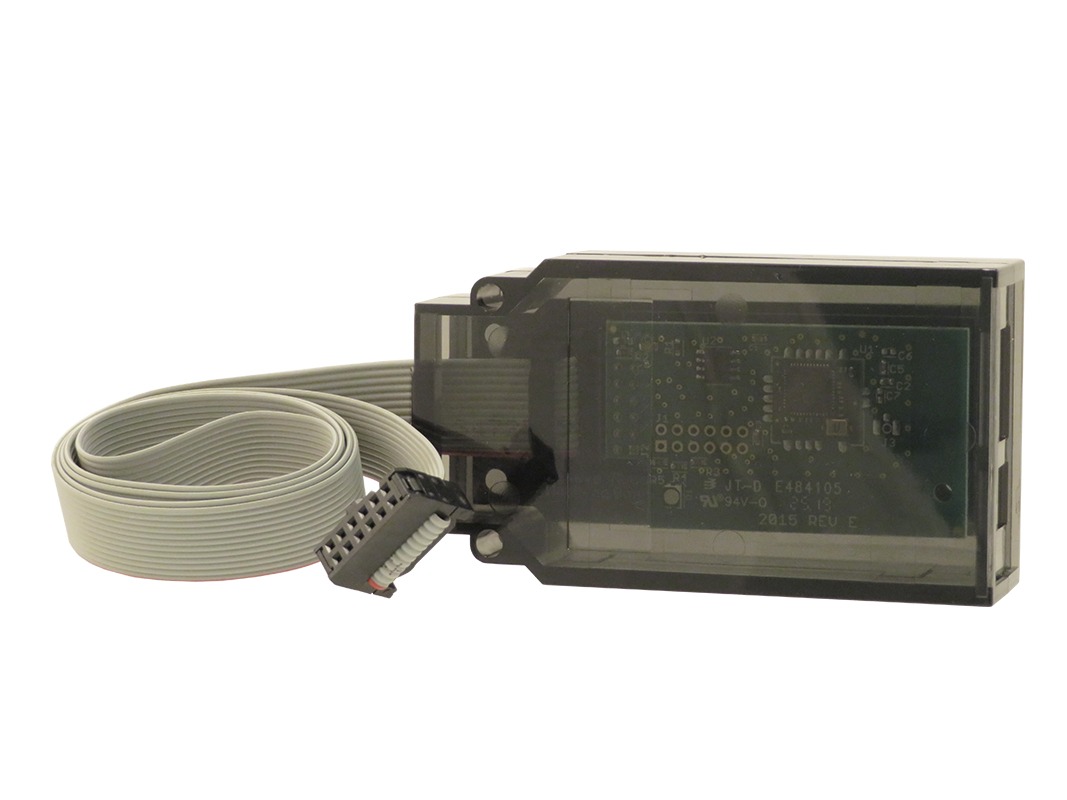

The ELK-AEZW serves as a Z-Wave Plus (500 Series) bridge for the E27 Alarm Engine, enabling seamless management of diverse smart devices like lighting, thermostats, locks, and motorized window coverings. It features a multi-color status LED for clear diagnostics and links to the E27 via a 36" ribbon cable through a specialized onboard connector.
Key Configuration
- • Technology: Z-Wave Plus (500 Series)
- • Supported devices: lights (on/off and dimmers), appliance modules, thermostats, locks, garage doors (barrier operators), window covers
- • Connection: 36" ribbon cable to dedicated connector on E27 board
- • Status indication: multi-color status LED
- • Compatibility: E27 Alarm Engine
Key Features
Allows E27 Alarm Engine to control a wide range of Z-Wave devices. Z-Wave Plus (500 Series) for improved range and faster communication. Simple connection via dedicated E27 Z-Wave connector. Includes instructions.
| Protocol | Z-Wave Plus (500 Series) – provides improved range, battery life, and bandwidth |
| Capacity | Supports up to 80 Z-Wave devices total, typically partitioned as: |
| Lighting devices | 64 (Dimmers, Switches, Outlets) |
| Smart Locks | 8 |
| Thermostats | 4 |
| Garage Door/Barrier Operators | 4 |
| Connection | 36-inch ribbon cable that plugs into a dedicated Z-Wave connector on the E27CB (Alarm Engine Control Board) |
| Current Draw | 50mA |
| Status Indicator | Multi-color LED for visual confirmation of network status and pairing activity |
Name
Description
Size
Downloads
File
Instructions
0.3mb
File
E27 Alarm Engine Flyer
0.6mb
