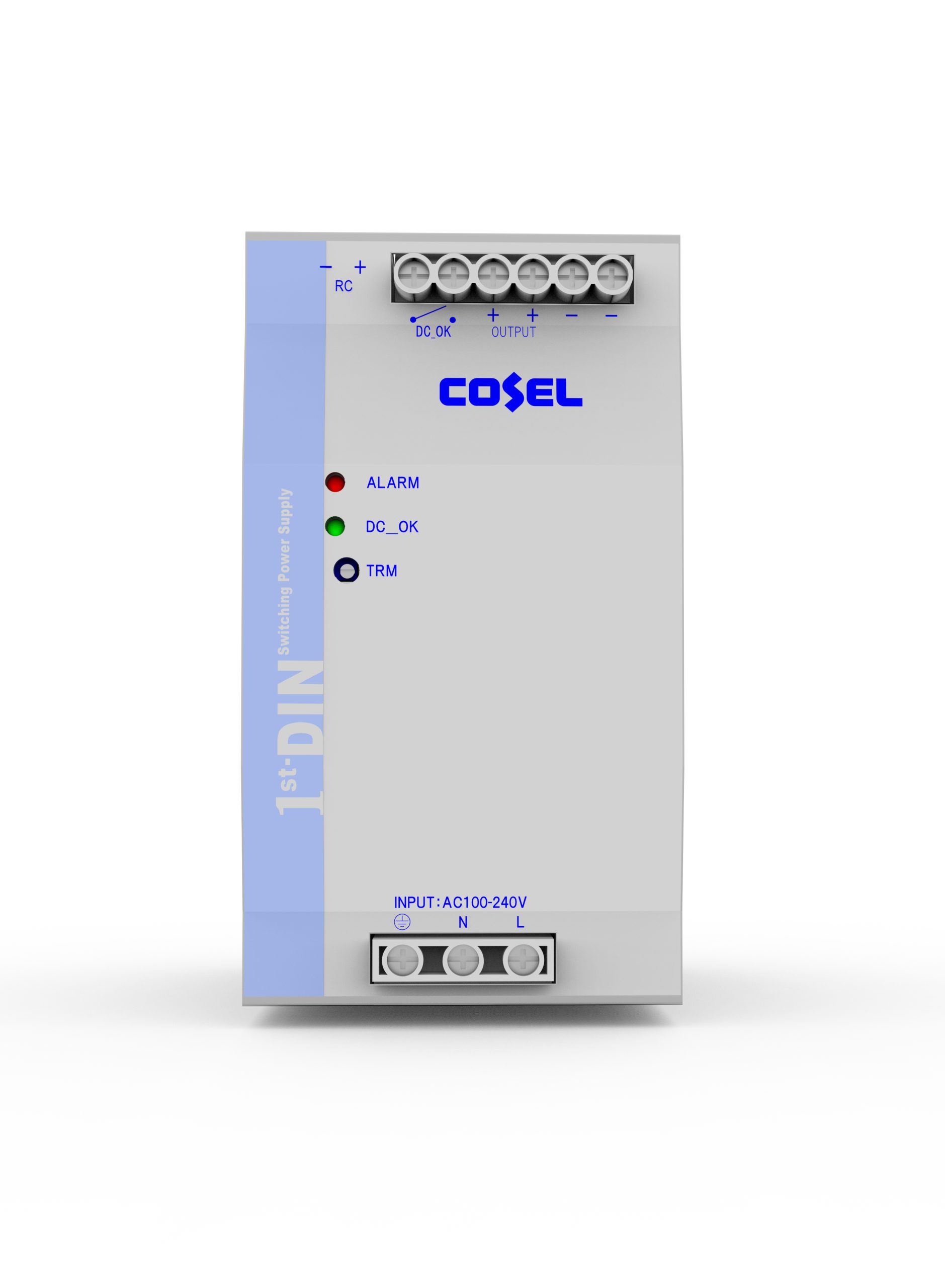

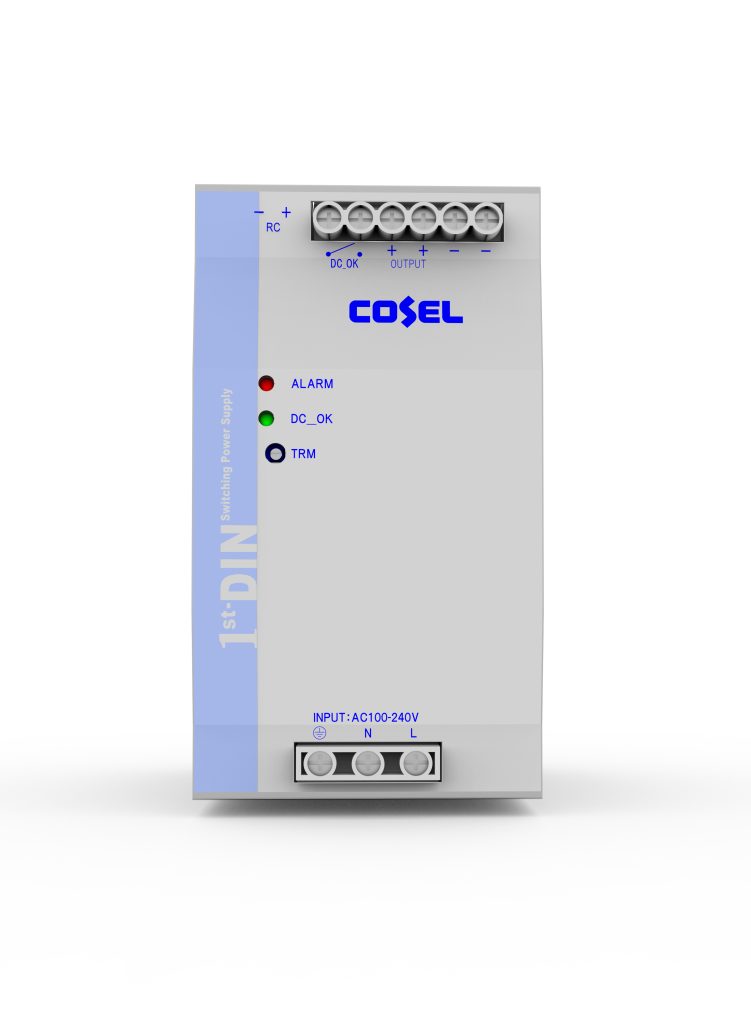

Hanwha - AT-IE048-480 - AT Power supply for Rugged switches, 480W @48Vdc, Industrial AC/DC power supply, DIN rail mount
Part number:
AT-IE048-480
Price:
AT Power supply for Rugged switches, 480W @48Vdc, Industrial AC/DC power supply, DIN rail mount
Features:
- AT Power supply for Rugged switches
- 480W @48Vdc
- Industrial AC/DC power supply

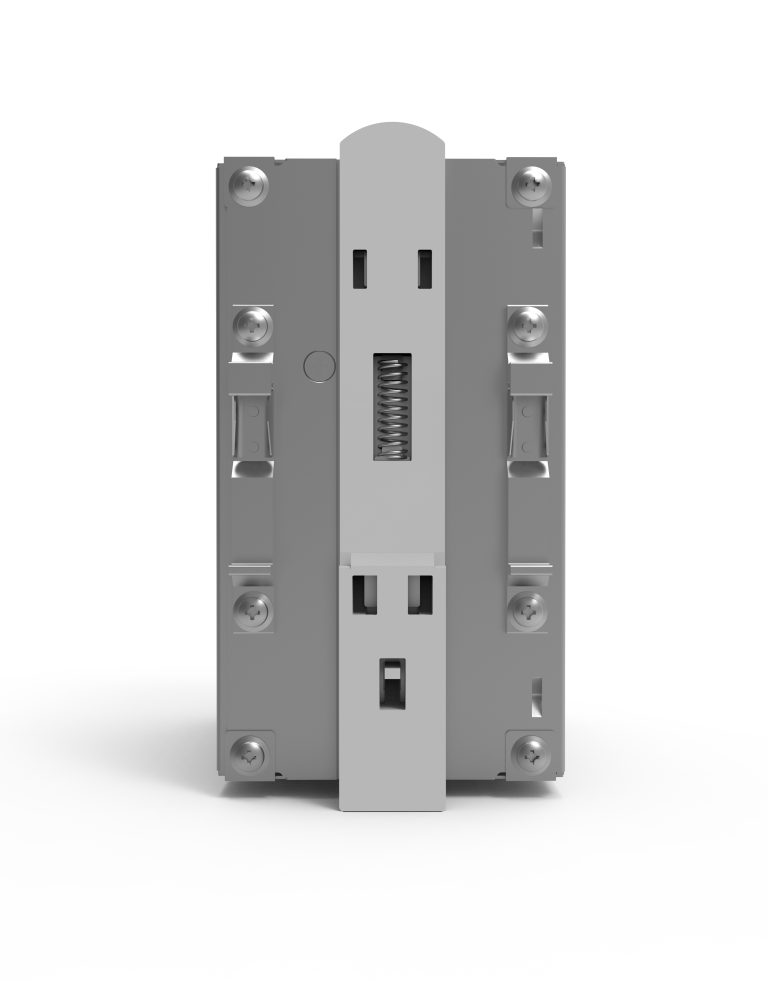

- DIN rail mount
| IE048-240 | IE048-480 | ||
| Voltage | 90 to 264 VAC 1 Φ, or 88 to 350 VDC | ||
| Current | @115VAC | 2.3A typ. | 4.6A typ. |
| @230VAC | 1.2A typ. | 2.3A typ. | |
| Frequency | 50/60Hz (45 to 60Hz) | ||
| Efficiency | @115VAC | 92 typ. | |
| @230VAC | 94 typ. | ||
| Power factor | @115VAC | 0.98 typ. | |
| @230VAC | 0.93 typ. | ||
| Inrush current | @115VAC | 20A typ. | |
| @230VAC | 40A typ.2 | ||
| Leakage Current | @100VAC | ≤0.45mA | ≤0.75mA |
| @240VAC | ≤0.75mA | ≤1.50mA | |
| Line noise tolerance | 2kV, 50 to 1,000ms, ±0~360° | ||
| IE048-240 | IE048-480 | ||
| Voltage nominal | 52VDC | 48VDC | |
| Current | 4.6A | 10A | |
| Peak current | 4.6A | 15A | |
| Line regulation | |||
| Load regulation | |||
| Ripple | 0° to 70°C | ≤240mVp-p | ≤120mVp-p |
| -25° to 0°C | ≤500mVp-p | ≤240mVp-p | |
| Io=0 - 30% | ≤750mVp-p | ≤750mVp-p | |
| Ripple noise | 0° to 70°C | ≤300mVp-p | ≤150mVp-p |
| -25° to 0°C | ≤580mVp-p | ≤300mVp-p | |
| Io=0 - 30% | ≤750mVp-p | ≤750mVp-p | |
| Temperature regulation | 0° to 70°C | ≤480mV | |
| -25° to 70°C | ≤600mV | ||
| Voltage accuracy | 0° to 70°C | ≤486mV | |
| -25° to 70°C | ≤606mV | ||
| Drift | ≤192mV | ||
| Start-up time5 | ≤750ms | ||
| Hold-up time | 20ms typ.5 | ||
| Output voltage adjustment range | 48.0 to 55.0VDC | 45.0 to 55.2VDC | |
| Output voltage setting | 52.0VDC ±1% | 48.0VDC ±1% | |
| Protection | Over current | 101% of peak current, auto recovery | |
| Over voltage | 58.1 to 68.0VDC | 57.6 to 67.2VDC | |
| Over temp | √ | ||
| IE048-240 | IE048-480 | ||
| Isolation | Input-Output | 3,000 VAC for 1 minute; cut off current:10mA | |
| Input-P.E. | 2,000 VAC for 1 minute; cut off current:10mA | ||
| Output-P.E. | 500 VAC for 1 minute; cut off current:100mA | ||
| Output-RC, DC_OK | |||
| Remote ON/OFF (RC) | √ | ||
| DC_OK contact | ≤1A @30VDC; ≤0.5A @30VAC | ||
| LED | Alarm | √ (red) | |
| DC_OK | √ (green) | ||
