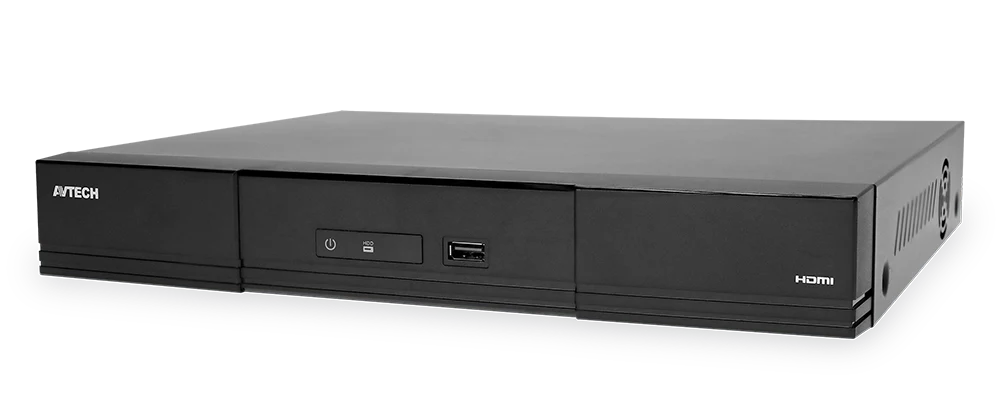

AVTech - AVH2109AX - 9CH H.265 NVR w/ PoE

This 8-channel PoE NVR features H.265 compression and 8 built-in PoE ports 100W total for streamlined 4K surveillance. It supports up to 40TB of internal storage and offers 9-channel IVS for intelligent monitoring. With EaZy Networking for simple cloud setup and ONVIF compatibility, it provides a scalable, high-definition solution with customizable alarm scenarios.

Key Configuration

• • Video input: Eight LAN ports with PoE (10/100 Mbps, IEEE 802.3af, 100 W total) and one WAN port (1000 Mbps).
• • Video output: HDMI (4K2K), VGA (720p/spot monitor) and composite (spot monitor).
• • HDD storage: choose either two 20TB SATA HDDs or one 16TB SATA HDD and an eSATA disk array.
• • Audio: One input (mic in) and one output. Alarm I/O: 4 inputs / 1 output
• • Power source: DC 54 V/3.2 A PoE power output: IEEE 802.af, 100 W total

Key Features

The AVTech 8-channel PoE NVR features efficient H.265 video and G.711 audio compression, supporting 4K recording at 270 FPS with an 80 Mbps throughput. It allows for local 9-channel live and playback display, utilizing versatile recording modes including Manual, Event, and Schedule with pre-alarm and dual-stream capabilities. The system is powered by a 9-channel Intelligent Video System and EaZy Networking for a simple three-step mobile setup via the EagleEyes app. Users can create custom alarm scenarios, receive instant Push Video or email notifications, and utilize Spot Monitor support (VGA/Composite) for dedicated event or live monitoring.

Technical Context

This NVR offers broad connectivity via ONVIF compatibility and a wide range of network protocols, including Multicast and Seamless recording. It supports up to 20 simultaneous users across web browsers, Windows CMS, and the EagleEyes mobile app, with security managed through multiple password-protected access levels.

Installation Notes

Physically, the unit measures 319.5 × 254.9 × 52 mm, weighs 2 kg, and features an internal cooling fan for stable operation between 0°C and 40°C. It is equipped with RS485, dual USB 2.0 ports, and an eSATA port for storage expansion. CE/UL certified, the system also includes a quick search function and AVTECH’s free DDNS service for easy remote management.
