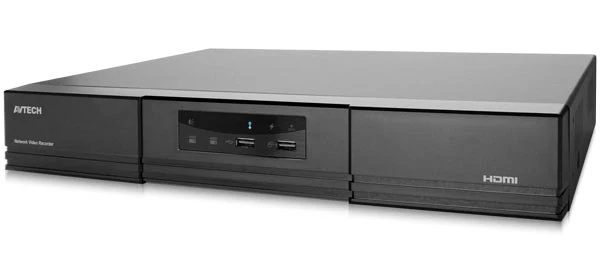

8 Channel Push Video HD Video Recorder
Features:
Cloud Service - EaZy Networking*
- EaZy Networking, the cloud service provided by AVTECH, available to connect this device to Internet automatically in
- three steps with our free mobile app, EagleEyes.
- The “Buddy” feature to share the device access permission to other people.
- Device login / out notifications reported.
One Ethernet Cable Solution (POE, Power-over-Ethernet)
Camera power supply & video transmission over one Ethernet cable to eliminate the needs of power adapters for your cameras during the whole HD surveillance system setup.
Push Video & Push Status - Active Event Notification with EagleEyes App
- Push Video to send instant notifications for an alarm event to iOS and Android mobile devices (when used with ETS IP camera series).
- Push Status to send instant notifications for system events, such as video loss or HDD data removal.
Smart Recording
High video resolution switch for events to optimize the recording efficiency of the hard disk.
Multicast
Multicast supported to enhance the transmission efficiency among all NVRs and the CMS, helping users located in different secondary control rooms to quickly get what they want to see without video lag.
HD Video Recording
- HD real-time recording brings users clear images while video recording and playback
- 1920*1080 Full HD video output service, giving the best image quality on LCD / LED monitors
Multi-platform Remote Access
- Fully compatible with iOS and Android mobile devices, and Internet Explorer on Windows operating system
- Free PC program, CMS Lite, for 32CH devices monitoring on Windows operating system
ONVIF-Compliant
In addition to AVTECH IP cameras, this NVR is also connectable to the third-party IP cameras which adopt ONVIF protocol.
External Disk Array Support for More Video Storage
eSATA interface built-in to connect a disk array (RAID 0/1/5/6/0+1/1+0) for more video storage
Free DDNS Service
Free DDNS service to configure your device to Internet easily
| Specification | |||
| Video | |||
| Video Input | 8 LAN ports | ||
| Video Output | HDMI output | ||
| Video Output Resolution | 1920 x 1080 | ||
| HDD Storage** | Two 10TB HDDs | ||
| USB Ports | Two on the front panel: one for video backup to USB flash drive, and another for NVR control via a USB mouse | ||
| IR Remote Control | YES | ||
| Ethernet | |||
| 1~8 port | 10/100Mbps with POE | ||
| Internet (WAN) port | 1000Mbps | ||
| Software | |||
| Video Compression Format | H.264 | ||
| Audio Compression Format | G711 | ||
| Video Output Resolution | 8CH | ||
| Local / Remote Playback Mode | 4CH | ||
| Single Channel Playbackh | YES | ||
| Recording Mode | Manual / Event / Alarm / Schedule | ||
| Recording Throughput | Up to 120 IPS @ 2048 x 1536, 48 Mbps Up to 120 IPS @ 1920 x 1080, 48Mbps Up to 240 IPS @ 1280 x 720, 48Mbps | ||
| Pre-alarm Recording | YES | ||
| Quick Search | Time / Event | ||
| Event Notification | Push Video / Push Status / Message Mail / Video Mail | ||
| Security | 4 user access levels with password | ||
| Remote Access | (1) Internet Explorer on Windows operating system (2) CMS Lite, 32CH CMS software for Windows operating system (3) EagleEyes on iOS & Android mobile devices | ||
| Max. Online User | 20 | ||
| Multicast | YES | ||
| EaZy Networking | Yes | ||
| General | |||
| Power Source (±10%) * | DC 48V / 2.5A | ||
| Power Consumption (±10%)*** | 12.6W (without a hard disk and POE IP camera connected) | ||
| PoE (IEEE802.3at) | |||
| Max Power per PoE Port | 30W | ||
| Total Max PoE Power Out | 240W | ||
| Operating Temperature | 10℃ ~ 40℃ (50℉~104℉) | ||
| Operating Humidity | 10% ~ 85% | ||
| Dimensions (mm)*** | 375(L) × 264.8(W) x 68(H)) | ||
| Net Weight | 3.6 Kg | ||
| Minimum PC Browsing Requirements | ‧Intel core i3 or higher, or equivalent AMD>br> ‧2GB RAM ‧AGP graphics card, Direct Draw, 32MB RAM ‧Windows 10, Windows 8, Windows 7, Windows Vista & Windows XP, DirectX 9.0 or later ‧Internet Explorer 7.x or later (Windows Edge not supported) | ||
