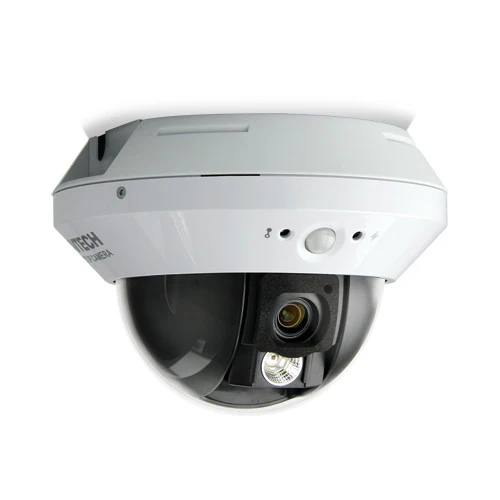

1.3MP IR Dome IP Camera Motorized Pan Dome Network Camera
Features:
- With motorized 316-degree pan, the camera can achieve a wide range of view, giving users more comprehensive control over the monitored site.
- MicroSD card support (up to 64GB) for video storage
- POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
- External alarm I/O device connection
- Standard supported to simplify system integration
- Solid Light series featuring better overexposure prevention (Advanced Smart Light Control), automatic adjustment of image brightness, and longer lifetime of LEDs
- Remote Surveillance
- Fully compatible with iOS and Android devices, and Internet Explorer on Windows operating system
- Free PC program, CMS Lite, for 32CH devices monitoring on Windows operating system -- Push Video available on your iOS and Android devices when used with Push Video NVR series.
| SPECIFICATIONS | |
| Network | |
| LAN Port | YES |
| LAN Speed | 10/100 Based-T Ethernet |
| Supported Protocols | DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP,IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS, SNMP |
| ONVIF Compatible | YES |
| Number of Online Users | 10 |
| Security | (1) Multiple user access levels with password (2) IP address filtering (3) Digest authentication |
| Remote Access | (1) Internet Explorer on Windows operating system (2) CMS Lite, 32CH CMS software for Windows operating system (3) EagleEyes on iOS & Android mobile devices |
| Video | |
| Network Compression | H.264 (Main Profile) / MJPEG |
| Video Resolution | 1280 x 1024 / 1280 x 720 / 640 x 480 / 320 x 240 |
| Frame Rate | 30fps |
| Multiple Video Streaming | 4 (H.264, MPEG4, MJPEG) |
| General | |
| Image Sensor | 1/ 4” SONY CMOS image sensor |
| Min Illumination | 0.1 Lux / F1.5, 0 Lux (LED ON) |
| Shutter Speed | 1/2 to 1/10,000 sec |
| S/N Ratio | More than 48dB (AGC off) |
| Lens | f3.8mm / F1.5 |
| Viewing Angle | 80.4° (Diagonal) / 65.4° (Horizontal) / 49.1° (Vertical) |
| Pan Angle | 316°(+/- 158°) |
| Tilt Range | 18.5°~75° (Manual) |
| IR LED | 1 Unit |
| IR Effective Distance | up to 15 meters |
| PIR Sensor | YES |
| IR Shift | YES |
| White Balance | ATW |
| AGC | Auto |
| IRIS Mode | AES |
| POE | YES (IEEE 802.3af) |
| External Alarm I/O | YES (1 in / 1 out) |
| RAM | 10MB |
| MicroSD Card Slot | YES (up to 64GB) |
| Operating Temperature | 0℃~40℃ |
| Operating Humidity | 90% or less relative humidity |
| Power Source (±10%) | 12V / 1A |
| Current Consumption (±10%) | 550mA |
| Power Consumption (±10%) | 8.25W Max (PoE) ; 8.25W Max (PoN) ; 6.6W Max (DC Adapter) |
| Net Weight (kg) | 0.683 |
| Audio | |
| Line in | YES (Mono) |
| Line out | YES (Mono) |
| Others | |
| Mobile Surveillance | iOS & Android mobile devices |
| Event Notification | FTP / Email / SMS |
| Digital Pan / Tilt / Zoom | YES |
| Motion Detection | YES |
| RTC (real-time clock) | YES |
| Minimum Web Browsing Requirements | ‧Intel core i3 or higher, or equivalent AMD ‧2GB RAM ‧AGP graphics card, Direct Draw, 32MB RAM ‧Windows 10, Windows 8, Windows 7, Windows Vista & Windows XP, DirectX 9.0 or later ‧Internet Explorer 7.x or later (Windows Edge not supported) |
