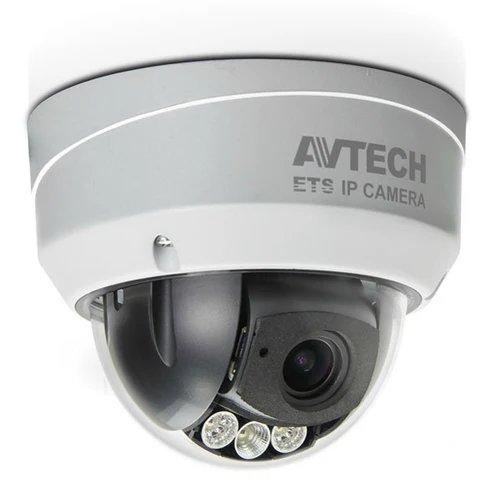

AVTECH - AVM3445 - 3MP IR Dome IP Camera
Part number:
AVM3445
Price:
3MP IR Dome IP Camera
Features:
- Equipped with a motorized vari-focal lens of f2.8 ~ 12 mm, focal length and focus adjustment could be made remotely
- MicroSD card support (up to 64GB) for video storage
- External alarm I/O device connection
- POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
- ONVIF () standard supported to simplify system integration
- Solid Light series featuring better overexposure prevention (Advanced Smart Light Control), automatic adjustment of image brightness, and longer lifetime of LEDs
- DWDR to increase image recognizability in overexposure and dark areas
- IK10 rated, vandal-resistant case to withstand attempts to open or damage the camera
- Line in / out jacks available for audio transmission
- Waterproof design on the Ethernet cable connector
- Remote Surveillance
- Fully compatible with iOS and Android devices, and Internet Explorer on Windows operating system
- Free PC program, CMS Lite, for 32CH devices monitoring on Windows operating system
- Push Video available on your iOS and Android devices when used with Push Video NVR series
| SPECIFICATIONS | |
| Network | |
| LAN Port | YES |
| LAN Speed | 10/100 Based-T Ethernet |
| Supported Protocols | DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP,IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS, SNMP |
| ONVIF Compatible | YES (Profile S) |
| Number of Online Users | 10 |
| Security | (1) Multiple user access levels with password (2) IP address filtering (3) Digest authentication |
| Remote Access | (1) Internet Explorer on Windows operating system (2) CMS Lite, 32CH CMS software for Windows operating system (3) EagleEyes on iOS & Android mobile devices |
| Video | |
| Network Compression | H.264 (Main Profile) / MJPEG |
| Video Resolution | 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240 |
| Frame Rate | 30/25fps |
| Multiple Video Streaming | 4 (H.264 /MJPEG) |
| General | |
| Image Sensor | 1/ 2.8” SONY CMOS image sensor |
| Min Illumination | 0.1 Lux / F1.4 ~ F2.8, 0 Lux (IR LED ON) |
| Shutter Speed | 1/10,000 ~ 1/7.5 (Slow shutter) |
| S/N Ratio | More than 48dB (AGC off) |
| Lens | Motorized f2.8 ~ 12mm / F1.4 ~ F2.8 |
| Viewing Angle | Wide: 94° (Horizontal) / 69° (Vertical) / 120° (Diagonal) Tele: 29° (Horizontal) / 22° (Vertical) / 36° (Diagonal) |
| IR LED | 3 Units |
| IR Effective Distance** | Default: up to 30 meters IR Enhanced Mode: up to 50 meters |
| IR Shift | YES |
| Smart Light Control | YES |
| White Balance | ATW |
| AGC | Auto |
| IRIS Mode | AES |
| DWDR | YES |
| POE | YES (IEEE 802.3af) |
| External Alarm I/O | YES (1 input / 1 output) |
| RAM | 20MB |
| MicroSD Card Slot | YES (support up to 64GB microSD card) |
| Weather-proof | IP66 |
| Vandal-proof | IK10 |
| Operating Temperature | -25℃ ~ 50℃ |
| Operating Humidity | Less than 60% relative humidity |
| Power Source (±10%) | 12V / 1.5A |
| Current Consumption (±10%) | 284mA (IR LED OFF); 528mA (IR LED ON); 796mA (IR enhanced mode ON) |
| Power Consumption (±10%) | 12.5W Max (PoE) ; 12.5W Max (PoN) ; 10.5W Max (DC Adapter) |
| Net Weight (kg) | 1.5 |
| Audio | |
| Line in | YES (Mono) |
| Line out | YES (Mono) |
| Others | |
| Mobile Surveillance | iOS & Android mobile devices |
| Motion Detection | YES |
| Event Notification | FTP / Email / SMS |
| Privacy Mask | YES |
| RTC (real-time clock) | YES |
| Digital Pan / Tilt / Zoom | YES |
| Minimum Web Browsing Requirements | ‧Intel core i3 or higher, or equivalent AMD ‧2GB RAM ‧AGP graphics card, Direct Draw, 32MB RAM ‧Windows 10, Windows 8, Windows 7, Windows Vista & Windows XP, DirectX 9.0 or later ‧Internet Explorer 7.x or later (Windows Edge not supported) |
Name
Description
Size
Downloads
File
Specifications
0.5mb
File
Manual
6.2mb
File
Quick Start
2.1mb
