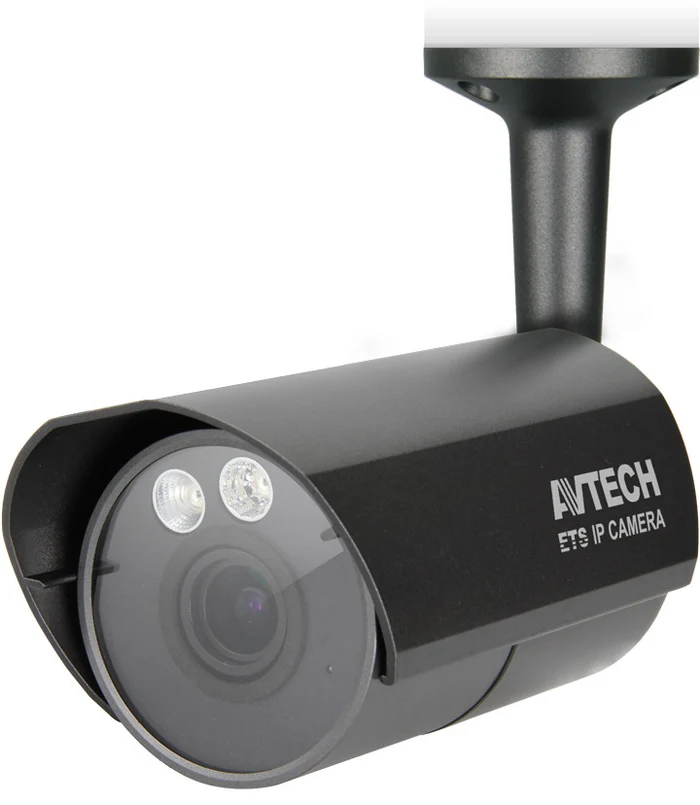

1.3 Megapixel IP Outdoor Bullet Camera w/ Varifocal 2.8-12mm Lens
Features:
- Equipped with a vari-focal lens of f2.8 ~ 12mm, suitable for various monitoring environments
- Solid Light series featuring better overexposure prevention (Advanced Smart Light Control), automatic adjustment of image brightness, and longer lifetime of LEDs
- Micro SD card support (up to 64GB) for video storage l External alarm I/O device connection
- POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce
Installation costs:
- ONVIF () standard supported to simplify system integration
- IR LED built-in for night surveillance with max effective range up to 35 meters
- Remote Surveillance
- Fully compatible with iOS and Android devices, and Internet Explorer on Windows operating system
- Free PC program, CMS Lite, for 24CH devices monitoring on Windows operating system
- Push Video available on your iOS and Android devices when used with Push Video NVR series.
| SPECIFICATIONS | |
| Network | |
| LAN Port | YES |
| LAN Speed | 10/100 Based-T Ethernet |
| Supported Protocols | DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP,IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS, SNMP |
| Number of Online Users | 10 |
| Security | (1) Multiple user access levels with password (2) IP address filtering (3) Digest authentication |
| Remote Access | (1) Internet Explorer on Windows operating system (2) CMS Lite, 24CH CMS software for Windows operating system (3) EagleEyes on iOS & Android mobile devices |
| Video | |
| Video Compression | H.264 / MPEG4 / MJPEG |
| Resolution | 1280 x 1024 / 1280 x 720 / 640 x 480 / 320 x 240 |
| Frame Rate | 30fps |
| Multiple Video Streaming | 3 (H.264, MJPEG, MPEG4) |
| General | |
| Image Sensor | 1/4" SONY CMOS image sensor |
| Min Illumination | 1 Lux / F1.4, 0 Lux (LED ON) |
| S/N Ratio | More than 48dB (AGC off) |
| Electronic Shutter | 1/2 to 1/10,000 sec |
| Lens | f2.8 ~ 12mm / F1.4 ~ F2.8 |
| Viewing Angle | Wide: 103° (Horizontal) / 54° (Vertical) / 122° (Diagonal) Tele: 31° (Horizontal) / 17° (Vertical) / 36° (Diagonal) |
| IR LED | 2 Units |
| IR Effective Range ** | Default : up to 25 meters ; IR Enhanced Mode : up to 35 meters |
| IR Shift | YES |
| IRIS Mode | AES |
| White Balance | ATW |
| AGC | Auto |
| Micro SD Card Slot | YES(up to 64GB) |
| RAM | 10MB |
| IP Rating | IP66 |
| Startup Temperature | 0℃~40℃ |
| Operating Temperature | -25℃ ~ 50℃ |
| Operating Humidity | 90% or less relative humidity |
| Power Source (±10%) | 12V / 1.5A |
| Current Consumption (±10%) | 11W (IR On) |
| Power Consumption (±10%) | 13.8W (PoE) ; 13.8W (PoN) ; 11W (IR On) (DC Adapter) |
| Net Weight (Kg) | 0.92 |
| Others | |
| Mobile Surveillance | iPad / iPhone / Android mobile device |
| ONVIF Compatible | YES (Profile S) |
| POE (Power-over-Ethernet) | YES (IEEE 802.3af) |
| Event Notification | FTP / Email / SMS |
| External Alarm Device Connection | YES |
| Digital Pan / Tilt / Zoom | YES |
| Motion Detection | YES |
| RTC (real-time clock) | YES |
| Minimum Web Browsing Requirements | ‧Intel core i3 or higher, or equivalent AMD ‧2GB RAM ‧AGP graphics card, Direct Draw, 32MB RAM ‧Windows 10, Windows 8, Windows 7, Windows Vista & Windows XP, DirectX 9.0 or later ‧Internet Explorer 7.x or later (Windows Edge not supported) |
