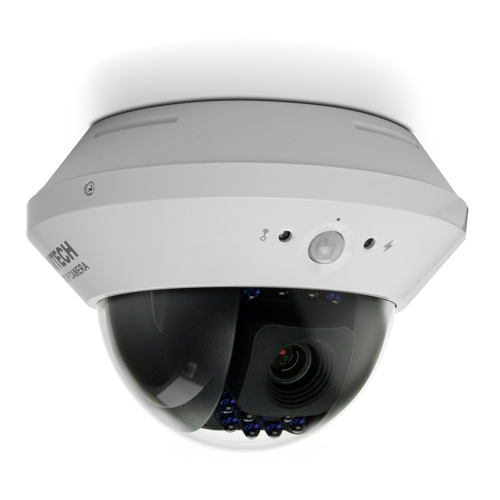

AVTECH - AVM428 - 2 Megapixel IR Dome Network Camera
Part number:
AVM428
Price:
2 Megapixel IR Dome Network Camera
Features:
- 3-axis mechanism for flexible ceiling and wall-mount installation
- MicroSD card (up to 64GB) support for video storage
- Microphone built-in for audio recording
- POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
- External alarm I/O device connection
- ONVIF ( ) standard supported to simplify system integration
- Remote Surveillance
| Specifications | |
| Network | |
| LAN Port | YES |
| LAN Speed | 10/100 Based-T Ethernet |
| Supported Protocols | DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP,IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS |
| Number of Online Users | 10 |
| Security | (1) Multiple user access levels with password |
| (2) IP address filtering | |
| (3) Digest authentication | |
| Remote Access | (1) Internet Explorer on Windows operating system |
| (2) EagleEyes on iPhone, iPad & Android mobile devices | |
| Video | |
| Video Compression | H.264 / MPEG4 / MJPEG |
| Resolution | 1080P to QVGA |
| Frame Rate | 30fps |
| Multiple Video Streaming | YES |
| General | |
| Image Sensor | 1/2.9" SONY H.R. image sensor |
| Min. Illumination | 0.1 Lux / F1.5, 0 Lux (LED ON) |
| S/N Ratio | More than 48dB (AGC off) |
| Electronic Shutter | 1/2 to 1/10,000 sec |
| Lens | f3.8mm / F1.5 |
| Lens Angle | 73.2°(Horizontal) / 47.4°(Vertical) / 85.4°(Diagonal) |
| IR LED | 12 units |
| IR Effective Distance | Up to 10 meters |
| PIR Sensor | Detection Range 76° wide angle with up to 5m long distance at 2.5m height (under 30°C) |
| IR Shift | YES |
| IRIS Mode | AES |
| White Balance | ATW |
| AGC | Auto |
| Operating Temperature | 0℃~40℃ |
| Power Source (±10%) | 12V / 1A |
| Others | |
| Mobile Surveillance | iPad / iPhone / Android mobile device |
| ONVIF Compatible | YES |
| POE (Power-over-Ethernet) | YES (IEEE 802.3af) |
| Event Notification | FTP / Email / SMS |
| External Alarm Device Connection | YES |
| Digital Pan / Tilt / Zoom | YES |
| Motion Detection | YES |
| RTC (real-time clock) | YES |
| Minimum Web Browsing Requirements | ‧Pentium 4 CPU 1.3 GHz or higher, or equivalent AMD |
| ‧256 MB RAM | |
| ‧AGP graphics card, Direct Draw, 32MB RAM | |
| ‧Windows 7, Vista & XP, DirectX 9.0 or later | |
| ‧Internet Explorer 7.x or later | |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
Dimensions
0.5mb
File
Installation Sticker
0.2mb
