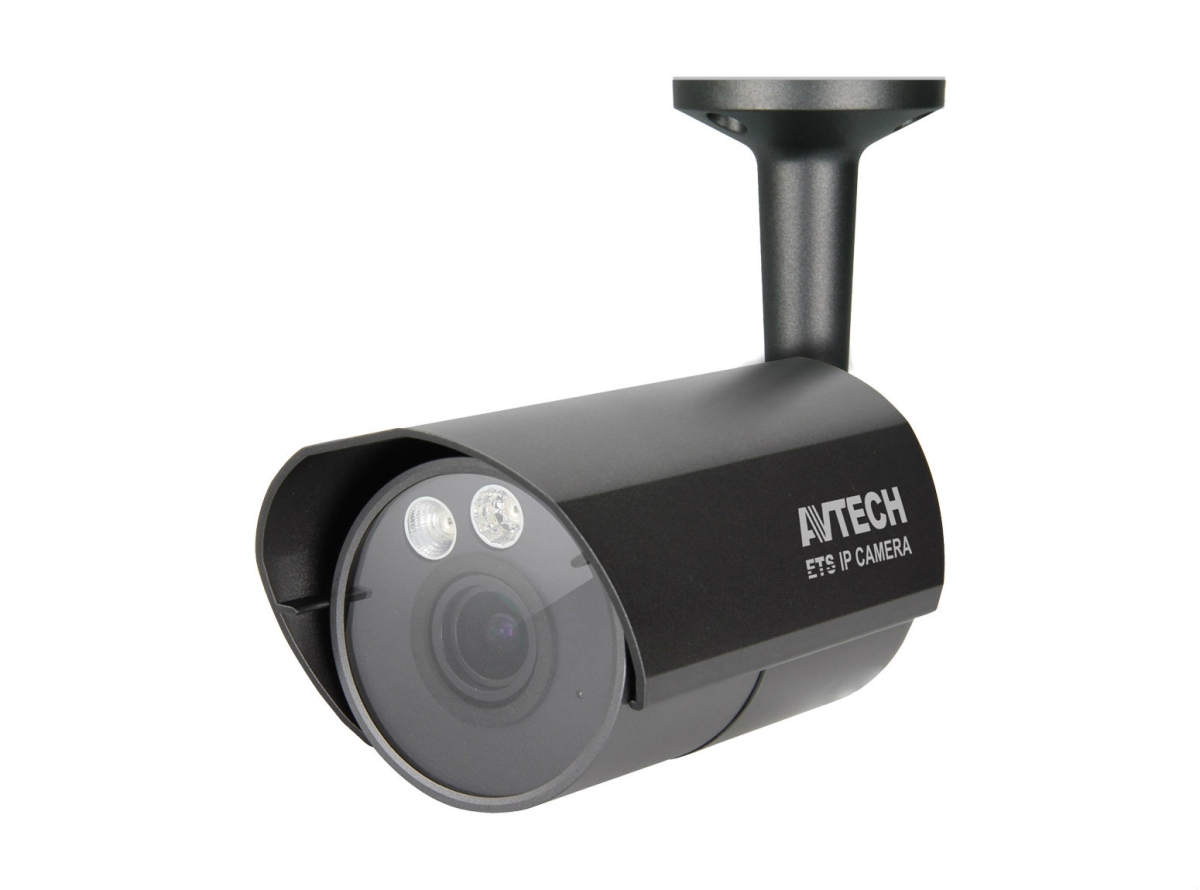

AVTECH - AVM459 - 2 Megapixel IR Bullet Network Camera w/ 2.8-12mm Varifocal Lens
Part number:
AVM459
Price:
2 Megapixel IR Bullet Network Camera w/ 2.8-12mm Varifocal Lens
Features:
- Equipped with a vari-focal lens of f2.8 ~ 12mm, suitable for various monitoring environments
- Solid Light series featuring better overexposure prevention (Advanced Smart Light Control), automatic adjustment of image brightness, and longer lifetime of LEDs
- POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
- ONVIF standard supported to simplify system integration
- IR LED built-in for night surveillance with max effective range up to 50 meters
| SPECIFICATIONS | |
| Network | |
| LAN Port | YES |
| LAN Speed | 10/100 Based-T Ethernet |
| Supported Protocols | DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP,IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS |
| Number of Online Users | 10 |
| Security | (1) Multiple user access levels with password |
| (2)IP address filtering | |
| (3) Digest authentication | |
| Remote Access | (1) Internet Explorer on Windows operating system |
| (2) EagleEyes on iPhone, iPad & Android mobile devices | |
| Video | |
| Video Compression | H.264 / MPEG4 / MJPEG |
| Resolution | 1080P, SXGA, 720P, VGA, QVGA |
| Frame Rate | 30fps |
| Multiple Video Streaming | 3 (H.264, MJPEG, MPEG4) |
| General | |
| Image Sensor | 1/2.9" SONY CMOS image sensor |
| Min Illumination | 1 Lux / F1.4, 0 Lux (LED ON) |
| S/N Ratio | More than 48dB (AGC off) |
| Electronic Shutter | 1/2 to 1/10,000 sec |
| Lens | f2.8 ~ 12mm / F1.4 ~ F2.8 |
| Viewing Angle | Wide: 109° (Horizontal) / 76° (Vertical) / 116° (Diagonal) |
| Tele: 24° (Horizontal) / 13.5° (Vertical) / 27°(Diagonal) | |
| IR LED | 2 Units |
| IR Effective Range | Default : up to 25M |
| IR Enhanced Mode : up to 35M | |
| IR Enhanced Mode + Slow Shutter 1/10 sec : up to 50M | |
| IR Shift | YES |
| IRIS Mode | AES |
| White Balance | ATW |
| AGC | Auto |
| IP Rating | IP66 |
| Operating Temperature | -20℃~40℃ |
| Power Source (±10%) | 12V / 1.5A |
| Current Consumption (±10%) | 9.5W |
| Others | |
| Mobile Surveillance | iPad / iPhone / Android mobile device |
| ONVIF Compatible | YES |
| POE (Power-over-Ethernet) | YES (IEEE 802.3af) |
| Event Notification | FTP / Email / SMS |
| External Alarm Device Connection | YES |
| Digital Pan / Tilt / Zoom | YES |
| Motion Detection | YES |
| RTC (real-time clock) | YES |
| Minimum Web Browsing Requirements | Intel core i3 or higher, or equivalent AMD 2GB RAM AGP graphics card, Direct Draw, 32MB RAM Windows 7, Vista & XP, DirectX 9.0 or later Internet Explorer 7.x or later |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
