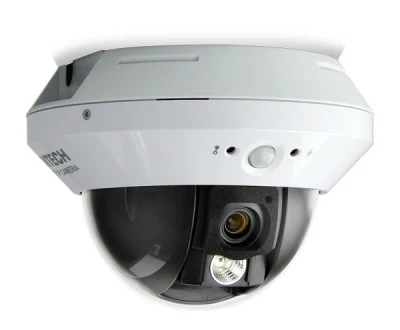

AVTECH - AVM521A - 2 Megapixel WDR Dome IP Camera
Part number:
AVM521A
Price:
2 Megapixel WDR Dome IP Camera
Features:
- 3-axis mechanism for flexible ceiling and wall-mount installation
- MicroSD card support (up to 64GB) for video storage
- POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
- External alarm I/O device connection
- WDR to increase image recognizability in overexposure and dark areas
- Solid Light series featuring better overexposure prevention (Advanced Smart Light Control), automatic adjustment of image brightness, and longer lifetime of LEDs
- Smart Light Control to dynamically adjust image performance for clear and accurate images
| Specifications | |
| Network | |
| LAN Port | YES |
| LAN Speed | 10/100 Based-T Ethernet |
| Supported Protocols | DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP,IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS, SNMP |
| ONVIF Compatible | YES (Profile S) |
| Number of Online Users | 10 |
| Security | (1) Multiple user access levels with password |
| (2) IP address filtering | |
| (3) Digest authentication | |
| Remote Access | (1) Internet Explorer on Windows operating system |
| (2) 16CH Video Viewer on Windows & MAC operating system | |
| (3) EagleEyes on iPhone, iPad & Android mobile devices | |
| Network Compression | H.264 (Main Profile) / MJPEG |
| Frame Rate | 30/25fps |
| Multiple Video Streaming | 4 (H.264, MJPEG) |
| (Encode Modes, IPS, Resolution) | |
| Camera | |
| Image Sensor | 1/ 2.8” SONY CMOS image sensor |
| Video Resolution | 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240 |
| Min Illumination | 0.1 Lux / F1.5, 0 Lux (LED ON) |
| Shutter Speed | 1/10,000 ~ 1/7.5 (Slow shutter) |
| S/N Ratio | More than 48dB (AGC off) |
| Lens | f3.8mm / F1.5 |
| Viewing Angle | 83.2° (Diagonal) / 73.2° (Horizontal) / 42.8° (Vertical) |
| IR LED | 1 Unit |
| IR Effective Distance** | Default: up to 15 meters |
| PIR Sensor | Detection Range 76° wide angle with up to 5m long distance at 2.5m height (under 30℃) |
| IR Shift | YES |
| Smart Light Control | YES |
| White Balance | ATW |
| WDR | YES |
| General | |
| AGC | Auto |
| IRIS Mode | AES |
| POE | YES (IEEE 802.3af) |
| External Alarm I/O | YES (1 in / 1 out) |
| RAM | 20MB |
| Line in / out | YES |
| MicroSD Card Slot | YES (up to 64GB) |
| Privacy Mask | YES |
| Operating Temperature | 0℃~40℃ |
| Operating Humidity | 90% or less relative humidity |
| Power Source (±10%) | 12V / 1A |
| Current Consumption (±10%) | 400mA |
| Power Consumption (±10%) | 6W (PoE) ; 6W (PoN) ; 4.8W (DC Adapter) |
| Net Weight (kg) | 0.45 |
| Others | |
| Mobile Surveillance | iOS & Android mobile devices |
| Event Notification | FTP / Email / SMS |
| 3-Axis | YES |
| Digital Pan / Tilt / Zoom | YES |
| Motion Detection | YES |
| RTC (real-time clock) | YES |
| Minimum Web Browsing Requirements | ‧Intel core i3 or higher, or equivalent AMD |
| ‧2GB RAM | |
| ‧AGP graphics card, Direct Draw, 32MB RAM | |
| ‧ Windows 8, Windows 7, Windows Vista & Windows XP, DirectX | |
| 9.0 or later | |
| ‧Internet Explorer 7.x or later | |
