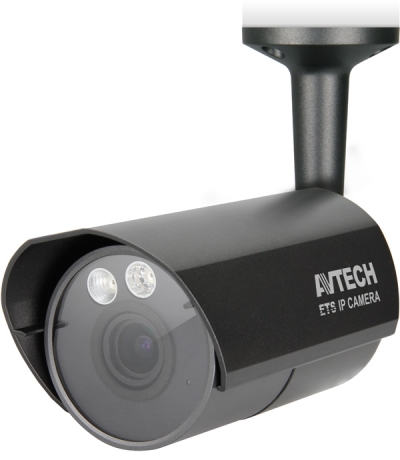

AVTECH - AVM552A - 2 Megapixel WDR Bullet IP Camera
Part number:
AVM552A
Price:
2 Megapixel WDR Bullet IP Camera
Features:
- Equipped with a vari-focal lens of f2.8 ~ 12 mm, suitable for various monitoring environments
- MicroSD card support for video storage
- External alarm I/O device connection
- POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
- ONVIF standard supported to simplify system integration
- IR LED built-in for night surveillance with max effective range up to 25 meters
- WDR to increase image recognizability in overexposure and dark areas
- Solid Light series featuring better overexposure prevention (Advanced Smart Light Control), automatic adjustment of image brightness, and longer lifetime of LEDs
- Smart Light Control to dynamically adjust image performance for clear and accurate images
| Specifications | |
| Network | |
| LAN Port | YES |
| LAN Speed | 10/100 Based-T Ethernet |
| Supported Protocols | DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP,IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS |
| ONVIF Compatible | YES (Profile S) |
| Number of Online Users | 10 |
| Security | (1) Multiple user access levels with password |
| (2) IP address filtering | |
| (3) Digest authentication | |
| Remote Access | (1) Internet Explorer on Windows operating system |
| (2) 16CH Video Viewer on Windows & MAC operating system | |
| (3) EagleEyes on iPhone, iPad & Android mobile devices | |
| Video | |
| Video Compression | H.264 (Main Profile) / MJPEG |
| Resolution | 1080P to CIF |
| Frame Rate | 30/25 fps |
| Multiple Video Streaming | 4 (H.264, MJPEG) |
| Image Sensor | 1/ 2.9” SONY CMOS image sensor |
| General | |
| Min Illumination | 0.1 Lux / F1.4(Wide)~F2.8(Tele), 0 Lux (LED ON) |
| Electronic Shutter | 1/10,000 ~ 1/7.5 (Slow shutter) |
| S/N Ratio | More than 48dB (AGC off) |
| Lens | f2.8 ~ 12mm / F1.4 ~ F2.8 |
| Viewing Angle | Wide: 97.4° (Horizontal) / 58.1° (Vertical) / 111.7° (Diagonal) Tele: 27.1° (Horizontal) / 15.2° (Vertical) / 31.1°(Diagonal) |
| IR LED | 2 Units |
| IR Effective Range** | Default: up to 25 meters ; IR Enhanced Mode: up to 35 meters |
| IR Shift | YES |
| Smart Light Control | YES |
| White Balance | ATW |
| AGC | Auto |
| IRIS Mode | AES |
| WDR | YES |
| MicroSD Card Slot | YES |
| IP Rating | IP66 |
| Operating Temperature | -20℃~40℃ |
| Power Source (±10%) | 12V / 1A |
| Current Consumption (±10%) | 700mA |
| Power Consumption (±10%) | 10.5W (PoE) ; 10.5W (PoN) ; 8.4W (DC Adapter) |
| Others | |
| Mobile Surveillance | iOS & Android |
| POE (Power-over-Ethernet) | YES (IEEE 802.3af) |
| Event Notification | FTP / Email / SMS |
| External Alarm Device Connection | YES |
| Digital Pan / Tilt / Zoom | YES |
| Motion Detection | YES |
| RTC (real-time clock) | YES |
| Minimum Web Browsing Requirements | ‧Intel core i3 or higher, or equivalent AMD |
| ‧2GB RAM | |
| ‧AGP graphics card, Direct Draw, 32MB RAM | |
| ‧Windows 7, Vista & XP, DirectX 9.0 or later | |
| ‧Internet Explorer 7.x or later | |
