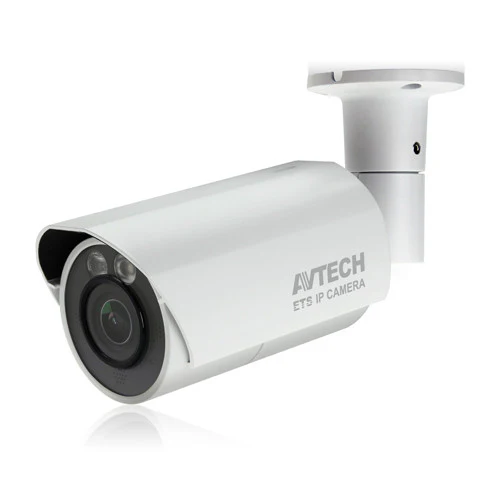

AVTECH - AVM553-AC - 2MP IR Bullet IP Camera Motorized Vari-focal Lens of f2.8 - 12 mm
Part number:
AVM553-AC
Price:
2MP IR Bullet IP Camera motorized vari-focal lens of f2.8 - 12 mm
Features:
- Equipped with a motorized vari-focal lens of f2.8 ~ 12 mm
- External alarm I/O device connection
- POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
- ONVIF standard supported to simplify system integration
- IR effective range up to 35 meters for night surveillance
- WDR to increase image recognizability in overexposure and dark areas
- Waterproof design on the Ethernet cable connector
| Specifications | |
| Network Compression | H.264 (Main Profile) / MJPEG |
| Video Resolution | 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240 |
| Frame Rate | 30fps |
| Multiple Video Streaming | 4 (H.264 /MJPEG) |
| Image Sensor | 1/2.8" SONY CMOS image sensor |
| Min Illumination | 0.1 Lux / F1.4(Wide)~F2.8(Tele), 0 Lux (IR LED ON) |
| Shutter Speed | 1/10,000 ~ 1/7.5 (Slow shutter) |
| S/N Ratio | More than 48dB (AGC off) |
| Lens | f2.8 ~ 12mm / F1.4 ~ F2.8 |
| Viewing Angle | Wide: 103° (Horizontal) / 54° (Vertical) / 122° (Diagonal) |
| Tele: 31° (Horizontal) / 17° (Vertical) / 36°(Diagonal) | |
| IR LED | 2 Units |
| IR Effective Distance | Default : up to 25 meters |
| IR Enhanced Mode : up to 35 meters | |
| IR Shift | YES |
| Smart Light Control | YES |
| White Balance | ATW |
| AGC | Auto |
| IRIS Mode | AES |
| WDR | YES |
| POE | YES (IEEE 802.3af) |
| External Alarm I/O | YES (1 input / 1 output) |
| RAM | 20MB |
| MicroSD Card Slot | YES (up to 64GB) |
| Weather-proof | IP66 |
| Operating Temperature | -25℃ ~ 50℃ |
| Operating Humidity | 90% or less relative humidity |
| Power Source (±10%) | 12V / 1A |
| Current Consumption (±10%) | 315mA (LED off) / 500mA (LED on) |
| Power Consumption (±10%) | 8W (PoE); 8W (PoN) ; 7W (DC Adapter) |
| Net Weight (kg) | 1.4 |
