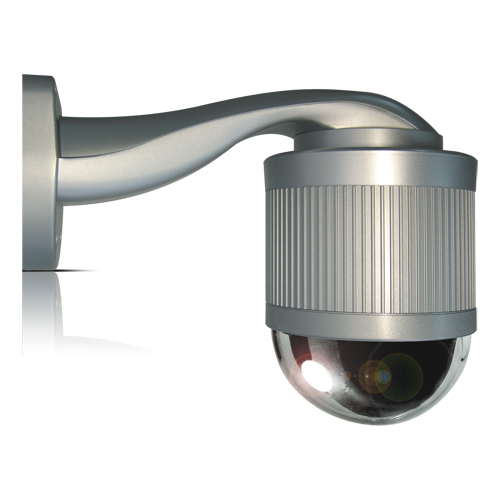

AVTECH - AVM571+ Wall Bracket - 2MP 10X PTZ IP Camera
Part number:
AVM571-Wall-Bracket
Price:
2MP 10X PTZ IP Camera
Features:
- Zoom lens of f6.0 ~ 60mm with 10x optical zoom, 16x digital zoom and auto focus, suitable for various monitoring environments
- External alarm I/O device connection
- POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
- ONVIF ( ) standard supported to simplify system integration
- WDR to increase image recognizability in overexposure and dark areas
- Remote Surveillance -- Fully compatible with iOS and Android devices, and Internet Explorer on Windows operating system -- Push Video available on your iOS and Android devices when used with Push Video NVR series
- Hot Point support to quickly move the camera to the specified point remotely
- Up to 16 preset points & four sequence groups programmable for multiple points monitoring, and Auto Scan
| Specifications | |
| Network | |
| LAN Port | YES |
| LAN Speed | 10/100 Based-T Ethernet |
Supported Protocols | DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP,IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS, SNMP |
| ONVIF Compatible | YES (Profile S) |
| Number of Online Users | 10 |
Security |
|
Remote Access |
|
| Video | |
| Network Compression | H.264 (Main Profile) / MJPEG |
| Video Resolution | 1080P to CIF |
| Frame Rate | 30 fps |
| Multiple Video Streaming | 4 (H.264, MJPEG) |
| General | |
| Image Sensor | 1/2.8" Sony CMOS image sensor |
| Min Illumination | 0.1 Lux / F2.0 |
| Shutter Speed | 1 / 60 (1/50) to 1 / 100,000 sec. |
| S/N Ratio | More than 48dB (AGC off) |
| Lens | f6.0 ~ 60.0mm / F2.0 (Wide) ~ F2.8 (Tele) |
Viewing Angle | 1X: 47.3° / 10X: 5.3° (Horizontal) / 1X: 27.5° / 10X: 3.0° (Vertical) / 1X: 53.5° / 10X: 6.1°(Diagonal) |
White Balance | Auto / Indoor 1 / Indoor 2 / Sun / Cloudy * Indoor1 = 9000K; Indoor2 = 3000K; Sun = 5500K; Cloudy = 7000K |
| AGC | YES |
| IRIS Mode | YES |
| Sharpness | YES |
| WDR | YES |
| POE | YES (IEEE 802.3af) |
| External Alarm I/O | YES (1 input / 1 output) |
| RAM | 20MB |
| IP Rating (weather-proof) | IP67 |
| Operating Temperature | -25℃ ~ 50℃ |
| Operating Humidity | 90% or less relative humidity |
| Power Source (±10%) | DC12V, 1A |
| Current consumption (±10%) | 750mA |
| Power Consumption (±10%) | 11.25W (PoE) ; 11.25W (PoN) ; 9W (DC Adapter) |
| Net Weight (kg) | 2.3 |
| PTZ Mechanism | |
| Pan Range | 360° |
| Max. Pan Speed | 120º/s |
| Tilt Range | 90° |
| Max. Tilt Speed | 90º/s |
| Zoom Ratio | 10X Optical Zoom |
| Max. Zoom Speed | Approx. 3s (Tele ~ Wide) |
| Preset Points | Up to 16 preset points |
Sequence Group |
|
| Others | |
| Mobile Surveillance | iOS & Android |
| Event Notification | FTP / Email / SMS |
| Digital Pan / Tilt / Zoom | YES |
| Reset Default | YES |
| Motion Detection | YES |
| RTC (real-time clock) | YES |
Minimum Web Browsing Requirements |
|
