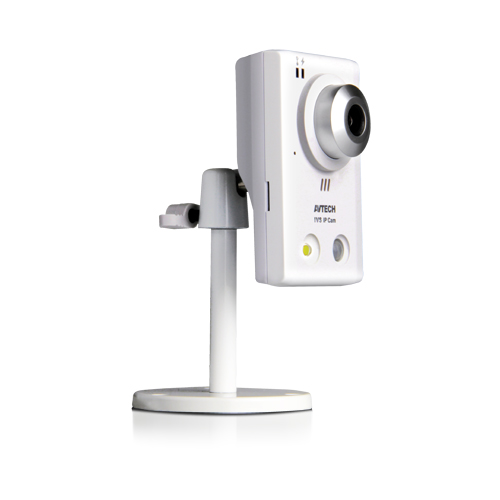

AVTECH - AVN80X - 1.3 Megapixel PUSH Video Cube Camera
Part number:
AVN80X
Price:
1.3 Megapixel PUSH Video Cube Camera
Features:
- Easy network setup with your iPhone / iPad / Android devices
- 1.3 Megapixel live MOS sensor with HDTV 720p quality, allowing users to notice minor details more easily
- Micro SD card support for video storage
- Push Video support to send an event notification to your iPad, iPhone and Android mobile device immediately once the specified event type is triggered, and play video recording once you confirm the receipt.
- White LED built-in to illuminate the scene manually, scheduled by a timer, or triggered by a motion, an alarm, or an audio event
- External alarm I/O device connection
- Microphone & speaker built-in for two-way audio transmission
- Remote Surveillance
- Fully compatible with iOS and Android devices, and Internet Explorer on Windows operating system
- Free PC program, CMS Lite, for 24CH devices monitoring on Windows operating system
- Push Video available on your iOS and Android devices when used with Push Video NVR series.
| Specifications | |
| Network Compression | H.264 / MPEG4 / MJPEG |
| Multiple Video Streaming (Encode Modes, IPS, Resolution) | 3 (H.264, MJPEG, MPEG4) |
| LAN Port | YES |
| LAN Speed | 10/100 Based-T Ethernet |
| Supported Protocols | DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, UPnP |
| Frame Rate | NTSC:30, PAL:25 |
| Number of Online Users | 10 |
| Security | Multiple user access levels with password |
Remote Access |
|
| Image Sensor | 1/3" Live MOS image sensor |
| Video Resolution | SXGA, SXVGA, 720P, VGA, QVGA |
| Min Illumination | 0.1 Lux / F1.5, 0 Lux (LED ON) |
| Shutter Speed | 1 / 60 (1/50) to 1 / 100,000 sec. |
| S/N Ratio | More than 48dB (AGC off) |
| Lens | f3.8mm / F1.5 |
| Viewing Angle | 80.4° (Diagonal) / 65.4° (Horizontal) / 49.9° (Vertical) |
| White LED | YES (1W, 10 meters) |
| White Balance | ATW |
| AGC | Auto |
| IRIS Mode | AES |
| PIR Sensor | Detection Range 76° wide angle with up to 6m long distance at 2m height (under 30°C) |
| Micro SD Card Slot | YES |
| External Alarm I/O | YES |
| RAM | 10MB |
| Microphone | YES |
| Speaker | YES |
| Power Source (±10%) | 5V / 2A |
| Operating Temperature | 0℃~40℃ |
| Operating Humidity | 90% or less relative humidity |
| Net Weight (kg) | 0.3 |
| Mobile Surveillance | iPad / iPhone / Android mobile device |
| Push Video | YES |
| Audio Detection | YES |
| RTC (real-time clock) | YES |
| Motion Detection | YES |
| Digital Pan / Tilt / Zoom | YES |
| Event Notification | FTP / Email / Push Video |
Minimum Web Browsing Requirements | ‧Intel core i3 or higher, or equivalent AMD ‧2GB RAM ‧AGP graphics card, Direct Draw, 32MB RAM ‧Windows 10, Windows 8, Windows 7, Windows Vista & Windows XP, DirectX 9.0 or later ‧Internet Explorer 7.x or later (Windows Edge not supported) |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
File
User Manual
13.7mb
File
Network Setup Guide
12.4mb
File
Product Dimensions
0.1mb
