AVTECH - AVN812 - Push Video 1.3 Megapixel Wireless Cube Camera
AVTECH - AVN812 - Push Video 1.3 Megapixel Wireless Cube Camera
AVTECH - AVN812 - Push Video 1.3 Megapixel Wireless Cube Camera
AVTECH - AVN812 - Push Video 1.3 Megapixel Wireless Cube Camera AVTECH - AVN812 - Push Video 1.3 Megapixel Wireless Cube Camera

AVTECH - AVN812 - Push Video 1.3 Megapixel Wireless Cube Camera

Part number:
AVN812
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

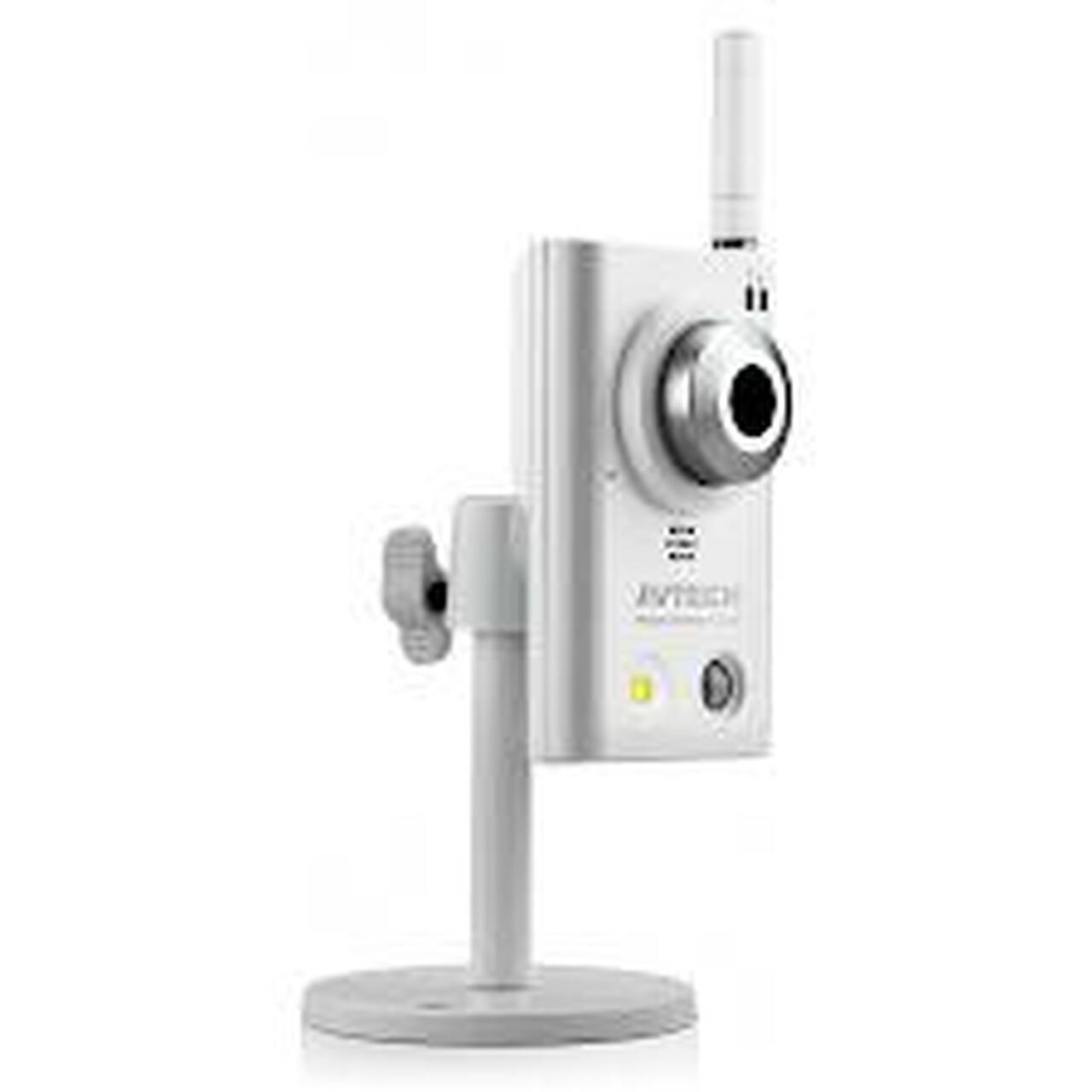

Push Video 1.3 Megapixel Wireless Cube Camera



Features:

  • Easy network setup with your iPhone / iPad
  • Network access via either a wireless IEEE 802.11g/b connection or a wired Ethernet connection to provide flexible installation options
  • 1.3 Megapixel with HDTV 720p quality, allowing users to notice minor details more easily
  • Memory storage built-in for video recording
  • Push Video support to send an event notification to your iPad, iPhone and Android mobile device immediately once the specified event type is triggered, and play video recording once you confirm the receipt
  • USB port for 3G dongle supported for network access
  • White LED built-in to illuminate the scene manually, scheduled by a timer, or triggered by a motion, an alarm, or an audio event
  • External alarm I/O device connection
  • Microphone & speaker built-in for two-way audio transmission
  • Remote Surveillance
  • Fully compatibility on iPhone & iPad, and Internet Explorer on Windows operating system
ModelAVN812
Network
LAN PortYES
LAN Speed10/100 Based-T Ethernet
Wireless InterfaceIEEE 802.11 b/g/n
Antenna Gain2dBi, dipole
RF ConnectorReverse SMA Plug
Supported Protocols

DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP,

ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP,IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS

Number of Online Users10
Security
  • Multiple user access levels with password
  • IP address filtering
  • HTTPS encryption
  • WEP 64/128 bit, WPA/WPA2-PSK
Web Access
  • Internet Explorer® on Windows® operating system
  • EagleEyes on iPhone, iPad & Android mobile devices
Video
Video Compression1/3" Live MOS image sensor
Video ResolutionSXGA, 720P, VGA, QVGA
Frame RateNTSC:30, PAL:25

Multiple Video Streaming

(Encode Modes, IPS, Resolution)

3 (H.264, MJPEG, MPEG4)
Camera
Image Sensor1/4" SONY H.R. image sensor
Min Illumination0.1 Lux / F1.5, 0 Lux (White LED on)
Shutter Speed1 / 2 to 1 / 10,000 sec
S/N RatioMore than 48dB (AGC off)
Lensf3.8mm / F1.5
Viewing Angle62.7°
White LEDYES (1W, 10 meters)
White BalanceATW
AGCAuto
IRIS ModeAES
PIR SensorDetection Range 760 wide angle with up to 6m long distance at 2m height (under 300C)
External Alarm I/OYES
Microphone & SpeakerYES
Power Source (±10%)5V / 2A
Operating Temperature00C~400C
Other
Mobile SurveillanceiPad / iPhone / Android mobile device
Quick Wireless Network ConnectionYES
RTC (real-time clock)YES
Motion DetectionYES
Digital Pan / Tilt / ZoomYES
Event NotificationFTP / Email / Push Video

Minimum Web Browsing Requirements









  • Pentium 4 CPU 1.3 GHz or higher, or equivalent AMD
  • 256 MB RAM
  • AGP graphics card, Direct Draw, 32MB RAM
  • Windows 7, Vista & XP, DirectX 9.0 or later
  • Internet Explorer 7.x or later
Name
Description
Size
Downloads
File
Datasheet
0.1mb
