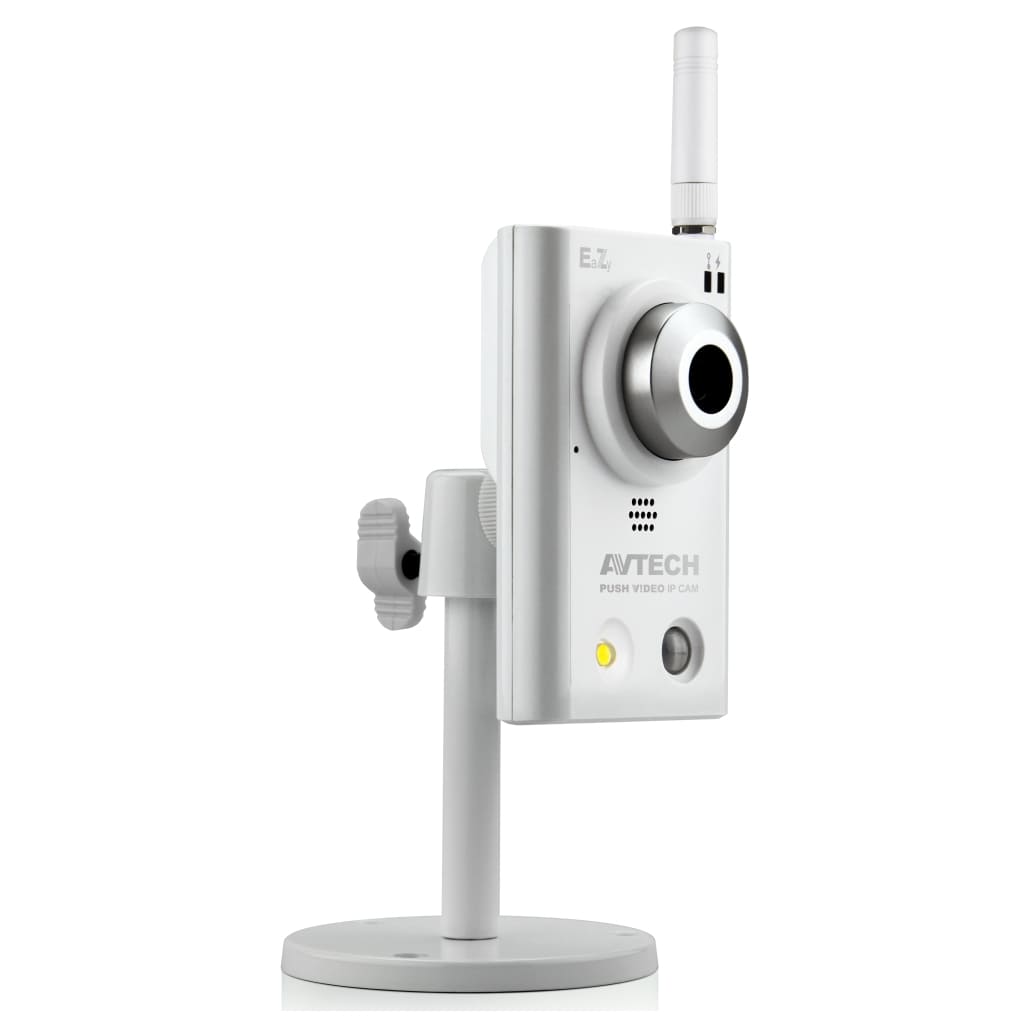

AVTECH - AVN815EZ - 1.3 Megapixel PUSH Video 720p HDTV Camera
Part number:
AVN815EZ
Price:
1.3 Megapixel PUSH Video 720p HDTV Camera
Features:
- Network access via either a wireless IEEE 802.11 b/g/n connection or a wired Ethernet connection to provide flexible installation options
- Push Video support to send an event notification to your iPad, iPhone and Android mobile device immediately once the specified event type is triggered, and play video recording once you confirm the receipt
- 1.3 Megapixel with HDTV 720p quality, allowing users to notice minor details more easily
- White LED built-in to illuminate the scene manually, scheduled by a timer, or triggered by a motion, an alarm, or an audio event
- Micro SD card support (up to 64GB) for video storage
- ONVIF standard supported to simplify system integration
- External alarm I/O device connection
| Specifications | |
| Network | |
| LAN Port | YES |
| LAN Speed | 10/100 Based-T Ethernet |
| Wireless Interface | IEEE 802.11 b/g/n |
| Antenna Gain | 2dBi |
| RF Connector | Reverse SMA Plug |
| Supported Protocols | DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP,IPv4, Bonjour, UPnP, DNS, UDP, IGMP |
| ONVIF Compatible | YES (Profile S) |
| Number of Online Users | 10 |
| Video | |
| Video Compression | H.264 / MPEG4 / MJPEG |
| Video Resolution | SXGA, 720P, VGA, QVGA |
| Frame Rate | NTSC:30, PAL:25 |
| Multiple Video Streaming | |
| (Encode Modes, IPS, Resolution) | 3 (H.264, MJPEG, MPEG4) |
| Camera | |
| Image Sensor | 1/4" SONY H.R. image sensor |
| Min Illumination | 0.1 Lux / F1.5, 0 Lux (White LED on) |
| Shutter Speed | 1 / 2 to 1 / 10,000 sec. |
| S/N Ratio | More than 48dB (AGC off) |
| Lens | f3.8mm / F1.5 |
| Viewing Angle | 62.7° (Diagonal) / 53.7° (Horizontal) / 34.1° (Vertical) |
| White LED | YES (1W, 10 meters) |
| White Balance | ATW |
| AGC | Auto |
| IRIS Mode | AES |
| PIR Sensor | Detection Range 76 wide angle with up to 6m long distance at 2m height (under 30C) |
| Micro SD Card Slot | YES (up to 64GB) |
| External Alarm I/O | YES |
| RAM | 10MB |
| Microphone | YES |
| Speaker | YES |
| Power Source (±10%) | 12V / 1A |
| Operating Temperature | 0℃~40℃ |
| Operating Humidity | Less than 60% relative humidity |
| Net Weight (kg) | 0.5 |
| Others | |
| Mobile Surveillance | iPad / iPhone / Android mobile device |
| Quick Wireless Network Connection | YES |
| RTC (real-time clock) | YES |
| Motion Detection | YES |
| Digital Pan / Tilt / Zoom | YES |
| Event Notification | FTP / Email / Push Video |
| Minimum Web Browsing Requirements | Intel core i3 or higher, or equivalent AMD 2GB RAM AGP graphics card, Direct Draw, 32MB RAM Windows 7, Vista & XP, DirectX 9.0 or later Internet Explorer 7.x or later |
