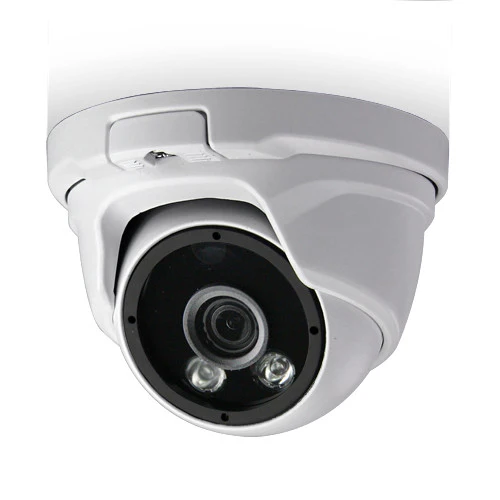

AVTECH - AVT1104 - 1080P, f3.6/F1.8, SMART IT - 75FT IR, IP66 Outdoor Dome TVI Camera
Part number:
AVT1104
Price:
1080P, f3.6/F1.8, SMART IT - 75FT IR, IP66 Outdoor Dome TVI Camera
Features:
- 1/2.7” CMOS sensor with 1080P video output
- External alarm I/O device connection
- New IR technology adapted to enhance brightness at night
- Low light sensitivity of 0.1 Lux / F1.8, 0 Lux (IR LED ON)
- IP66 for weather-proof application
- Day and night 24-hour surveillance with IR effective distance up to 25 meters
- Camera parameters adjustable when used with AVTECH HD CCTV DVR
| MODEL | AVT1104 |
| Pick-up Element | 1/ 2.7” CMOS image sensor |
| Number of Pixels | 1930(H) x 1088(V) |
| Video Frame Rate | 1080P@30fps / 1080P@25fps |
| Min. Illumination | 0.1 Lux / F1.8, 0 Lux (IR LED ON) |
| S/N Ratio | More than 48dB (AGC OFF) |
| Shutter Speed | 1/30 (1/25) sec ~ 1/720000 (1/600000) sec |
| Lens | f3.6mm / F1.8 |
| Lens Angle | 89° (Horizontal) / 46° (Vertical) / 108° (Diagonal) |
| IR LED | 2 units |
| IR Effective Distance | Up to 25 meters |
| IR Shift | YES |
| Day & Night Mode | YES |
| IRIS Mode | AES |
| White Balance | AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K |
| AGC | Adjustable |
| Sharpness | Adjustable |
| Flickerless | 50HZ / 60HZ / OFF |
| BLC | Adjustable |
| External I/O | YES (1 in / 1 out) |
| IP Rating | IP66 |
| Operating Temperature | -40℃ ~ 40℃ |
| Operating Humidity | 90% or less relative humidity |
| Power Source (±10%) | DC12V / 0.5A |
| Current Consumption (±10%) | 160mA (IR LED OFF) / 320mA (IR LED ON) |
| Net Weight (kg) | 0.39 |
