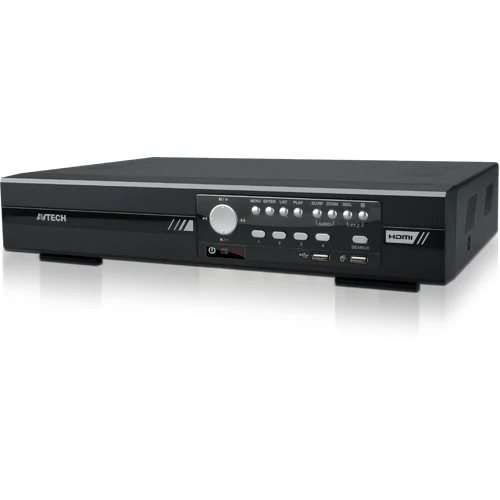

4CH HD TVI DVR
Features:
Free P2P Cloud EaZy Networking
- Cloud EaZy Networking available to connect this device to Internet automatically in three steps with our free mobile app, EagleEyes.
- The “Buddy” feature to share the device access permission to other people.
- Device login / out notifications reported.
Push Status:
Active Event Notification with EagleEyes App
Sends instant notifications for system events, such as video loss or HDD data removal.
Video Backup
Regular backup could be configured to automatically copy video footages to the specified location (USB drive or FTP) at the specified time.
Remote Surveillance
- Fully compatible with iOS and Android devices, and Internet Explorer on Windows operating system
- CMS Lite for 24 devices central management
- Applicable also to Apple’s media player, QuickTime.
Independent Channel Control
Definable “Resolution” / ”Quality” / ”IPS” by channels at your preferences to increase the recording efficiency, and avoid any important scenes to be missed.
| Specification | |||
| Video | |||
| Video System | NTSC / PAL (auto detection) | ||
| Video Compression Format | H.264 | ||
| Video Input | 4 channels (Composite video signal 1 Vp-p 75Ω BNC) | ||
| Video Output | BNC | YES | |
| VGA | YES | ||
| HDMI | YES | ||
| Record & Backup | |||
| Maximum Recording Rate | 1080P | 1920 x 1080 pixels with 60 IPS | |
| 720P | 1280 x 720 pixels with 120 IPS | ||
| QHD | 960 x 540 pixels with 120 IPS | ||
| Frame | 704×480 pixels with 120 IPS <NTSC> / 704×576 pixels with 100 IPS <PAL> | ||
| Field | 704x240 pixels with 120 IPS <NTSC> / 704×288 pixels with 100 IPS <PAL> | ||
| CIF | 352×240 pixels with 120 IPS <NTSC> / 352×288 pixels with 100 IPS <PAL> | ||
| Recording Mode | Manual / Timer / Motion / Remote | ||
| Pre-alarm Recording | YES | ||
| Playback Channel | 4CH | ||
| Quick Search | Time / Motion search mode | ||
| Backup Device | USB 2.0 flash drive / Network | ||
| Regular Backup | YES | ||
| Audio | |||
| Audio Input | 1 audio input | ||
| Audio Output | 1 audio output (Mono) | ||
| General | |||
| Hard Disk Storage** | Up to 2 SATA HDDs | ||
| SATA Interface | YES | ||
| Image Quality Setting | SUPER BEST / BEST / HIGH / NORMAL | ||
| USB Mouse Control | YES | ||
| Motion Detection Area | 16 × 12 grids per channel | ||
| Motion Detection Sensitivity | 3 adjustable parameters for accurate detection | ||
| Event Notification | Push Status / FTP / E-Mail | ||
| Picture Zoom | 2X digital zoom | ||
| PTZ Control | YES | ||
| IR Remote Control | YES (IR receiver built-in) | ||
| Key Lock (Password Protection) | YES | ||
| User Level | 4 user levels for different access privilege | ||
| Video Loss Detection | YES | ||
| Camera Title | Supports up to 25 letters | ||
| Video Adjustable | Hue / Saturation / Contrast / Brightness | ||
| Date Display Format | YY/MM/DD, DD/MM/YY & MM/DD/YY | ||
| Daylight Saving | YES | ||
| Power Source (±10%) | DC12V / 3A | ||
| Operating Temperature | 10℃ ~ 40℃ (50℉~104℉) | ||
| Operating Humidity | 10% ~ 85% | ||
| Dimensions (mm)*** | 345(W)×58.8(H)×223(D) | ||
| Net Weight | 2 ±10% | ||
| Network | ||
| Ethernet | 10/100 Base-T. Supports remote control and live view via Ethernet | |
| Network Protocol | TCP/IP, PPPOE, DHCP and DDNS | |
| Remote Surveillance from PC | ||
| Compatible Operating System | Windows & MAC | |
| Compatible Program | Web Browser: | Internet Explorer, Google Chrome & Safari |
| CMS Lite: | 24CH central management software for Windows OS | |
| QuickTime: | For both Windows and MAC operating systems | |
| Max. online users | 20 | |
| Web Transmitting Compression Format | H.264 | |
| Network Live Audio | YES | |
| Remote Independent Operation | YES | |
| Remote Event Download & Playback | YES | |
| Mobile Surveillance | ||
| App | EagleEyes | |
| Compatible Devices | iOS & Android devices | |
| Push Status | YES | |
| Others | ||
| EaZy Networking | YES | |
| DCCS Support | YES | |
| AVTECH Free DDNS service | YES | |
| Multiplex Operation | Live display / record / playback / backup / network operations | |
| System Recovery | System auto recovery after power failure | |
| Optional Peripherals | HDMI Matrix (HDM02) | |
