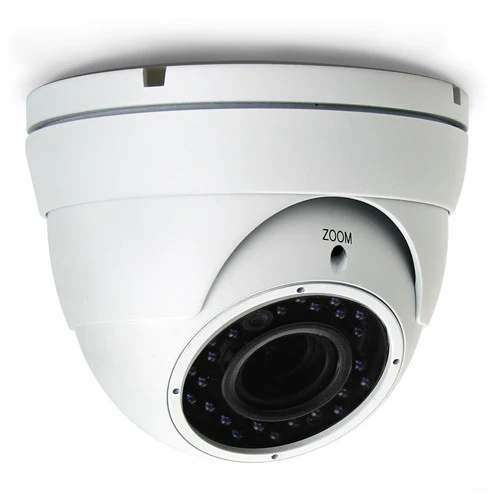

AVTECH - DG206A - HD TVI 1080P Vari-focal IR Dome Camera
Part number:
DG206A
Price:
HD TVI 1080P Vari-focal IR Dome Camera
Features:
- 1/2.7” CMOS Sensor
- 1080P video output
- 8 ~ 12mm vari-focal lens
- Low light sensitivity of 1 Lux / F1.4(Wide)~F2.8(Tele), 0 Lux (IR LED ON)
- IP66 for weather-proof application
- Day and night 24-hour surveillance with IR effective distance up to 25 meters
- Camera parameters adjustable when used with AVTECH HD CCTV DVR
| MODEL | DG206A |
| Pick-up Element | 1/ 2.7” CMOS image sensor |
| Number of Pixels | 1930(H) x 1088(V) |
| Video Frame Rate | 1080P@30fps / 1080P@25fps |
| Min. Illumination | 0.1 Lux / F1.4(Wide)~F2.8(Tele), 0 Lux (IR LED ON) |
| S/N Ratio | More than 48dB (AGC OFF) |
| Shutter Speed | 1/30 (1/25) sec ~ 1/720000 (1/600000) sec |
| Lens | f2.8 ~ 12mm / F1.4 ~ F2.8 |
| Lens Angle | Wide: 104° (Horizontal) / 56° (Vertical) / 124° (Diagonal) Tele: 35° (Horizontal) / 20° (Vertical) / 40° (Diagonal) |
| IR LED | 24 units |
| IR Effective Distance | Up to 25 meters |
| IR Shift | YES |
| Day & Night Mode | YES |
| IRIS Mode | AES |
| White Balance | AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K |
| AGC | Adjustable |
| Sharpness | Adjustable |
| Flickerless | 50HZ / 60HZ / OFF |
| BLC | Adjustable |
| IP Rating | IP66 |
| Operating Temperature | -20℃ ~ 40℃ |
| Operating Humidity | Less than 60% relative humidity |
| Power Source (±10%) | DC12V / 0.5A |
| Current Consumption (±10%) | 300mA |
| Dimensions (±5mm) | 138 (Φ) x 100 (H) |
| Net Weight (Kg) | 1 |
