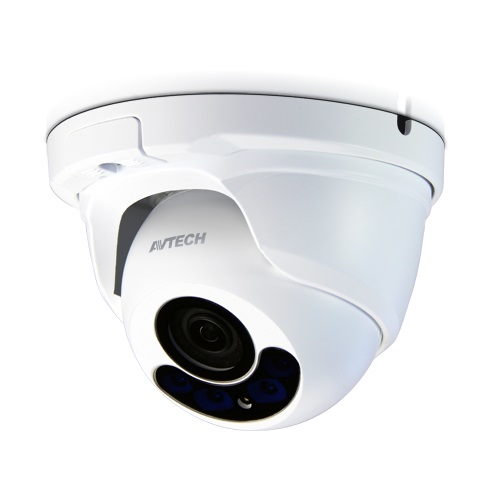

AVTECH - DGC1304 - 2MP 2.8-12mm Motorized/Auto Focus Lens IR IP66 Dome Camera
Part number:
DGC1304
Price:
2MP 2.8-12mm Motorized/Auto Focus Lens IR IP66 Dome Camera
Features:
- 1/2.7” CMOS sensor with 1080P video output
- Low light sensitivity of 0.1 Lux / F1.6(Wide)~F2.8(Tele), 0 Lux (IR LED ON)
- EZUM series to support focus and camera parameters adjustment remotely from AVTECH HD CCTV DVR
- Manual adjustment of the brightness of the IR LEDs
- Day and night 24-hour surveillance with IR effective distance up to 50 meters
- IP66 for weather-proof application
- Camera parameters adjustable when used with AVTECH HD CCTV DVR
| MODEL | DGC1304 |
| Pick-up Element | 1/ 2.7” CMOS image sensor |
| Number of Pixels | 1930(H) x 1088(V) |
| Video Frame Rate | 1080P@30fps / 1080P@25fps |
| Min. Illumination | 0.1 Lux / F1.6(Wide)~F2.8(Tele), 0 Lux (IR LED ON) |
| S/N Ratio | More than 48dB (AGC OFF) |
| Shutter Speed | 1/30 (1/25) sec ~ 1/720000 (1/600000) sec |
| Lens | motorized f2.8 ~ f8.0mm / F1.6 ~ 2.8 |
| Lens Angle | Wide: 104° (Horizontal) / 56° (Vertical) / 126° (Diagonal) Tele: 57° (Horizontal) / 32° (Vertical) / 65° (Diagonal) |
| IR LED | 4 units |
| IR Effective Distance | Up to 50 meters |
| IR Shift | YES |
| Day & Night Mode | YES |
| IRIS Mode | AES |
| White Balance | AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K |
| AGC | Adjustable |
| Sharpness | Adjustable |
| Flickerless | 50HZ / 60HZ / OFF |
| BLC | Adjustable |
| IR Brightness Adjustment | YES |
| IP Rating | IP66 |
| Operating Temperature | -25℃ ~ 50℃ |
| Operating Humidity | 90% or less relative humidity |
| Power Source (±10%) | DC12V / 1A |
| Current Consumption (±10%) | 220mA (IR LED OFF) / 900mA (IR LED ON) |
| Net Weight (kg) | 0.75 |
