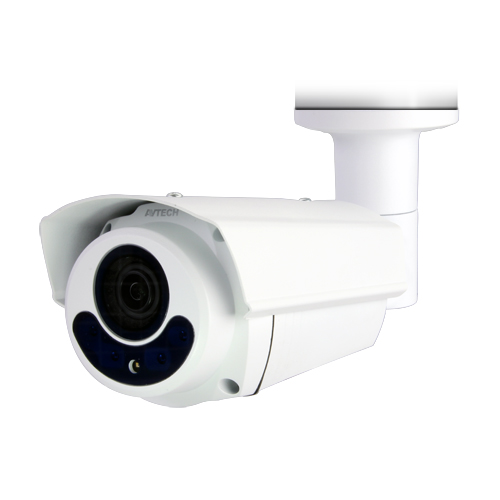

AVTech - DGC1306 - HD 1080P IR Bullet Camera

The AVTECH DGC1306 is a high-definition 1080P IR bullet camera featuring a 1/2.7" CMOS sensor for smooth video output at up to 30 fps. It is equipped with a versatile f2.8~8.0mm motorized lens, allowing for easy focal adjustments to suit various environments. With an effective IR range of 50 metres and low-light sensitivity down to 0.1 Lux, it ensures reliable night surveillance, while its IP66-rated housing provides robust protection against harsh weather.

Key Configuration

• • Pick-up element: 1/2.7" CMOS image sensor with effective pixels: 1,930 (H) x 1,088 (V).
• • Video frame rate: 1080p at 30 or 25 fps.
• • Lens: motorised, 2.8–8 mm, f/1.6–2.8
• • IR: four LEDs with an effective distance of up to 50 metres and manual brightness adjustment.
• • Power: DC 12 V/1 A; power consumption: 220 mA (IR off)/900 mA (IR on).

Key Features

The AVTech DGC1306 offers wide-angle coverage up to 104° or focused telephoto viewing. Designed for 24-hour reliability, it features an automatic IR shift with a 50-metre night vision range and high-speed shutter processing for exceptional motion clarity. When paired with an AVTECH HD CCTV DVR, users can fully customize professional parameters, including AGC, sharpness, and BLC to suit any environment.

Installation Notes

This heavy-duty unit weighs 2.4 kg and features an IP66-rated weatherproof housing, built for stable operation in temperatures ranging from -25°C to 50°C. It operates on a standard 12V DC / 1A power supply and is designed to perform reliably in environments with up to 90% humidity.
