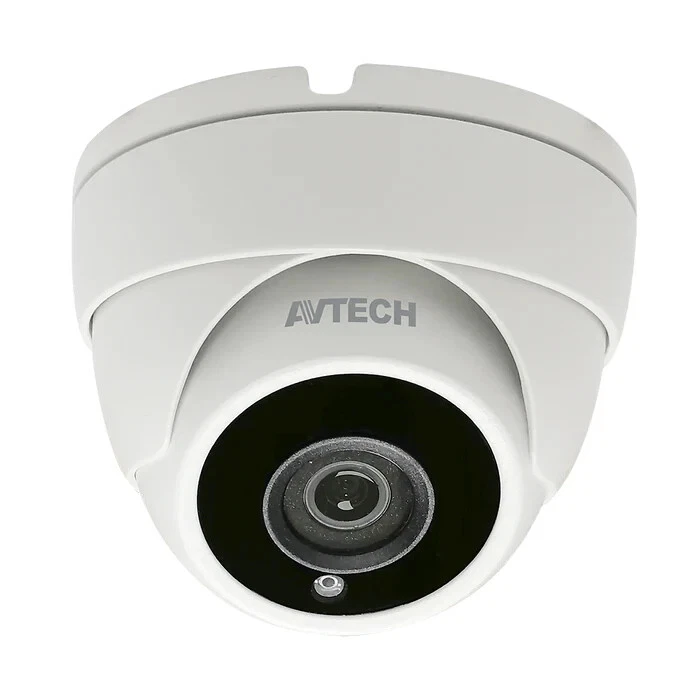

AVTech - DGC5204AF - 5MP 4-in-1 IR Dome Camera

The AVTECH DGC5204AF is a versatile 5MP 4-in-1 IR dome camera featuring a 1/2.5" CMOS sensor and switchable quadbrid video output TVI, CVI, AHD, and CVBS for universal compatibility. Equipped with a 3.6mm F1.6 lens, it delivers exceptional low-light performance down to 0.01 Lux and clear night vision up to 25 metres. This all-in-one security solution includes a built-in microphone for audio recording, D-WDR for balanced exposure, and a rugged IP66-rated housing for reliable outdoor use.

Key Configuration

• • Pick-up element: 1/2.5-inch CMOS sensor with 5MP effective pixels. 2,592 (H) x 1,944 (V) (5MP).
• • Video output: Switchable between TVI, CVI, AHD and CVBS
• • Video frame rate: TVI/AHD: 20 fps at 2560 x 1944 pixels CVI: 30 fps at 2560 x 1440 pixels
• • Lens: f/3.6 mm, f/1.6; lens angle: 99.4° horizontally, 50.7° vertically, 118.7° diagonally
• • Power: DC 12 V; power consumption <5 W

Technical Context

It offers flexible imaging through multiple Day & Night modes (Auto, Color, B/W, and EXT) and supports professional installation using optional brackets or junction boxes, including the AVA126-WHKT and AVM552C series.

Installation Notes

This compact camera weighs 259 g. It operates reliably in extreme environments ranging from -20°C to 60°C and is powered by a standard 12V DC source. For a professional finish, it is compatible with a variety of optional brackets and junction boxes, making it adaptable to any mounting surface.
