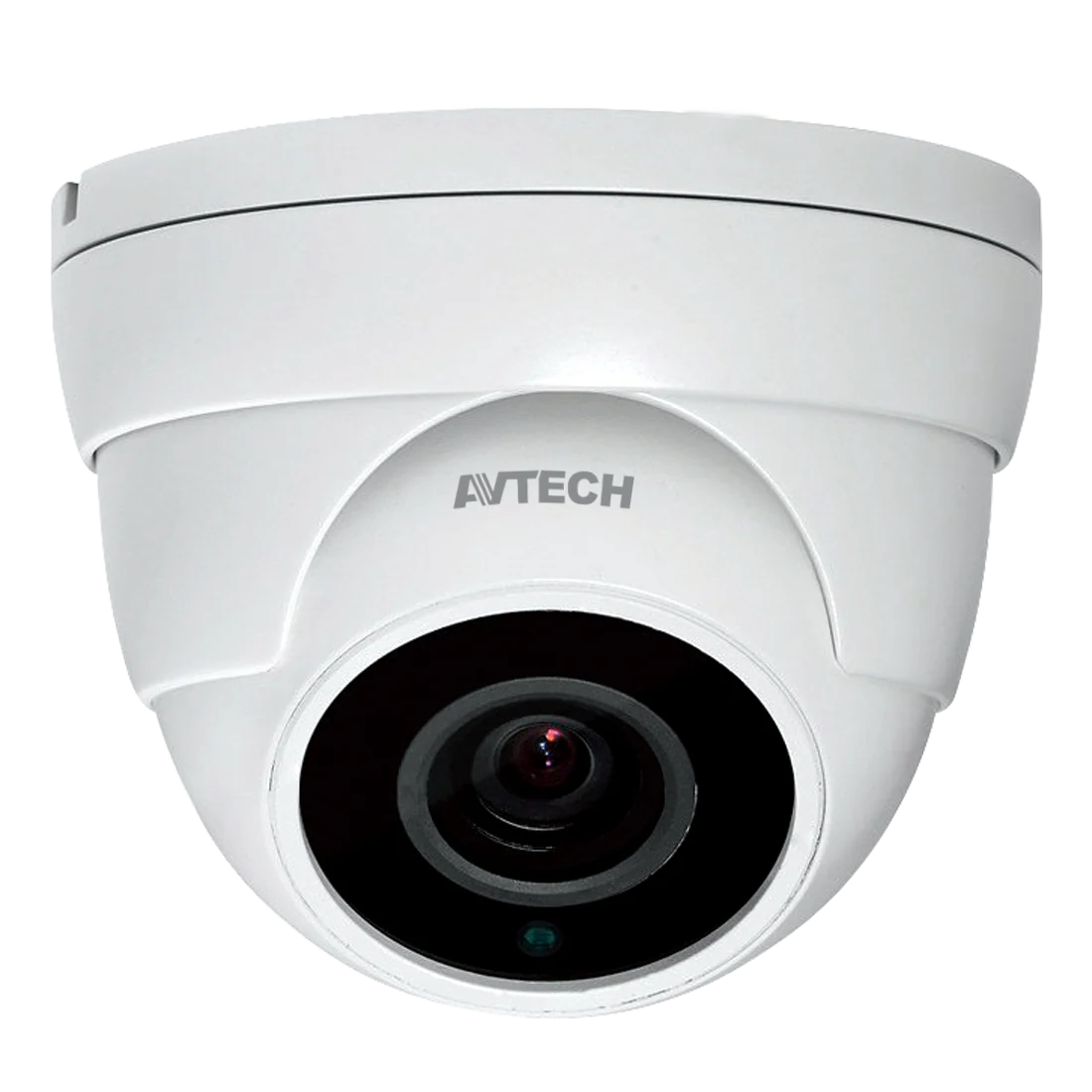

AVTech - DGC8446F - 8MP 4-in-1 Motorized IR Dome Camera

The AVTECH DGC8446F is an 8MP (4K) quadbrid dome featuring a Sony CMOS sensor and a motorized f2.8~12mm lens for remote focal control. It delivers exceptional Starlight™ color imaging at 0.001 Lux, clear night vision up to 25 metres, and WDR for balanced exposure. Encased in an IP66 housing, it offers premium high-resolution performance in any environment.

Key Configuration

• • Pick-up element: 1/2.8-inch Sony CMOS; effective pixels: 3,840 (H) x 2,160 (V) (8MP).
• • Video output: Switchable between TVI, CVI, AHD and CVBS
• • Video frame rate: TVI/CVI/AHD: 15 fps at 3840 x 2160; CVBS: 25/30 fps at 960H.
• • Lens: motorised f/2.8-12mm, f/1.4
• • Power: DC 12 V; power consumption <8 W

Key Features

Its motorized lens offers exceptional flexibility, ranging from a 108.1° wide-angle to a 30.3° telephoto view. With integrated WDR, 2D/3D-DNR, and a high 62dB S/N ratio, it ensures sharp, noise-free video even in high-contrast or low-light scenes. Additionally, all core parameters, including shutter speed and white balance, are fully adjustable via an AVTECH HD CCTV DVR.

Technical Context

For optimized imaging, the camera includes four Day & Night modes (Auto, Color, B/W, and EXT), ensuring consistent performance across varying lighting conditions. It operates within a wide temperature range of -20°C to 60°C and supports up to 90% humidity. This 502.5 g unit is designed for versatile deployment.
