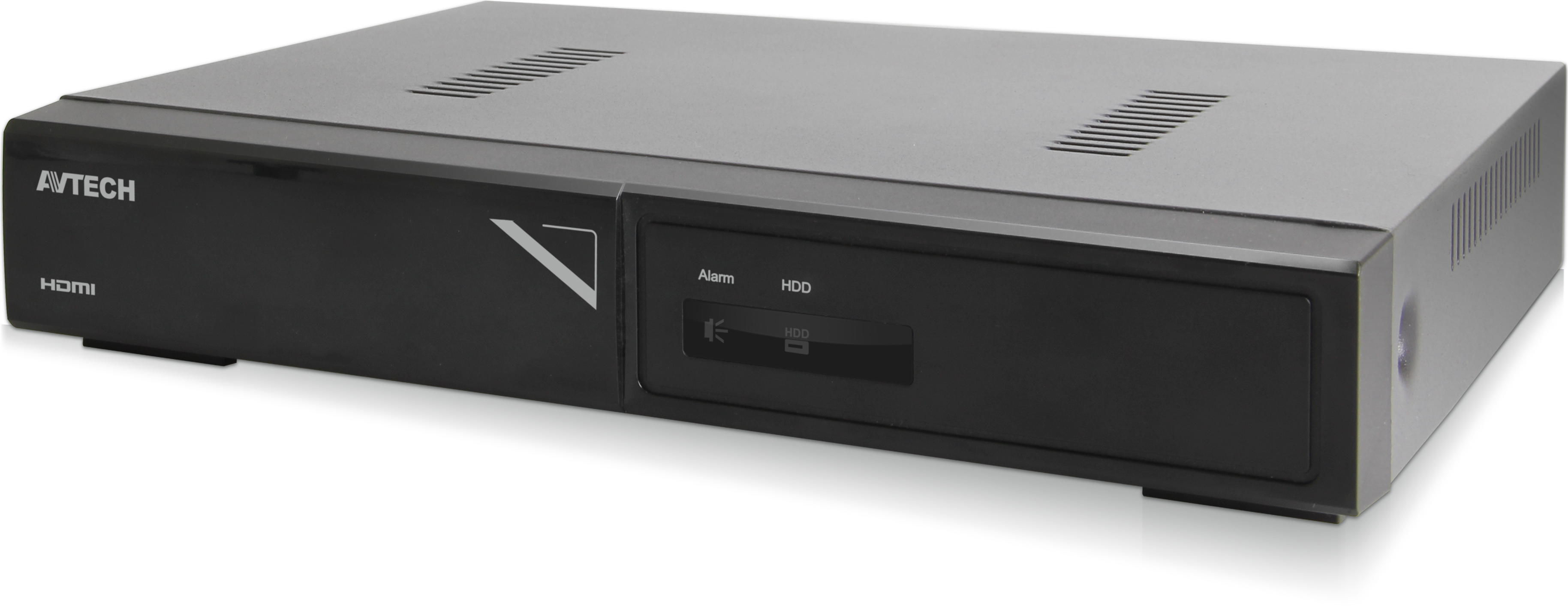

AVTECH - DGD1005-2TB - H.265 5MP Pentabrid 4CH XVR With 2TB Preinstalled
Part number:
DGD1005-2TB
Price:

H.265 5MP Pentabrid 4CH XVR With 2TB Preinstalled



Features:

H.265 Compression Technology

  • The recording capacity is greatly enhanced as well as bandwidth saving for better efficiency and performance than the systems employing other compression formats



Scenario Customization

  • Allows you to customize a series of actions which will be run automatically after the specified event occurs. There are several scenario templates for you to choose when and what to do after a specific event occurs.



Pentabrid Video Input

  • 4 channels of IP / TVI / CVI / Analog HD / 960H video input, within which IP channels are up to 2 channels
  • Up to 5MP display & recording



Event Pop-up / Preview

  • All events are listed on the right panel with corresponding event icons for you to quickly recognize the event type. The most current one will flash to catch your attention. Click one event and you’re able to preview the footage with pre-alarm images.



Free P2P Cloud EaZy Networking*

  • Cloud EaZy Networking available to connect this device to Internet automatically in three steps with our free mobile app, EagleEyes.
  • The “Buddy” feature to share the device access permission to other people.
  • Device login / out notifications reported.



Push Video & Push Status - Active Event Notification with EagleEyes App

  • Push Video to send instant notifications for an alarm event when an alarm device is connected to the camera which supports external alarm device connection/
  • Push Status to send instant notifications for system events, such as video loss or HDD data removal.
Specifications
Video
Video SystemNTSC / PAL (auto detection)
Video Compression FormatH.265
Video SignalIP / TVI / CVI / Analog HD / 960H
Video Input4 pentabrid channels (IP / TVI / CVI / Analog HD / 960H), within which IP channels are up to 2 channels
Video Input Interface

Analog Mode

IP Mode

Composite video signal 1 Vp-p 75Ω BNC

Ethernet, 10/100 Base-T

Video Output

BNC

VGA HDMI

YES YES

YES (4K2K display)

Video ResolutionAnalog Mode IP Mode

5MP / 5MLITE / 4MP / 4MLITE / FHD (1080P) / HD / 960H / Frame / CIF

2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 /

720 x 480 / 352 x 240

Record & Backup
Max. Recording Rate

Analog Mode IP Mode

(2 channels)

Up to 24 IPS @ 5MP Up to 32 IPS @ 4MP

Up to 60 IPS @ FHD (1080P)

UP to 30 IPS @ 2592 x 1944 (5MP)

UP to 48 IPS @ 2048 x 1536 (3MP)

UP to 60 IPS @ 1920 x 1080

Recording ModeManual / Timer / Motion / Alarm / Remote
Playback Channel4CH
Quick SearchTime / Motion / Alarm search mode
Backup DeviceUSB 2.0 drive / Network
Regular BackupYES
Audio
Audio Input4
Audio Output1 (Mono)
External I/O
RS485YES
Alarm Input4
Alarm Output1
General
Hard Disk Storage

14TB SATA HDD x 1 or

external disk array x 1 connected to the recorder via the eSATA interface

SATA InterfaceYES
eSATA InterfaceExpandable with a SATA to eSATA cable
Image Quality SettingSUPER BEST / BEST / HIGH / NORMAL
USB Mouse ControlYES
Motion Detection Area16 × 12 grids per channel
Motion Detection Sensitivity3 adjustable parameters for accurate detection
Event NotificationPush Video / Push Status / FTP / E-Mail
Event Pop-up & PreviewYES
Scenario SetupYES
Picture Zoom2X digital zoom
PTZ ControlYES
Key Lock (Password Protection)YES
User Level4 user levels for different access privilege
Video Loss DetectionYES
General
Camera TitleSupports up to 25 letters
Video AdjustableHue / Saturation / Contrast / Brightness
Date Display FormatYY/MM/DD, DD/MM/YY & MM/DD/YY
Daylight SavingYES
Power Source (±10%)12V / 2A
Operating Temperature10ºC ~ 40ºC (50ºF ~104ºF)
Operating Humidity10% ~ 85%
Dimensions(mm)**260 x 235.7 x 48
Net Weight (kg)1.3
Network
Ethernet10/100 Base-T. Supports remote control and live view via Ethernet
Network ProtocolTCP/IP, PPPOE, DHCP and DDNS
Remote Surveillance from PC
Compatible Operating SystemWindows & MAC
Compatible ProgramWeb Browser: CMS Lite:

Windows Edge, Microsoft Internet Explorer, Google Chrome, Mozilla Firefox & Safari

32CH central management software for Windows OS

Max. online users20
Web Transmitting Compression FormatH.265
Network Live AudioYES
Remote Event Download & PlaybackYES
Mobile Surveillance
AppEagleEyes
Compatible DevicesiOS & Android devices
Push VideoYES (1 channel)
Push StatusYES
Others
EaZy NetworkingYES
DCCS SupportYES
AVTECH Free DDNS serviceYES
Privacy MaskYES
Multiplex OperationLive display / record / playback / backup / network operations
System RecoverySystem auto recovery after power failure
Optional PeripheralsHDMI Matrix (HDM02) / USB Joystick (AVX102) / SATA to eSATA cable (PWSC07F120200)
CertificationCE
