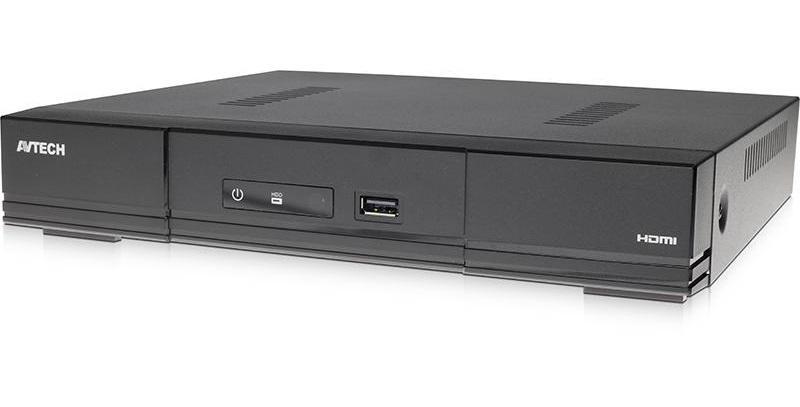

AVTech - DGD1009AV - 5MP H.265 PENTABRID 8CH XVR
The AVTech DGD1009AV is a versatile 8-channel Pentabrid XVR supporting 5MP recording and display across IP, TVI, CVI, Analog HD, and 960H formats. It features H.265 compression, 4K HDMI output, and high-capacity storage up to 20TB (SATA/eSATA). Cloud EaZy Networking and Push Video notifications provide intelligent remote monitoring and highly customizable event scenarios for professional security management.
Key Configuration
- • Video input: 8 pentabrid channels (IP / TVI / CVI / Analog HD / 960H)
- • Video compression format: H.265
- • Video output: BNC (spot monitor), VGA (spot monitor), HDMI (4K2K display)
- • Hard disk: 20TB SATA HDD × 1; eSATA interface for external disk array
- • Audio: 4 inputs / 1 output (mono)
Key Features
The recording supports 8MP Lite Analog and 5MP, with speeds up to 240 IPS for smooth playback. It features Push Video for instant mobile alerts and Scenario Customization to automate security responses. Managing footage is effortless with 8X digital zoom, a Spot Monitor output, and a quick search function, while Cloud EaZy Networking ensures a simple three-step mobile setup.
Technical Context
This XVR excels in high-capacity multitasking, supporting simultaneous live display, recording, and network operations for up to 40 online users. It features granular security with 4 access levels, privacy masking, and precise 16 × 12 grid motion detection. Connectivity is robust, with RS485 and alarm I/O, and includes instant notifications via Push Video, FTP, and Email. For maximum reliability, it offers auto-recovery after power failures and fully customizable video parameters.
Installation Notes
Measuring 260 × 235.7 × 48 mm, this CE/UL certified XVR operates on a 12V / 2A power source. It features password-protected key locking for enhanced security and supports USB mouse control for intuitive navigation. Built for professional reliability within a 0°C to 40°C range, it also offers flexible storage expansion via an optional SATA to eSATA cable.
| Video | |
|---|---|
| Video System | NTSC / PAL (auto detection) |
| Video Compression Format | H.265 |
| Video Signal | IP / TVI / CVI / Analog HD / 960H |
| Video Input | 8 pentabrid channels (IP / TVI / CVI / Analog HD / 960H) |
| Video Input Interface | |
| Analog Mode | Composite video signal 1 Vp-p 75Ω BNC |
| IP Mode | Ethernet, 10/100 Base-T |
| Video Output | |
| BNC | YES (Spot Monitor supported) |
| VGA | YES (Spot Monitor supported) |
| HDMI | YES (4K2K display) |
| Video Resolution | |
| Analog Mode | 8MP Lite / 5MP / 5MLITE / 4MP / 4MLITE / FHD (1080P) / HD / 960H / Frame / CIF |
| IP Mode | 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240 |
| Live Display Mode | |
| Local | 8CH |
| Remote | 4CH |
| Playback Display Mode | |
| Local | 8CH |
| Remote | 4CH |
| Record & Backup | |
| Max. Recording Rate | |
| Analog Mode | Up to 56 IPS @ 8MP Lite Up to 48 IPS @ 5MP Up to 64 IPS @ 4MP Up to 120 IPS @ FHD (1080P) |
| IP Mode | Up to 120 IPS @ 2592 x 1944 (5MP) Up to 192 IPS @ 2048 x 1536 (3MP) Up to 240 IPS @ 1920 x 1080 |
| Recording Mode | Manual / Timer / Motion / Alarm / Remote |
| Quick Search | Time / Motion / Alarm search mode |
| Backup Device | USB 2.0 drive / Network |
| Regular Backup | YES |
| Audio | |
| Audio Input | 4 |
| Audio Output | 1 (Mono) |
| External I/O | |
| RS485 | YES |
| Alarm Input | 4 |
| Alarm Output | 1 |
| General | |
| Hard Disk Storage | 20TB SATA HDD x 1 or external disk array x 1 connected to the recorder via the eSATA interface |
| SATA Interface | YES |
| eSATA Interface | Expandable with a SATA to eSATA cable |
| Image Quality Setting | SUPER BEST / BEST / HIGH / NORMAL |
| USB Mouse Control | YES |
| Motion Detection Area | 16 × 12 grids per channel |
| Motion Detection Sensitivity | 3 adjustable parameters for accurate detection |
| Event Notification | Push Video / Push Status / FTP / E-Mail |
| Event Pop-up & Preview | YES |
| Scenario Setup | YES |
| Picture Zoom | 8X digital zoom |
| PTZ Control | YES |
| Key Lock (Password Protection) | YES |
| User Level | 4 user levels for different access privilege |
| Video Loss Detection | YES |
| Video Adjustable | Hue / Saturation / Contrast / Brightness |
| Date Display Format | YY/MM/DD, DD/MM/YY & MM/DD/YY |
| Daylight Saving | YES |
| Power Source (±10%) | 12V / 2A |
| Operating Temperature | 0ºC ~ 40ºC (32ºF ~ 104ºF) |
| Operating Humidity | 10% ~ 85% |
| Dimensions(mm) | 260 x 235.7 x 48 |
| Network | |
| Ethernet | 10/100 Base-T. Supports remote control and live view via Ethernet |
| Network Protocol | TCP/IP, PPPOE, DHCP and DDNS |
| Remote Surveillance from PC | |
| Compatible Operating System | Windows & MAC |
| Compatible Program | Web browser: Windows Edge, Google Chrome, Mozilla Firefox & Opera on Windows 10 (and later versions) and Google Chrome & Mozilla Firefox on MAC PC program: 32CH CMS software for Windows OS |
| Max. online users | 40 |
| Web Transmitting Compression Format | H.265 |
| Network Live Audio | YES |
| Remote Event Download & Playback | YES |
| Mobile Surveillance | |
| App | EagleEyes |
| Compatible Devices | iOS & Android devices |
| Push Video | YES (8 channels) |
| Push Status | YES |
| Others | |
| EaZy Networking | YES |
| Spot Monitor Support | YES |
| DCCS Support | YES |
| AVTECH Free DDNS service | YES |
| Privacy Mask | YES |
| Multiplex Operation | Live display / record / playback / backup / network operations |
| System Recovery | System auto recovery after power failure |
| Optional Peripherals | SATA to eSATA cable |
| Certification | CE / UL (Power Adapter) |
