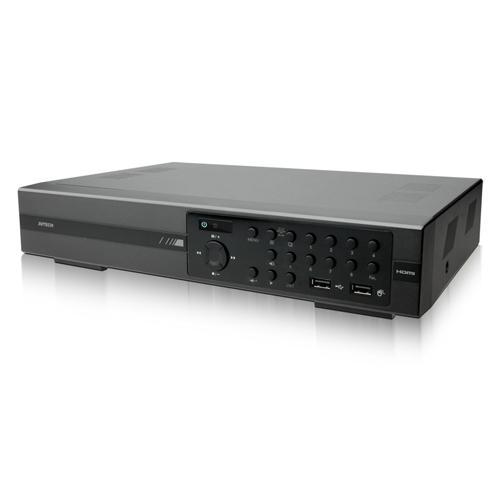

AVTECH - DGD1308 - 8CH Tribrid HD CCTV DVR with Push Status and EaZy Networking
Part number:
DGD1308
Price:
8CH Tribrid HD CCTV DVR with Push Status and EaZy Networking
Features:
Free P2P Cloud EaZy Networking*
- Cloud EaZy Networking available to connect this device to Internet automatically in three steps with our free mobile app, EagleEyes.
- The “Buddy” feature to share the device access permission to other people.
- Device login / out notifications reported.
Push Status - Active Event Notification with EagleEyes App
- Push Status to send instant notifications for system events, such as video loss or HDD data removal.
Video Backup
Regular backup could be configured to automatically copy video footages to the specified location (USB drive or FTP) at the specified time.
Quadbrid Video Input
- Supports Analog HD / TVI / CVI / 960H video input
- Up to 1080P recording
Spot Monitor
In addition to the main display via the HDMI output, you can assign a secondary display to show live view, call monitor or event monitor.
Remote Surveillance
- Fully compatible with iOS and Android devices, and Internet Explorer on Windows operating system
- CMS Lite for 32 devices central management vApplicable also to Apple’s media player, QuickTime.
| Specification | |||
| Video | |||
| Video System | NTSC / PAL (auto detection) | ||
| Video Compression Format | H.264 | ||
| Video Input | 8 channels (Composite video signal 1 Vp-p 75Ω BNC) | ||
| Video Output | BNC | YES (Spot Monitor supported) | |
| VGA | YES | ||
| HDMI | YES | ||
| Video Resolution | 1080P / 720P / QHD / 960H / Frame / Field / CIF | ||
| Record & Backup | |||
| Maximum Recording Rate | Up to 120 IPS @ 1920 x 1080<br> Up to 240 IPS @ 1280 x 720 | ||
| Recording Mode | Manual / Timer / Motion / Remote/Alarm | ||
| Pre-alarm Recording | YES | ||
| Playback Channel | 8CH | ||
| Quick Search | Time / Motion / Alarm search mode | ||
| Backup Device | USB 2.0 flash drive / Network | ||
| Regular Backup | YES | ||
| Audio | |||
| Audio Input | 4 audio input | ||
| Audio Output | 1 audio output (Mono) | ||
| General | |||
| Hard Disk Storage** | 10TB SATA HDD x 2 | ||
| SATA Interface | YES | ||
| Image Quality Setting | SUPER BEST / BEST / HIGH / NORMAL | ||
| USB Mouse Control | YES | ||
| Motion Detection Area | 16 × 12 grids per channel | ||
| Motion Detection Sensitivity | 3 adjustable parameters for accurate detection | ||
| Event Notification | Push Status / FTP / E-Mail | ||
| Picture Zoom | 2X digital zoom | ||
| PTZ Control | YES | ||
| IR Remote Control | YES (IR receiver built-in) | ||
| Key Lock (Password Protection) | YES | ||
| User Level | 4 user levels for different access privilege | ||
| Video Loss Detection | YES | ||
| Camera Title | Supports up to 25 letters | ||
| Video Adjustable | Hue / Saturation / Contrast / Brightness | ||
| Date Display Format | YY/MM/DD, DD/MM/YY & MM/DD/YY | ||
| Daylight Saving | YES | ||
| Power Source (±10%) | DC12V / 3A | ||
| Operating Temperature | 10℃ ~ 40℃ (50℉~104℉) | ||
| Operating Humidity | 10% ~ 85% | ||
| Dimensions (mm)*** | 345(W) x 68.3(H) x 225(D)) | ||
| Net Weight | 2.2 | ||
| Network | ||
| Ethernet | 10/100 Base-T. Supports remote control and live view via Ethernet | |
| Network Protocol | TCP/IP, PPPOE, DHCP and DDNS | |
| Remote Surveillance from PC | ||
| Compatible Operating System | Windows & MAC | |
| Compatible Program | Web Browser: | Internet Explorer, Google Chrome & Safari |
| CMS Lite: | 32CH central management software for Windows OS | |
| QuickTime: | For both Windows and MAC operating systems | |
| Max. online users | 20 | |
| Web Transmitting Compression Format | H.264 | |
| Network Live Audio | YES | |
| Remote Independent Operation | YES | |
| Remote Event Download & Playback | YES | |
| Mobile Surveillance | ||
| App | EagleEyes | |
| Compatible Devices | iOS & Android devices | |
| Push Status | YES | |
| Others | ||
| EaZy Networking | YES | |
| DCCS Support | YES | |
| AVTECH Free DDNS service | YES | |
| Multiplex Operation | Live display / record / playback / backup / network operations | |
| System Recovery | System auto recovery after power failure | |
| Optional Peripherals | HDMI Matrix (HDM02) / USB Joystick (AVX102) | |
