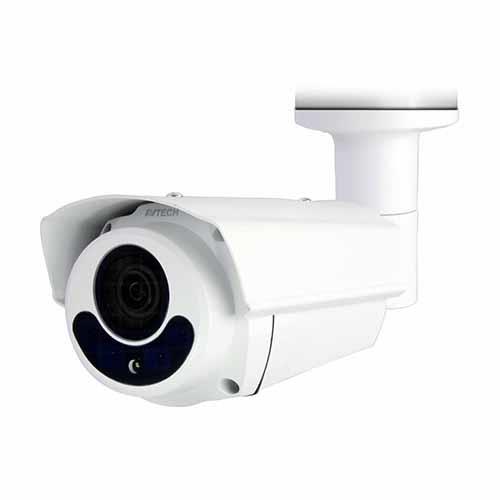

AVTech - DGM2603SVW/F36 - 2MP Ultra H.265 Starlight Bullet IP Camera

The AVTECH DGM2603SVW is a high-performance 2MP Ultra Starlight IP camera delivering 1080P video with industry-leading low-light sensitivity. It features white light LEDs for full-color night vision up to 30 metres, H.265 compression, and PoE support for simplified installation. With an IP66 rating and Cloud EaZy Networking, it provides secure, high-definition monitoring accessible anywhere via the EagleEyes app.

Key Configuration

• • Image sensor: 1/2.8" CMOS; maximum resolution: 1920 x 1080 (1080p)
• • Lens: f/3.6 mm, f/1.0; viewing angle: 105.2° diagonally, 88.4° horizontally, 47° vertically
• • Two white LEDs with an effective distance of up to 30 metres.
• • Frame rate: 30 fps; video compression: H.265/H.264/MJPEG
• • Power: PoE (IEEE 802.3af) or DC 12 V/1 A. Power consumption: 6.9 W (PoE) and 5.5 W (DC adapter).

Key Features

It features Free P2P Cloud EaZy Networking for seamless three-step setup via the EagleEyes app, alongside a unique Buddy feature for secure access sharing and instant login notifications. To maximize coverage, the camera includes a Vertical View Mode optimized for corridors and aisles, supported by DWDR, Defog, and Digital PTZ capabilities. Fully ONVIF Profile S compliant and compatible with a wide array of network protocols, it offers professional-grade features like motion detection, privacy masking, and adjustable sharpness for a tailored security experience.

Technical Context

This camera supports up to 10 concurrent users and 4 simultaneous video streams (H.265/H.264/MJPEG). Security is prioritized with IP address filtering and digest authentication, while remote monitoring is easily managed via CMS Lite or the EagleEyes app. Key technical features include automated event notifications, a precision shutter speed up to 1/10,000 sec, and an integrated real-time clock for accurate logging.

Installation Notes

Housed in an IP66-rated weatherproof casing with a net weight of 0.94 kg, this camera is built for durability in environments ranging from -25°C to 50°C. It is CE certified and compatible with AVA456 series junction boxes for a clean, professional install. For remote management, the system is optimized for Internet Explorer on Windows-based PCs (Intel Core i3/2GB RAM minimum), ensuring stable browser-based control and configuration.
