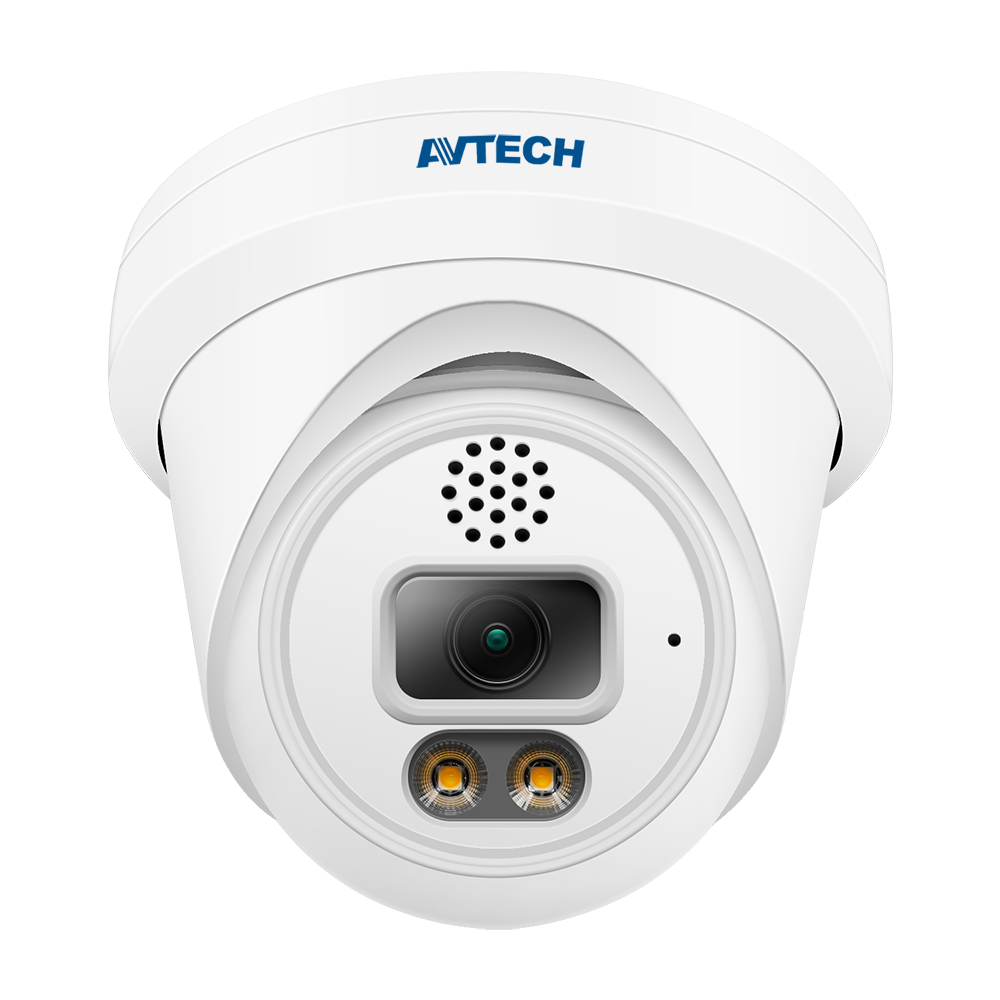

AVTech - DGM5206SVSGAT - 5MP AI-Based H.265 Dome IP Camera with Dual Lights

The AVTech DGM5206SVSGAT is an AI-powered 5MP dome camera featuring Starlight™ color night vision and a high-performance Sony sensor. Designed for active deterrence, it utilizes human and vehicle detection to trigger integrated sirens and warm light LEDs. With 120dB True WDR, two-way audio, and a rugged IP66 weatherproof rating, it offers a high-efficiency, PoE-enabled security solution for any environment.

Key Configuration

• • Image sensor: 1/2.8-inch Sony CMOS; maximum resolution: 2560 x 1944 (5 megapixels).
• • Lens: f/2.8 mm, f/1.6; diagonal viewing angle: 112°
• • Dual lights: Two units (IR and warm light); effective distance of up to 30 metres.
• • Frame rate: 5MP at 25 fps Video compression: H.265/H.264
• • Power: PoE (IEEE 802.3af) or DC 12 V; maximum power consumption <8 W

Key Features

• Starlight visibility for clear colour images at night; minimum illumination: 0.001 Lux (LED off) / 0 Lux (LED on)
• AI-based human and vehicle detection to avoid false alarms
• Dual light mechanism that switches smartly from B/W to colour at night when motion is detected
• Siren and warm lights that are triggered automatically when intruders are detected for active deterrence
• Built-in microphone and speaker for audio transmission with encoding: G.711-u/G.711-a
• WDR (120 dB);
• Image enhancement: BLC, HLC, 2D DNR, 3D DNR, AWB, MWB, AGC, defog support
• ONVIF 17.06 compatible
• Protocols: HTTP, RTSP, FTP, SMTP, DHCP, NTP, NFS, and RTMP.

Technical Context

This high-performance system offers versatile recording options with a 5MP main stream and multiple sub-stream resolutions, utilizing VBR/CBR bitrate control up to 12Mbps and an optional 256GB MicroSD slot for edge storage. It features intelligent detection modes for motion, humans, and vehicles, with a granular 22×18 grid and customizable MP3 audio alerts.

Designed for precision monitoring, the unit supports real-time clock (RTC) synchronization, advanced OSD text/image overlays, and privacy masking. It ensures hardware reliability with a 4KV lightning-proof LAN port and accommodates up to six simultaneous users across a multi-language web interface. Imaging is further refined by a wide shutter speed range, 1/25s to 1/100,000s, anti-flicker support, and flexible day/night switching.

Installation Notes

This compact unit weighs just 491 g and features an IP66-rated casing, built to withstand extreme temperatures from -30°C to 60°C. It offers flexible installation via PoE (802.3af) or 12V DC power and is compatible with specialized AVA145-WHKT or AVA23BK-WBKT mounting hardware. For optimal performance, web monitoring requires a system running Windows 7 or higher with an Intel i3 processor, 2GB RAM, and standard browsers like Internet Explorer, Edge, or Chrome.
