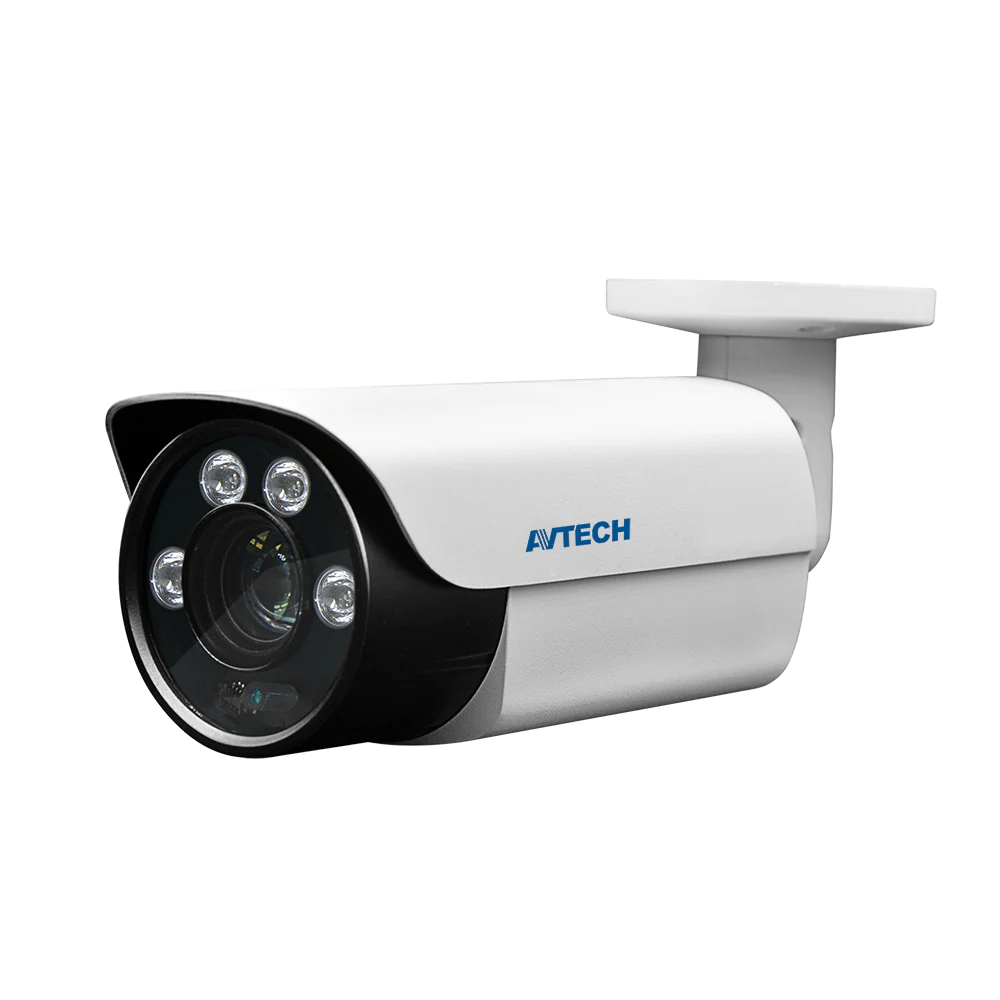

AVTech - DGM5757SVAT - 5MP AI-Based 10X H.265 IR Bullet IP Camera

The AVTECH DGM5757SVAT is an AI-driven 5MP bullet camera featuring a 10x optical zoom, 5.0–50mm, and Starlight™ color night vision. It delivers high-definition 2560×1944 video with an 80-metre IR range for total darkness. Equipped with human and vehicle detection, 120dB True WDR, and an IP67-rated weatherproof housing, it provides advanced long-range security with built-in audio and PoE support.

Key Configuration

• • Image sensor: 1/2.8-inch Sony CMOS; maximum resolution: 2560 x 1944 (5 megapixels).
• • Lens: 10x optical zoom (f5.0~50mm), F1.6~F2.2; viewing angle: 56° (wide) to 8.5° (tele), diagonally
• • IR: four LEDs; effective distance up to 80 metres
• • Frame rate: 5MP @ 25 fps Video compression: H.265/H.264
• • Power: PoE (IEEE 802.3af) or DC 12 V; maximum power consumption <8 W

Key Features

• Starlight visibility for clear color images at night; minimum illumination: 0.001 Lux (IR LED off), 0 Lux (IR LED on)
• AI-based human and vehicle detection to avoid false detection alarms
• 10X zoom lens for wider surveillance area coverage
• Built-in microphone for audio recording and line out for audio broadcasting
• External alarm I/O device connection (alarm in / alarm out)
• WDR (120dB); image enhancement: BLC, HLC, 2D DNR, 3D DNR, AWB, MWB, AGC; defog support
• ONVIF 17.06 compatible; protocols: HTTP, RTSP, FTP, SMTP, DHCP, NTP, NFS, RTMP

Technical Context

This versatile system supports high-definition 5MP streaming with flexible bitrate control and edge storage via an optional 256GB MicroSD slot. It features intelligent human, vehicle, and motion detection with customizable MP3 audio alerts and a granular 22×18 configuration grid. Designed for reliability and global use, the unit includes a 4KV lightning-proof LAN port, a multi-language web interface, and advanced OSD customization for text and image overlays. It ensures consistent performance through RTC synchronization, anti-flicker technology, and a wide-ranging auto shutter for diverse lighting conditions.

Installation Notes

This durable unit weighs 1.45 kg and is housed in an IP67-rated casing, certified for extreme environments from -30°C to 60°C. It supports flexible mounting via the AVA145-WHKT or AVM552C-HBKT and provides dual power options through PoE (802.3af) or 12V DC. For remote monitoring, a Windows-based PC with at least an Intel i3 processor and 2GB of RAM is recommended for optimal performance across all major browsers.
