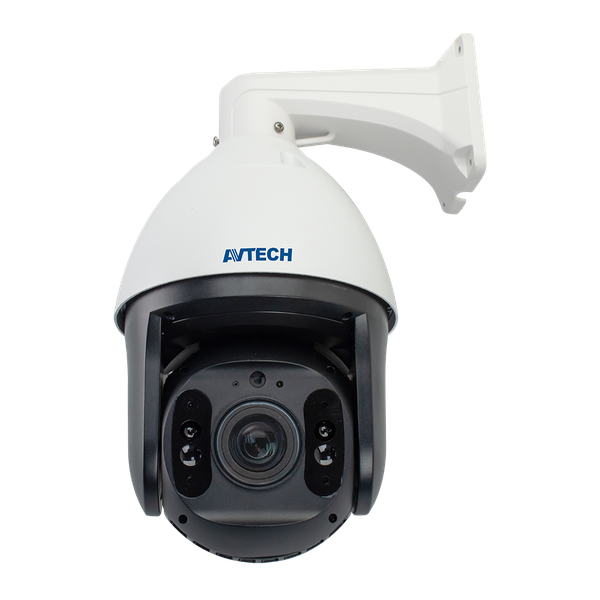

AVTech - DGM5937SVAT - 5MP H.265 33X Speed Dome IP Camera
The AVTECH 5MP H.265 33x Speed Dome IP Camera features a 1/2.8" Sony image sensor with a maximum resolution of 5MP. It provides 33x optical zoom f4.7–155 mm with autofocus, starlight visibility for colour images at night and an IR effective range of 200 metres. The camera supports PTZ with continuous 360° pan and 0–90° tilt with auto-flip, as well as DWDR, microSD up to 128 GB, PoE (IEEE 802.3at), and ONVIF Profile T compliance.
Key Configuration
• 5MP Sony Sensor: High-resolution 2592 x 1944 imaging for superior forensic detail.
• 33x Optical Zoom: Professional 4.7–155mm autofocus lens for long-range precision.
• 200m IR Range: Four high-power LEDs for visibility up to 200 metres in 0 Lux.
• Pro PTZ Control: High-speed 360° pan and 90° tilt with seamless auto-flip tracking.
• Dual Power: Flexible PoE+ (802.3at) or 12V DC support with a 30W max draw.
Key Features
Equipped with Starlight™ technology, this camera delivers vivid color imagery in near-total darkness and features advanced image processing, including 3D DNR and DWDR, for superior clarity. It utilizes high-efficiency H.265 compression for smooth 30 fps streaming and offers robust automation with 128 preset points and 4 tour groups. Built for seamless integration, the unit is ONVIF Profile T compliant, supports bi-directional audio, and is compatible with a wide range of standard network protocols.
Technical Context
This system features a high-precision lens offering viewing angles from 69.5° (Wide) to 2.7° (Tele), supported by proportional zoom and 180° auto-flip for seamless tracking. It includes customizable MP3 audio alerts, granular motion detection up to 22×18, and four-zone privacy masking. Designed for multi-user access, it supports six concurrent viewers and ensures precise synchronisation via NTP/RTC.
Installation Notes
Designed for high-reliability deployment, this IP66-rated unit features a robust 5 kg chassis engineered to operate in extreme environments from -40°C to +60°C. It offers versatile integration via PoE (IEEE 802.3at) or local 12V DC power, with a full suite of mounting options including wall, corner, pole, and pendant configurations. Fully CE/FCC certified, it ensures consistent performance across humidity levels of 30% to 90%.
| Device | |
|---|---|
| Image Sensor | 1/2.8" SONY image sensor |
| Max. Resolution | 2592 × 1944 (5MP) |
| Lens | f4.7 ~ 155 mm / F1.5 ~ F4.0 (Auto Focus) |
| Viewing Angle (Wide) | 69.5° (H) / 60.5° (V) / 35.1° (D) |
| Viewing Angle (Tele) | 2.7° (H) / 2.3° (V) / 1.3° (D) |
| Auto Focus | Auto / Semi-automatic / Manual |
| Min. Illumination | 0.001 Lux / F1.5 (Wide) ~ F4.0 (Tele), 0 Lux (IR LED ON) |
| Shutter Speed | 1/50(1/60)s to 1/10,000s |
| IR LED | 4 units |
| IR Effective Distance | 200 meters |
| Day / Night | YES |
| WDR Mode | DWDR |
| RTC (real-time clock) | NTP / Manual |
| Micro SD Card Slot | YES |
| Video | |
| Compression | H.265 / H.264 |
| Video Resolution (Main Stream) | 2592×1944 / 2560×1440 / 2688×1520(2560×1440) / 2048×1520 (2304×1296) / 1080P / 720P |
| Video Resolution (Sub Stream) | 704×576 |
| Frame Rate | 30 IPS |
| Video Profile | High Profile / Main Profile / Base Profile |
| Multiple Video Streaming | 2 streams |
| S/N Ratio | More than 52dB (AGC off) |
| Bitrate Control | CBR / VBR |
| Image Mode | Normal / Super Starlight / Forced Frame Rate |
| Image Enhancement | |
| Image Enhancement | DWDR / BLC / HLC / 2D DNR / 3D DNR |
| Day / Night Switch | Manual / Auto |
| Forced Anti-flicker | YES |
| Defog | YES |
| White Balance | AWB |
| Image Orientation | Flip / Mirror |
| Privacy Mask | 4 customized areas |
| Text Overlay | YES |
| OSD Title | Location / font size / text configurable; English & Chinese characters supported |
| Audio | |
| Line in | YES |
| Line out | YES |
| Encoding | G711 / G711A / AAC |
| Audio Adjustment | Input & Output |
| Alarm & Event | |
| Detection Mode | Day & Night / Motion |
| Detection Schedule | YES |
| Motion Detection Area | 1×1, 2×2, 3×3, 3×4, 4×4, 8×8, 16×16, 22×18 |
| Detection Alert | Audio alert with customized mp3 audio file(s) |
| Storage | |
| On-Board Storage | Built-in memory card slot, supports microSD / SDHC / SDXC card up to 128GB |
| Overwrite | YES |
| Maximum Recording Time per File | 2, 5, 10, 20 & 30 minutes configurable |
| Recording Schedule | YES |
| Network | |
| LAN Port | RJ45 connector × 1 |
| LAN Speed | 10/100 Base-T Ethernet |
| Supported Protocols | RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP |
| ONVIF Compatible Version | 2.4 / Profile T |
| Number of Online Users | 6 |
| Security | User authentication (ID and PW) |
| Remote Access | Web |
| PTZ Mechanism | |
| Pan Range | 360° continuous rotation |
| Pan Speed | 0.1°～300°/s |
| Tilt Range | 0～90° with auto-flip |
| Tilt Speed | 0.1°～180°/s |
| Auto-flip | Tilt down 90°, with auto-flip 180° |
| Zoom Ratio | 33X Optical Zoom |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Preset Points | Up to 128 preset points |
| Tour | Up to four groups can be set with speed and part time setting |
| General | |
| Web Interface Language | English, Korea, Traditional Chinese, Simplified Chinese, Turkish, Italian, German, Russian & Croatian |
| Operating Temperature | -40°C～+60°C |
| Operating Humidity | 30% ~ 90% |
| PoE | YES |
| Power Source (±10%) | PoE (IEEE802.3at) / DC12V (4A) |
| Power Consumption (±10%) | 30W Max. |
| Net Weight | 5 kg |
| Installation | Wall / Corner / Pole / Pendant installation |
| Certification | CE / FCC |
| Casing / Ingress Protection | IP66 |
| Minimum Web Browsing Requirements | |
| Processor | Intel Core i3 or higher, or equivalent AMD |
| RAM | 2GB RAM |
| Graphics | AGP graphics card, Direct Draw, 32MB RAM |
| Operating System | Windows 10, Windows 8, Windows 7, DirectX 9.0 or later |
| Web Browser | Internet Explorer 6 or above (Windows Edge not supported) |
