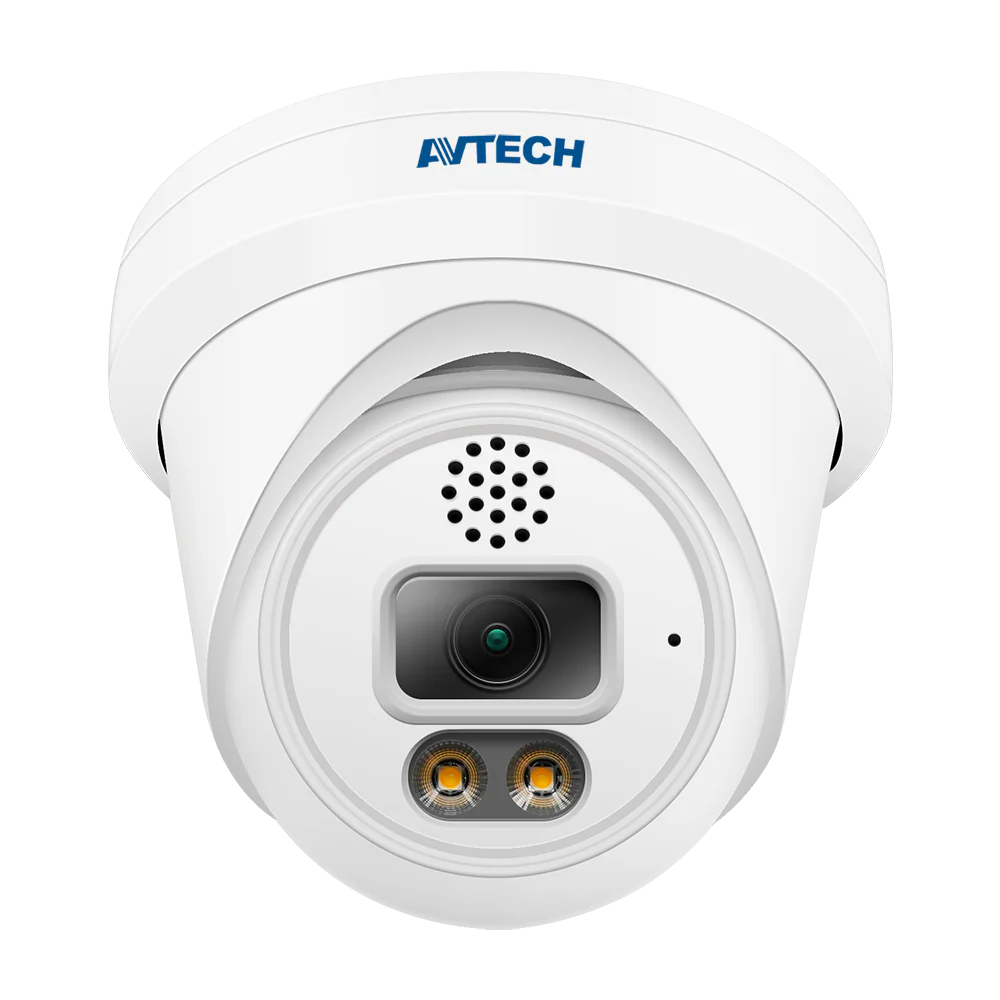

AVTech - DGM8208SVGAT - 8MP AI-Based Dome IP Camera with Dual Lights
Part number:
Price:
AVTECH DGM8208SVGAT is an AI-based 8MP H.265 dome IP camera with dual lights (IR and warm light LED). It features Starlight visibility for clear color images at night, AI-based human/vehicle detection to avoid false alarms, and built-in siren for deterrence. The camera includes built-in microphone and speaker for audio transmission, WDR, PoE support, and ONVIF standard compliance.
Key Configuration
• Resolution: 8MP- • Compression: H.265
- • Dual lights: IR and warm light LED
- • Edge storage: microSD up to 256GB
- • Power: PoE (Power-over-Ethernet)
• Starlight visibility for clear color images at night
• AI-based human and vehicle detection to avoid false detection alarms
• Dual lights mechanism: smartly switches images from B/W to color at night when motion is detected
• Siren triggered automatically when intruders are detected
• Built-in microphone and speaker for audio transmission
• WDR (Wide Dynamic Range) to increase image recognizability in overexposure and dark areas
• ONVIF standard supported for system integration
• Remote surveillance; compatible with Internet Explorer 6 and above, Microsoft Edge, and Google Chrome
| Main | |
|---|---|
| Sensor | 1/2.8" SONY CMOS |
| Max. resolution | 3840 × 2160 |
| Lens | f2.8 mm / F1.6 |
| Viewing angle | 112° (Diagonal) |
| Min. lighting | 0.001 Lux (LED off), 0 Lux (LED on) |
| Shutter speed | AUTO, 1/25s ~ 1/100000s |
| IR LEDs | 2 dual light (IR & warm) units |
| IR effective distance | Up to 30 meters |
| Day / Night | YES |
| WDR mode | YES (120dB) |
| RTC (Real Time Clock) | YES |
| MicroSD card slot | YES (up to 256GB) |
| Video | |
| Compression | H.265 / H.264 |
| Video resolution | Main Stream: 8MP (3840×2160) / 6MP (3072×2048) / 5MP (2592×1944) / 4MP (2560×1440) / 2MP (1080P) / 720P Sub Stream: 2MP (1080P) / 720P / 720×480 / VGA / 640×360 / 480×360 / CIF |
| Frame rate | 4K (8MP) @ 20 fps |
| Video profile | High profile / Main profile / Base profile |
| Multiple video streams | 3 streams |
| Bit rate control | 512 Kbps – 12 Mbps, VBR / CBR |
| Image Enhancement | |
| Beautifying photos / Features | WDR / BLC / HLC / 2D DNR / 3D DNR / AWB / MWB / AGC |
| Day/Night switching | Auto / Color / B/W / Timing |
| Forced flicker suppression | YES |
| Fog removal | YES |
| White balance | Auto / Manual |
| Image orientation | Rotate / Mirror |
| Privacy mask | YES |
| Text overlay | YES |
| OSD name | Location / font size / text configurable; text input (English & Chinese characters) and image upload (BMP) supported |
| Audio | |
| Built-in microphone | YES |
| Speaker | Built-in YES |
| Audio coding | G.711-u / G.711-a |
| Sound adjustment | YES |
| Detection & Alert | |
| Detection mode | Motion / Human / Vehicle Detection |
| Discovery schedule | YES |
| Motion detection area | 1×1, 2×2, 3×2, 3×3, 4×3, 4×4, 8×8, 16×16, 22×18 |
| Detection Alert | Audio alert with customized mp3 audio file(s) |
| Storage | |
| Inner memory | Built-in memory card slot, supports microSD / SDHC / SDXC card up to 256GB |
| Overwriting | YES |
| Maximum recording time per file | 1, 2, 3, 5, 10, 20 & 30 minutes configurable |
| Recording Schedule | YES |
| Network | |
| LAN ports | RJ45 connector × 1 / 4KV lightning-proof |
| LAN speed | 100 Mbps Base-T Ethernet |
| Supported protocols | HTTP / RTSP / FTP / SMTP / DHCP / NTP / NFS / RTMP |
| Compatible with ONVIF | ONVIF 17.06 compatible |
| Number of connected users | 6 |
| Remote login / Web browser | Internet Explorer 6 and above (recommended), Microsoft Edge & Google Chrome |
| Web interface language | English, Traditional Chinese, Simplified Chinese, Russian, German, Italian, Turkish, Korean |
| Environmental & Power | |
| Working temperature | -30°C ~ 60°C |
| Working humidity | 10% – 90% RH |
