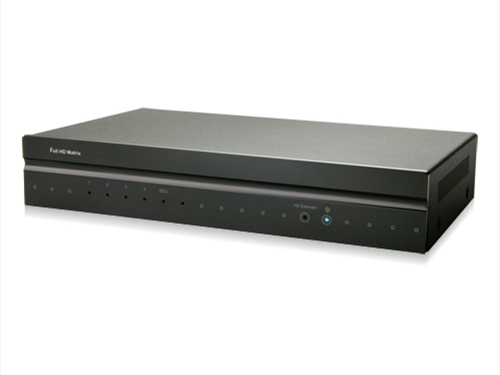

This full HD matrix is able to combine up to 4 HDMI signals to a single HDMI display with control. To have one more display with control, an optional lHD video extender, AVX916R, could be used.
Features:
- HDMI Matrix is able to combine HDMI signals to single HDMI display with control. To have one more display with control, an optional HD video extender, AVX916R, could be used.
- Quad / full / sequence mode can be switched by mouse to display
- With LED indications, user can easily perceive the unusual connection for troubleshooting immediately.
| Specifications | |
| Hardware | |
| Input | HDMI port - 4 |
| Output | HDMI port - 1 |
| HDMI YUV | Input - 4:2:2 16bit |
| BNC | SDI (With Mouse Control) |
| LED Indications | YES |
| Power Supply (±10%) | 12V |
| Version of HDMI specification | HDMI 1.4 |
| HDMI Plug-and-play support | YES |
| Operating Temperature | 0°C ~40°C (50°F~104°F) |
| Software | |
| OSD sequence configuration | YES |
| Monitor Display | Quad / Full Screen |
| HDMI video output resolution error display | YES |
