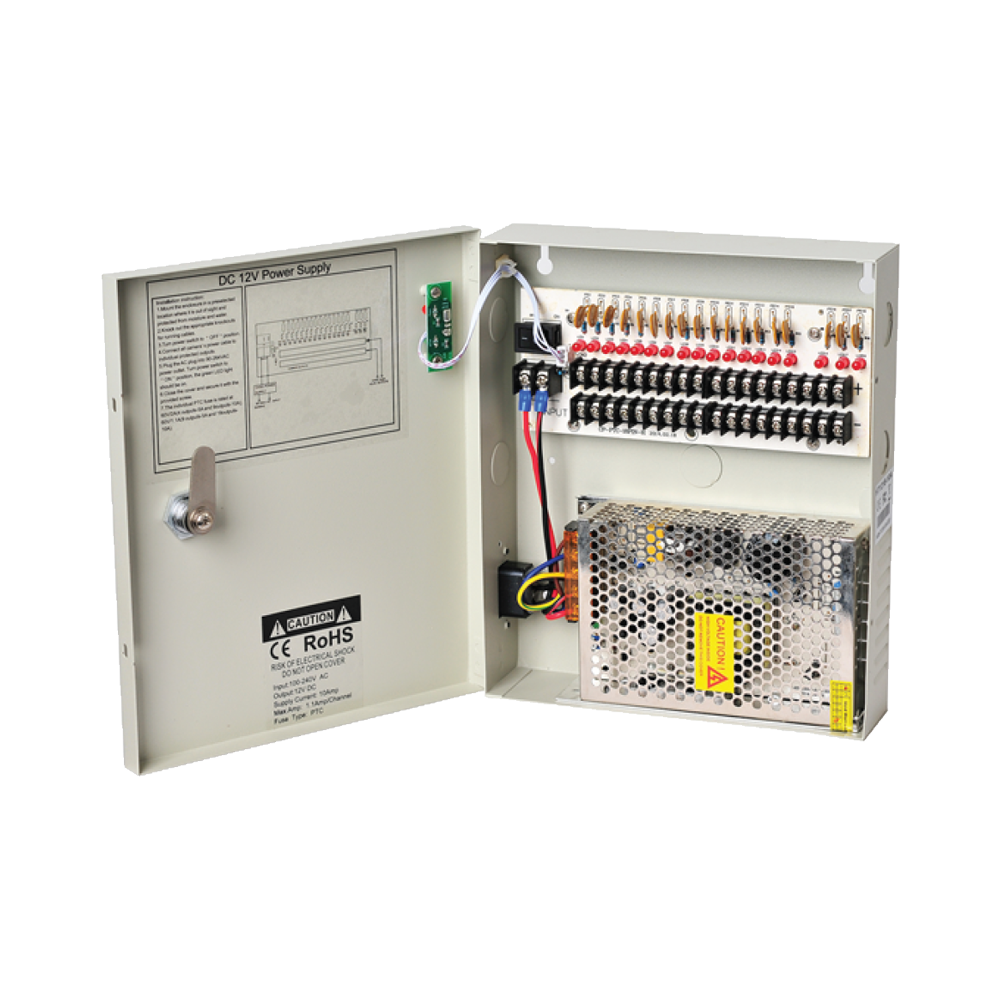

AVYCON - AVA-PSW-12VDH10A-18 - 12VDC, 10 Amp, 18 Channel Power Distribution Box, AC100-240V Free Voltage
Part number:
AVA-PSW-12VDH10A-18
Price:
The AVA-PSW-12VDH10A-18 is a power distribution box with 12VDC, 10 Amp, 18 Channel Power Distribution Box, AC100-240V Free Voltage.
| GENERAL | |
| Input | AC100 ~ 240V (50/60Hz) |
| Output | DC 12V, 10A |
| Channels | 18 Channels |
| Fuse Type | PTC1.1A (Resettable) |
| Certification | CE, FCC |
| Dimensions | 9.84" x 8.46" x 2.32" (250mm x 215mm x 59mm) |
Name
Description
Size
Downloads
File
Datasheet
2mb
