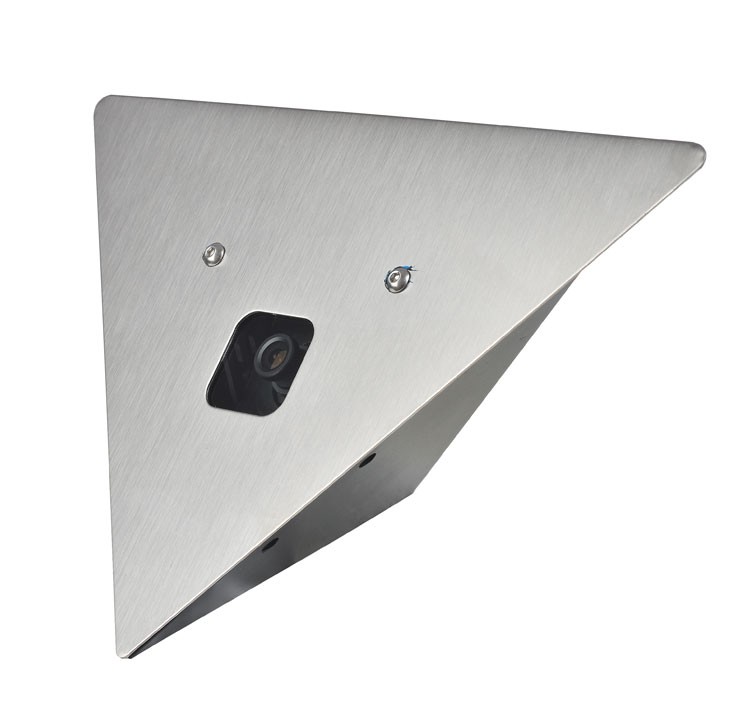

AVYCON - AVC-CMT91FT - 2.1MP HD-TVI Corner Mount Elevator Type Camera, 2.8mm Lens

Product Overview

The AVYCON AVC-CMT91FT is a specialized 2.1MP HD-TVI corner-mount camera tailored for elevator interiors and indoor surveillance. It utilizes a 1/2.7" sensor and a 2.8mm fixed lens to provide an expansive 116° horizontal field of view, ensuring wall-to-wall coverage in confined spaces. Recording at 1080P (30 fps), the camera maintains clarity in low light down to 0.01 Lux. For easy integration and setup, it supports Control over Coax (CoC) and features an OSD menu that allows for a quick switch to standard analog output when needed.

Key Configuration

• • Image sensor: 1/2.7" megapixel sensor; resolution: 2.1MP (1920×1080 HD-TVI)
• • Lens: fixed 2.8mm; horizontal field of view: 116°
• • Video frame rate: 1080P @ 30 fps (NTSC)
• • Minimum illumination: 0.01 Lux (0 Lux IR ON)
• • Power: DC 12V (±10%); indoor use only

Key Features

This HD-TVI camera provides a high-fidelity signal with a 45dB+ S/N ratio and an ultra-responsive 1/100,000s electronic shutter. It features 2D DNR and Backlight Compensation to maintain clarity in reflective environments, while Control over Coax (CoC) allows for remote setting adjustments through the existing video cable.

Technical Context

Designed for natural-light environments, the unit operates without IR LEDs, utilizing its 0.01 Lux sensitivity for low-light capture. The onboard OSD menu provides a quick toggle for analog mode, ensuring compatibility with both digital HD and legacy CVBS systems.

Installation Notes

With a compact 80 × 80 × 95 mm footprint, this 1.28-lb metal unit is optimized for indoor corner mounting. It functions across a wide temperature range of -30°C to 60°C, making it a reliable choice for elevator cabs and secure indoor enclosures.
