AVYCON - AVC-LHN51SVT-A1S - 5MP Auto-tracking PTZ Bullet Camera
Part number:
AVC-LHN51SVT-A1S
Price:

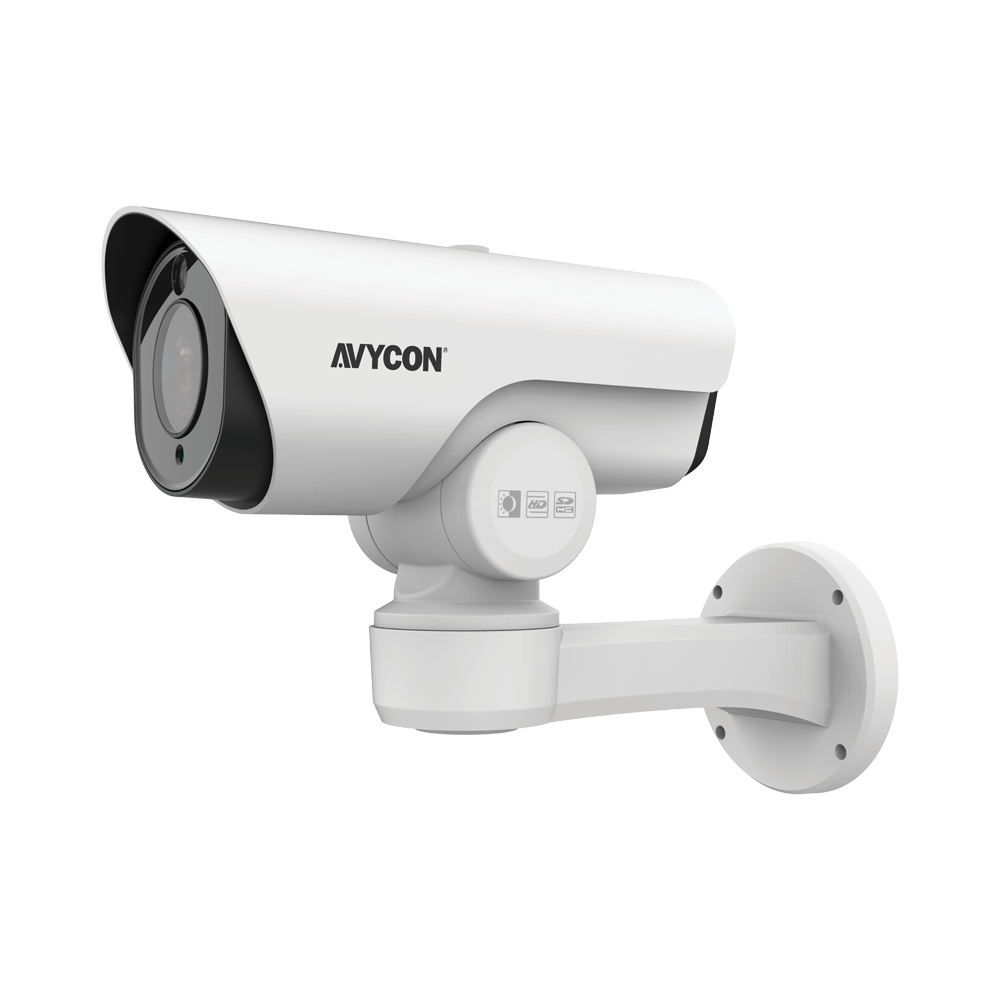

The AVYCON AVC-LHN51SVT-A1S camera is a 5MP Auto-Tracking 12X PTZ Bullet IP Camera, with a 12X Optical Zoom lens and built-in Auto-Tracking and LPR capture capabilities and PoE+ support. This camera supports True Day and Night mode, 0.005 lux sensitivity and up to 460ft. IR distance. This camera also has alarm input and output connections, a microSD slot (256GB max capacity), and is ONVIF Profile S & G compliant. Optional accessories for this camera include a Junction Box Mount and Pole Mount.
Features:
- H.265 Video Compression Technology
- 5MP (2592× 1944) H.265 Full Real Time Encoding
- Max. resolution: 2592 × 1944
- Supports Triple Streaming
- True Day & Night ICR with Starlight
- Ultra Low Light Sensitivity of 0.005Lux@F1.2 for optimal license plate captures
- Up to 460ft. Night Time Viewing Distance
- Supports PTZ Auto Tracking and 360° Endless Panning
- Video Analytics: Optional Intrusion, Line Crossing, Loitering, Tampering and Human Detection, Object Removal, Abandoned Object and People Counting
- Supports Defogging, HLC, BLC, Digital Image Stabilization, and advanced Shutter and Exposure control for LPR
- Supports Alarm Inputs and Outputs
- Supports PoE (10.5W / 20W with IR On) and DC 12V(2A)
- Supports Smartphone, iPad and Remote Monitoring
- IP66 Ingress Protection
- Operating Temperature: -40F - 140F, less than 90% RH
- Built-in micro SD card slot with video and still image capture function (up to 256GB)
| CAMERA | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.2 B/W: 0Lux with IR on |
| WDR | 120 dB Super WDR |
| Shutter Speed | 1/100,000s ~ 1s |
| IR Distance | Up to 460ft (140m) |
| Digital Zoom | 16x |
| Day & Night | True WDR - ICR Filter Auto Switch |
| Focal Length | 5.3 ~ 64mm, 12x Optical Zoom |
| Zoom Speed | 3.1 sec |
| Field of View | H57° ~ H4° / D69° ~ D5° / V44° ~ V1° |
| Min. Working Space | 1000 ~ 1500mm (Wide-Tele) |
| Aperture | F1.6 ~ F2.8 |
| PTZ | |
| Pan Range | 360° Endless |
| Pan Speed | Manual Pan Speed: 0.2° ~ 60°/s, Preset Pan Speed 100°/s |
| Tilt Range | -45° ~ 30° |
| Tilt Speed | Manual Tilt Speed: 0.2° ~ 30°/s, Preset Tilt Speed 60°/s |
| Proportional Zoom | Supported |
| Number of Presets | 255 |
| Preset Freezing | Supported |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Power Off Memory | Supported |
| PTZ Position Display | On / Off |
| 3D Positioning | Supported |
| VIDEO STREAM | |
| Max. Image Resolution | 2592 x 1944 |
| Primary Stream | (2592 x 1944): 20fps (1280 x 960, 1280 x 720, 704 x 576): 30fps |
| Secondary Stream | (704 x 576, 640 x 480, 640 x 360, 352 x 288, 320x240,320 x 192, 320 x 176): 30fps |
| Tertiary Stream | (1920 x 1080, 1280 x 720, 704 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 192, 320 x 176): 30fps |
| Video Compression | H.265+ / H.265 (HEVC) / H.264+ / H.264 / MJPEG |
| Video Bit Rate | 16Kbps ~ 16Mbps (CBR / VBR Adjustable) |
| Image Settings | Brightness / Contrast / Saturation / Sharpness |
| NETWORK | |
| Ethernet | 1 x RJ45 10M / 100M Ethernet Port |
| Network Storage | NAS (Supports NFS, SMB / CIFS) |
| Protocol | IPv4 / IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| AUDIO | |
| Audio Compression | G.71 / AAC |
| Audio I/O | N/A |
| SYSTEM | |
| Alarm I/O | 1/1 |
| Local Storage | Micro SD/SDHC/SDXC Slot (up to 256GB) with video and still image capture function |
| Advanced Function | Auto Tracking, Privacy Masking, Backlight Compensation, HLC, 2D DNR, 3D DNR, ROI, Anti-Fog, White Balance, EIS, IP Address |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Non-PoE Version) FTP Upload, SMTP Upload, SD Card Record, External Output, SIP |
| Event Action | Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| Video Analytics | Intrusion, Line Crossing, Loitering, Tampering and Human Detection, Object Removal, Abandoned Object and People Counting |
| GENERAL | |
| System Compatibility | ONVIF Profile S & G |
| Working Temperature | -40°~ 60°C (-40° ~ 140°F) |
| Working Humidity | 0~90% (Non-Condensing) |
| Power Supply | DC 12V / 2A±10% / PoE (802.3at) |
| Power Consumption | 10.5w Max / 20w Max (With IR on) |
| Ingress Protection | IP66 Rated |
| Weight | 4.4lbs (Wall Mount) / 3.9lbs (Pedestal Mount) |
| Dimensions | Wall Mount: 6.29” x 10.76” x 8.26” (160mm x 273.5mm x 210mm) Pedestal Mount: 8.58” x 4.72” x 6.77” (218MM x 120mm x 172mm) |
