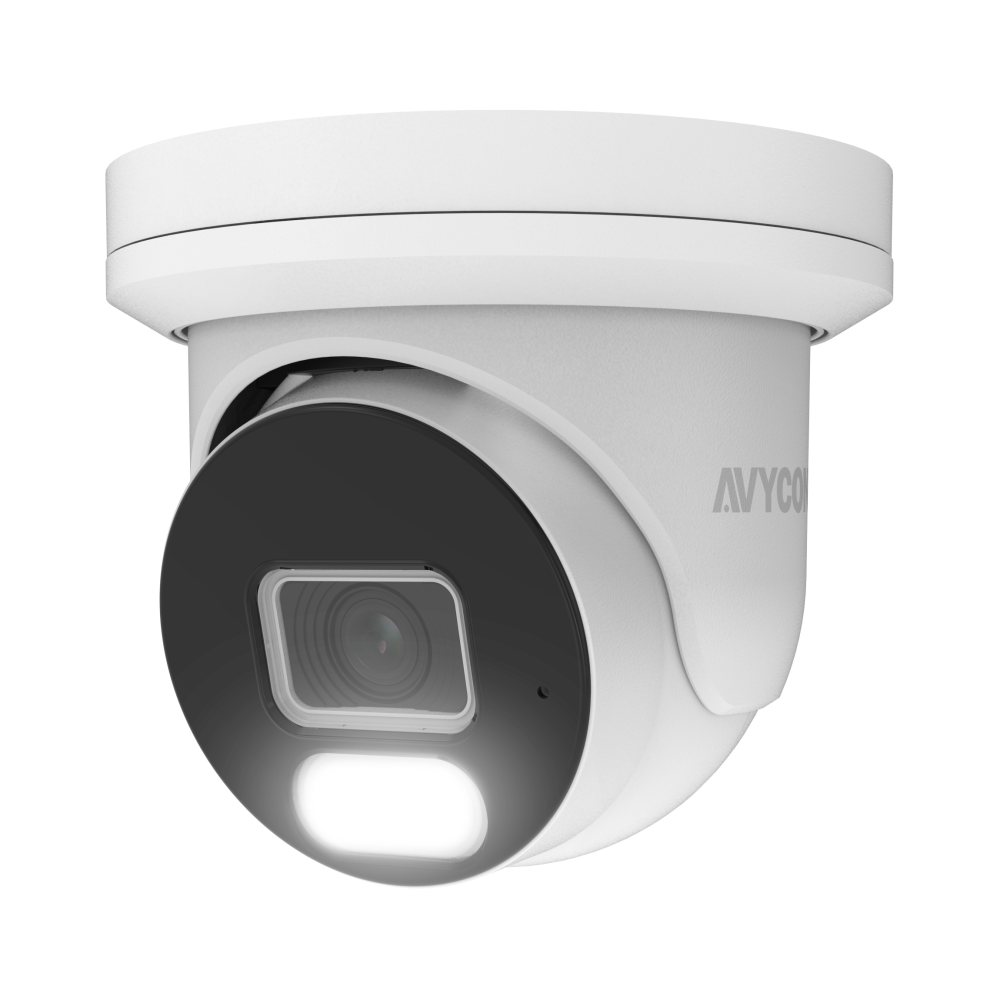

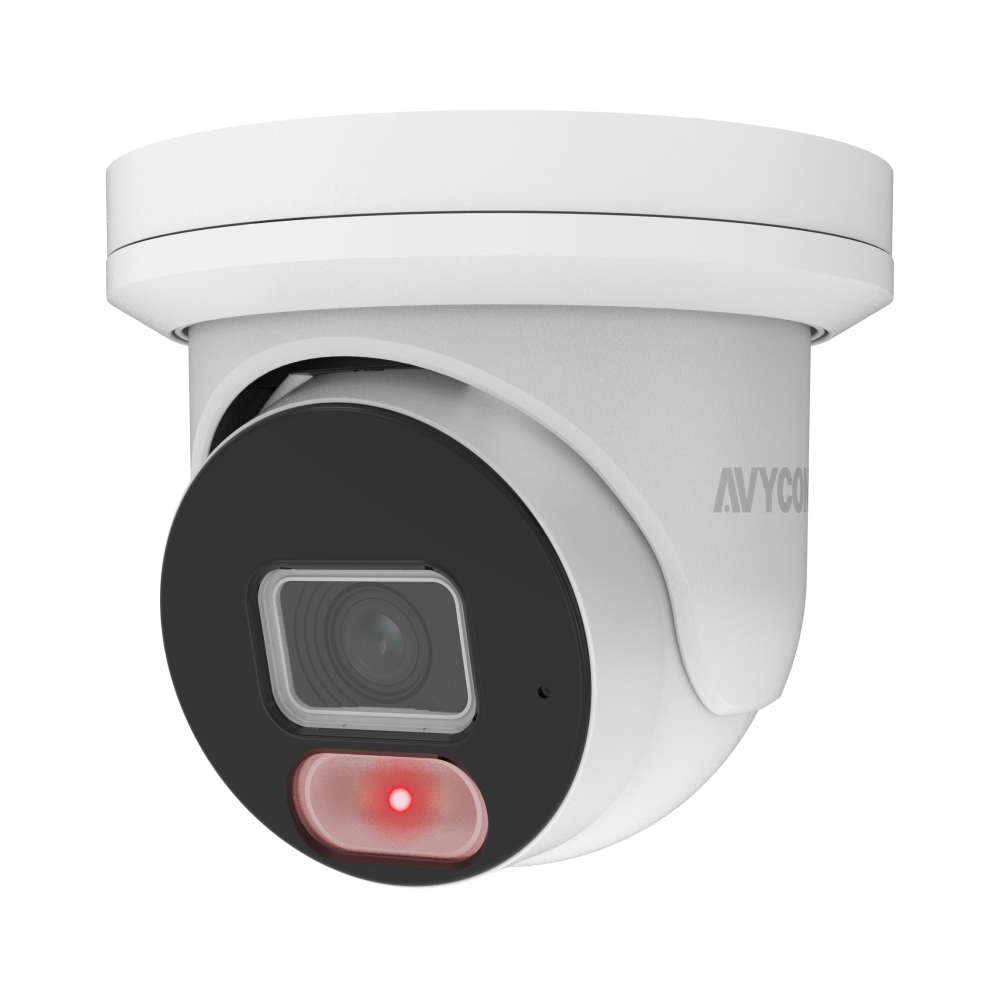

AVYCON - AVC-NBE81F28-B - 8MP DUAL LIGHT INFINITECOLOR TURRET NETWORK CAMERA
Product Overview
The AVC-NBE81F28 is an 8MP Dual Light InfiniteColor turret network camera designed for high-resolution surveillance in day, night, and mixed-light environments. It combines 4K video resolution, a fixed 2.8mm lens, dual white-light and infrared illumination, built-in audio, AI detection, and IP67 outdoor protection.
Key Configuration
Model: AVC-NBE81F28 | Product Type: Turret Network Camera | Resolution: 8MP / 3840 x 2160 at 15fps | Lens: 2.8mm fixed lens / F1.6 | Illumination: White Light LED and Infrared LED | Storage: Micro SD up to 512GB | Power: PoE / DC12V
Key Features
· 8MP video recording at 3840 x 2160 resolution up to 15fps
· H.265 and H.264 video compression support
· Dual Light operation with Full Color mode and IR mode
· Built-in microphone for audio capture
· Built-in Micro SD card slot supporting up to 512GB local storage
· AI detection support for intrusion, tripwire, loitering, region entrance, and region exiting events
· IP67 ingress protection for outdoor rain and dust resistance
Technical Context
The camera uses a Dual Light design that combines white-light illumination for full-color imaging with infrared illumination for traditional night monitoring. Its 3D DNR and D-WDR functions help improve image clarity in low-light scenes, noisy images, and environments with uneven lighting.
Installation Notes
The AVC-NBE81F28 supports both PoE and DC12V power input, giving installers flexibility for new or existing network camera deployments. Remote viewing and management are supported through the AVYCON ONE mobile app and AVYCON CMSONE CMS software.
| Video | |
| Imaging Device | 1/2.7" |
| Effective Pixels | 8MP 3840(H)×2160(V) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color 0.009lux @ F1.6 (AGC ON) ; B/W 0 lux @ IR ON |
| Lens Type | |
| Focal Length (Zoom Ratio) | 2.8mm Fixed |
| Max. Aperture Ratio | F No. 1.6 |
| Angular Field of View | Horizontal: 110°, Vertical: 58°, Diagonal: 133° |
| Min. Object Distance | 6.56ft(2m) |
| Lens Type | Fixed(M12) |
| Operational | |
| IR LED | 1 |
| White Light | 2 |
| IR Viewable Length | Up to 82ft(25m) |
| White Light Viewable Length | Up to 65ft(20m) |
| Type of complementary light | Default white light, switchable infrared light |
| Motion Detection | Smart Motion Detection (Pedestrian & Vehicle Detection) |
| Wide Dynamic Range | DWDR |
| Digital Noise Reduction | 3D DNR |
| Day & Night | Full Color (default) / Day&Night / Smart Illumination |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| Edge Storage | Micro SD/SDHC/SDXC Slot (512GB) |
| Alarm I/O | N/A |
| Audio I/O | Built-in MIC |
| Hardware Reset | Yes |
| Smart Feature | Intrusion Detection (ID), Tripwire Detection (TD), Loitering Detection (LD),Region Entrance / Exiting Detection |
| Network | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.264 |
| Resolution | Main Stream@15fps : 8MP(3840x2160) Sub Stream@15fps : 1080P(1920x1080) |
| Video Quality Adjustment | 512Kbps ~ 6Mbps |
| Bitrate control method | CBR/VBR |
| IP | IPv4 |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP,SMTP, NTP, HTTPS |
| Application Programming Interface | ONVIF, REST API |
| Web Viewer | IE10/11 |
| Environmental | |
| Operating Conditions | -31~140F(-35~+60°C/less than < 90% RH |
| Ingress Protection | IP67 |
| Electrical | |
| Input Voltage / Current | D12V/PoE(IEEE802.3af) |
| Power Consumption | DC12V: max 5.6W； PoE(48V): max 7.2W |
| Mechanical | |
| Material | Metal |
| Dimensions (HxWxD) | 3.96 x 3.46in (100.5 x 87.9mm) |
| Weight | 0.92lbs (420.1g) |
