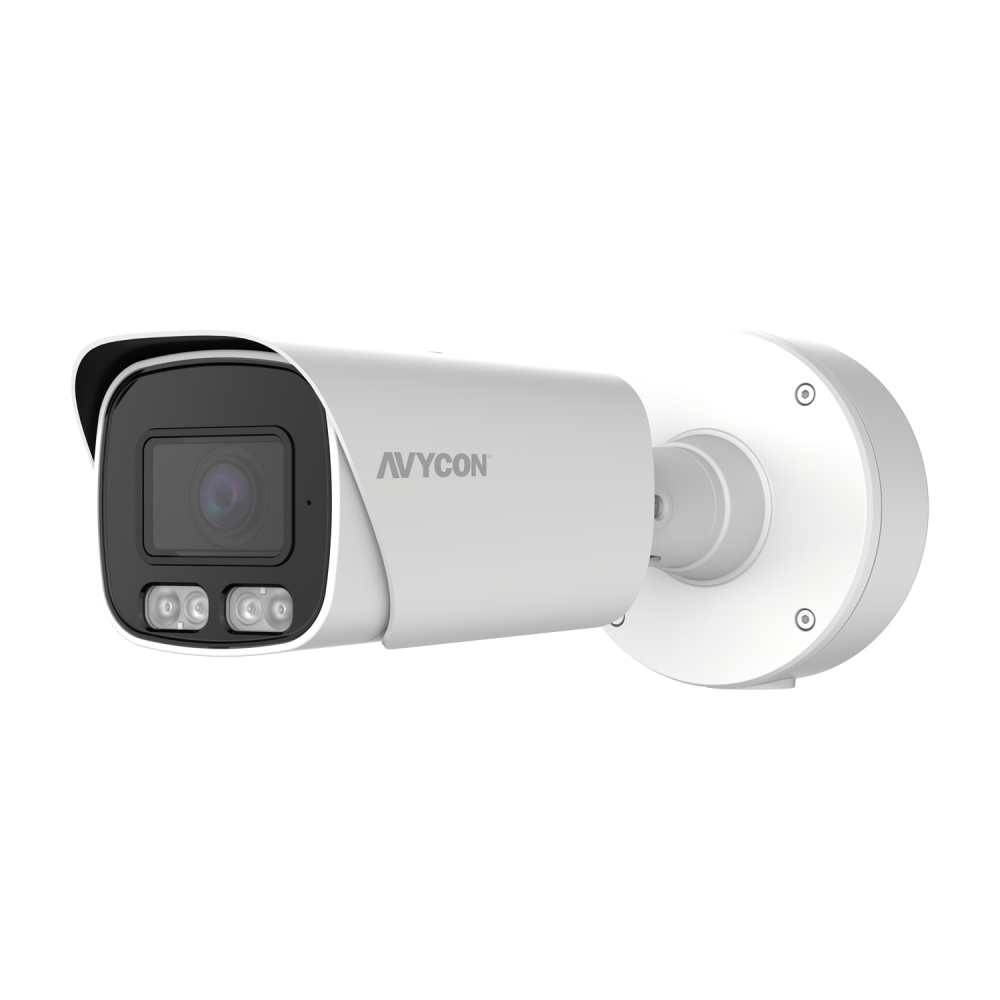

AVYCON - AVC-NCB51M-IK - 5MP H.265 INFINITECOLOR MOTORIZED LENS BULLET CAMERA
Product Overview
The AVYCON AVC-NCB51M-IK is a 5MP H.265 InfiniteColor motorized lens bullet camera designed for high-resolution outdoor surveillance. It combines a 2.7-13.5mm motorized lens, intelligent analytics, white light illumination, onboard storage, and rugged IP67/IK10/NEMA 4X protection.
Key Configuration
Model: AVC-NCB51M-IK | Product Type: 5MP H.265 InfiniteColor Motorized Lens Bullet Camera | Resolution: 2880x1620 @ 30fps | Lens: 2.7-13.5mm motorized lens | Storage: microSD up to 512GB | Protection: IP67 / IK10 / NEMA 4X
Key Features
· 5MP video resolution up to 2880x1620 at 30fps
· H.265+, H.265, H.264+, H.264, and MJPEG encoding support
· 2.7-13.5mm motorized lens for flexible field-of-view adjustment
· 3D DNR, WDR, HLC, BLC, and ROI encoding for improved image performance
· Intelligent analytics for advanced event detection and monitoring
· White Light LED for enhanced color visibility in low-light scenes
· Built-in microSD card slot for video and still image capture up to 512GB
· DC12V and PoE power supply support
Technical Context
The AVC-NCB51M-IK uses efficient H.265/H.264 compression options to reduce bandwidth and storage demand while maintaining detailed 5MP image quality. Its motorized lens allows installers to remotely adjust the surveillance range, while image enhancement functions such as WDR, HLC, BLC, 3D DNR, and ROI encoding help maintain usable video in varied lighting conditions.
Installation Notes
The camera supports both DC12V and PoE power, giving installers flexibility during deployment. Its IP67, IK10, and NEMA 4X-rated housing makes it suitable for outdoor installations exposed to rain, dust, impact risk, and demanding environmental conditions, with remote access available through AVYCON ONE and AVYCON CMSONE.
| Video | |
| Imaging Device | 1/2.7" Progressive CMOS |
| Resolution | Main Stream: 2880x1620, 2560x1440, 2304x1296, 1920x1080, 1280x720 Sub Stream: 1280x720, 640x480, 320x240 Mobile Stream: 640x480, 320x240 |
| Max. Framerate | Main Stream: Max. 30fps/25fps (60Hz/50Hz) Sub Stream: Max. 30fps/25fps (60Hz/50Hz) Mobile Stream: Max. 30fps/25fps (60Hz/50Hz) |
| Min. Illumination | Color: 0.002 lux @ F1.2 (AGC on) B/W: 0 lux (IR LED on) |
| Compression | Video: H.265+/H.265 Main Profile, H.264+/H.264 High Profile, MJPEG (Sub Stream Only) Audio: G.711a / G.711u |
| Bitrate Control | CBR or VBR (256Kbps ~ 8Mbps) |
| Lens | |
| Focal Length (Zoom Ratio) | 2.7~13.5mm Motorized |
| Max. Aperture Ratio | F1.2 |
| Angular Field of View | Horizontal: 113°(W)~35°(T), Vertical: 59°(W)~20°(T), Diagonal: 138°(W)~41°(T) |
| Min. Object Distance | 4.92ft (1.5M) |
| Focus Control | Simple Focus |
| Lens Type | Motorized (Ø16.7) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Adjustment | Manual Adjustment |
| Operational | |
| Camera Title | Title Displayed up to 32 characters |
| Day & Night | AUTO (ICR) / Full Color Mode |
| Exposure Compensation | BLC, HLC, WDR |
| Digital Noise Reduction | 3D DNR |
| Digital Image Stabilization | N/A |
| Motion Detection | Rectangle Grid (8 Levels of Sensitivity) |
| Privacy Masking | 4 Rectangle Zones |
| Gain Control | AUTO |
| White Balance | AUTO / MANUAL |
| LDC | N/A |
| Eletronic Shutter Speed | AUTO / Manual (1/5 ~ 1/20000s) |
| Video Rotation | Flip / Mirror |
| Analytics | Face Detection (FD), Pedestrian & Vehicle Detection (PD&VD), Intrusion Detection (ID), Line Crossing Detection (TD), Tripwire Counting (TC), Stationary Object Detection (OBJ), Heat Map (HM), Crowd Density Detection (CD), Queue Length Detection (QD), License Plate Detection (LPR), Rare Sound Detection (RSD) |
| Alarm I/O | 1 Input / 1 Output |
| Alarm Triggers | Motion, Alarm, Sound Detection |
| Alarm Events | Warning Light, Notification via E-mail, Image file upload via FTP, Video file upload via FTP, Image file upload to Cloud (Dropbox), Video file upload to Cloud (Dropbox), Micro SD recording at event triggered, Event Push via HTTP / UDP |
| Audio In | 1 Line-In (RCA), Built-in MIC |
| Audio Out | 1 Line-Out (RCA), Built-in Speaker |

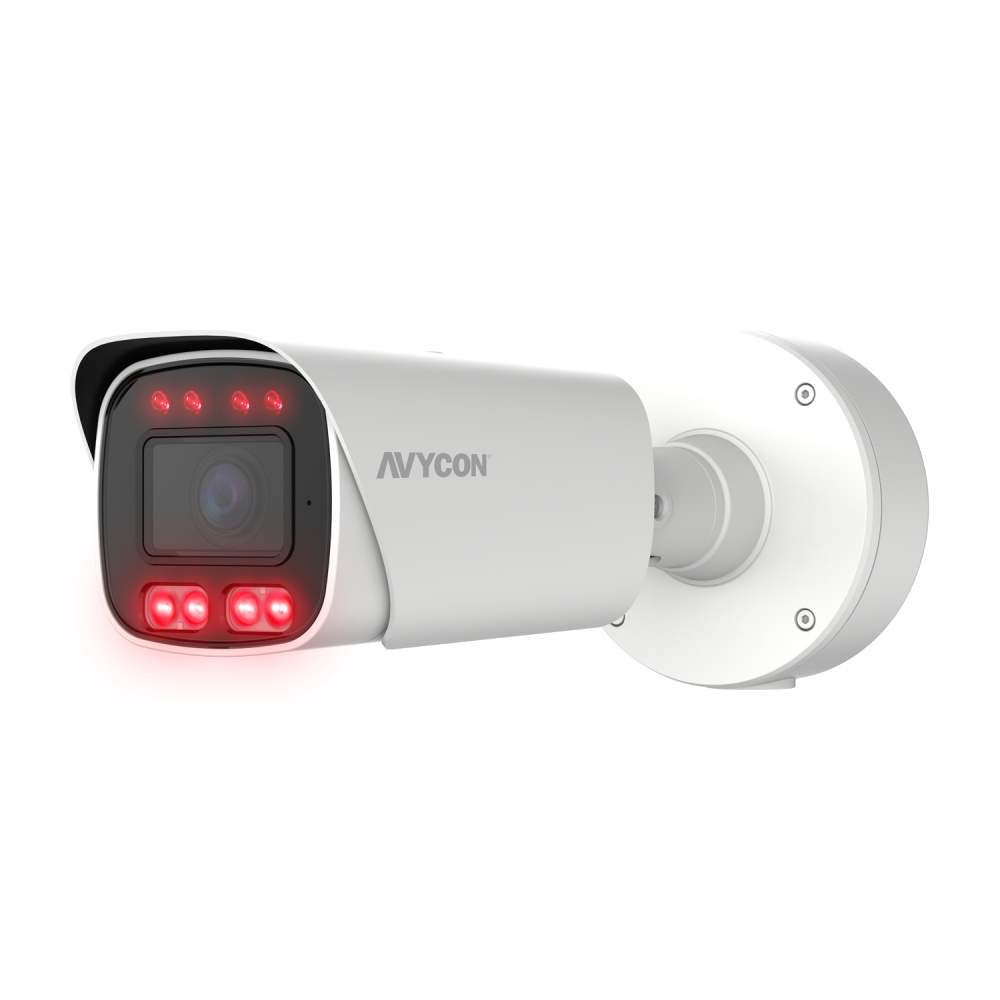

| IR Viewable Length | 131ft (40M) |

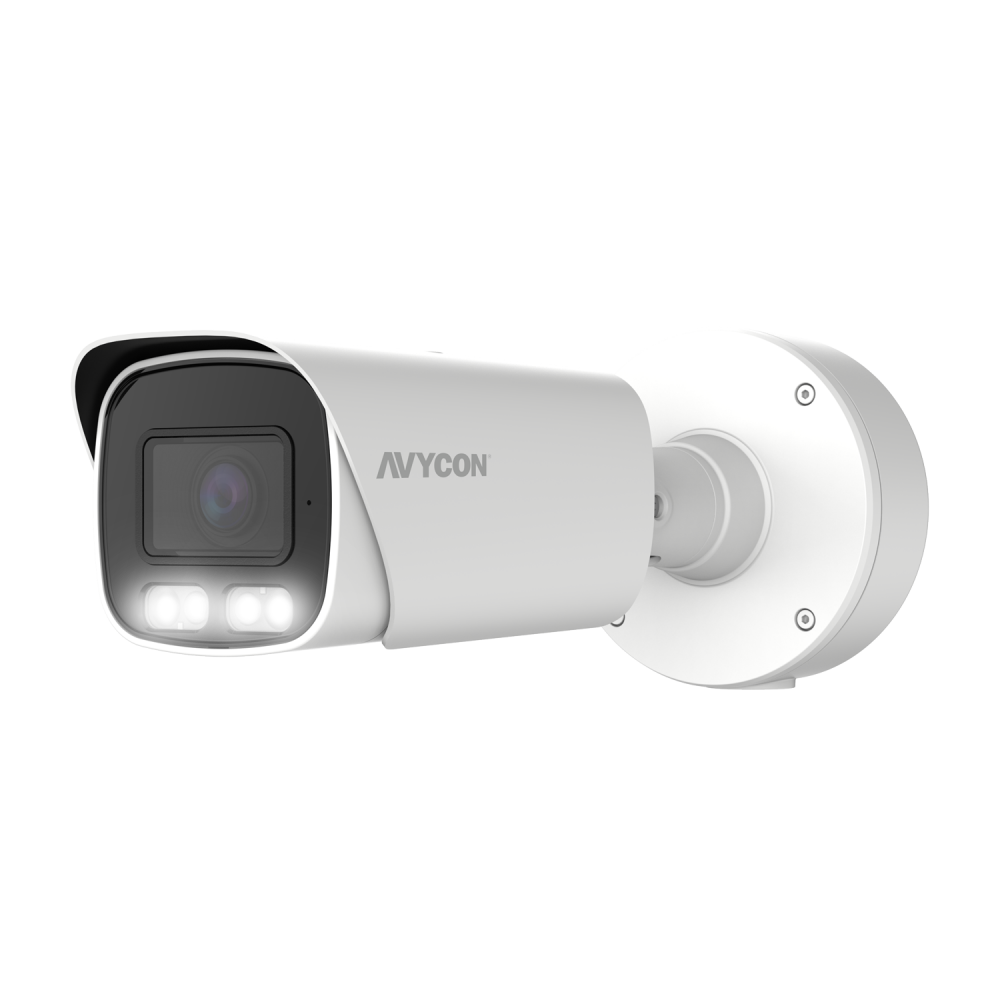

| White Light LED | 82ft (25M) |
| Network | |
| Ethernet | RJ45 (10/100BASE-T) |
| Streaming | Unicast / Multicast |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, RTMP (v8.2.3 firmware and above) |
| Security | Login Authentication, IP Address Filtering, User access log |
| Application Programming Interface | ONVIF Profile S/G/T/M, REST API |
| General | |
| Webpage Language | English, Korean |
| Edge Storage | Micro SD/SDHC/SDXC Slot (up to 512GB) with video and still image capture function |
| Memory | N/A |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -31°~140°F (-35°~+60°C) / less than 95% RH |
| Storage Temperature / Humidity | |
| Certification | IP67 / IK10 / NEMA 4X / NDAA |
| Input Voltage | PoE (IEEE802.3at) / 12VDC |
| Power Consumption | DC12V: Max 8.7W / PoE(48V): Max 11.1W |
| Mechanical | |
| Color / Material | White / Metal |
| Product Dimensions / Weight | Ø5.29x13.86 in (Ø134.34x351.92mm) / 1.83lbs (829g) |
| DORI (EN62676-4-STANDARD) | |
| Detect (25PPM / 8PPF) | |
| Observe (63PPM / 19PPF) | |
| Recognize (125PPM / 38PPF) | |
| Identify (250PPM / 76PPF) | |
