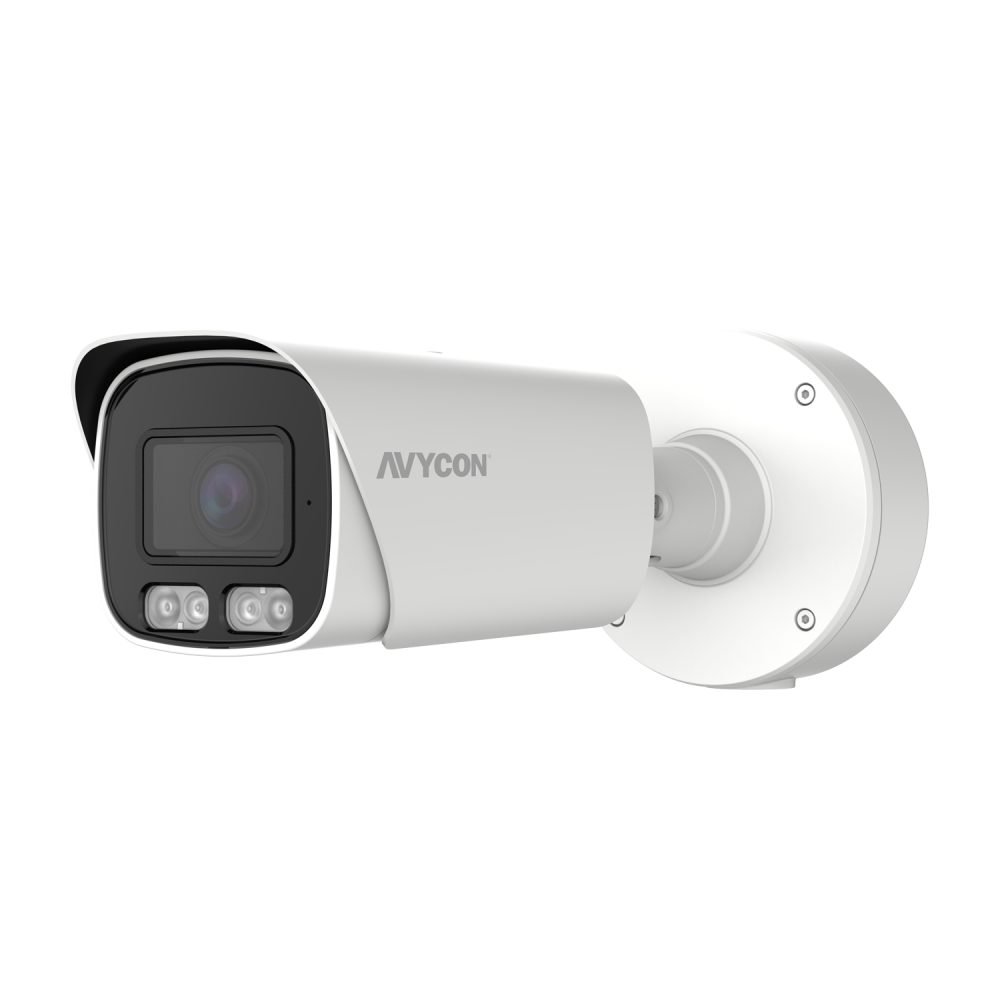

AVYCON - AVC-NCB81M50-IK - 8MP H.265 LONG RANGE LPR BULLET NETWORK CAMERA
Product Overview
The AVYCON AVC-NCB81M50-IK is an 8MP H.265 long range LPR bullet network camera designed for high-resolution license plate and perimeter surveillance. It combines 4K video at 30fps, a 5-50mm motorized lens, full-color imaging, intelligent analytics, onboard audio, local storage, and rugged IP67/IK10/NEMA 4X protection.
Key Configuration
Model: AVC-NCB81M50-IK | Product Type: 8MP H.265 Long Range LPR Bullet Network Camera | Resolution: 3840 x 2160 @ 30fps | Lens: 5-50mm motorized lens, F1.2 ±5% | Storage: microSD up to 512GB | Protection: IP67 / IK10 / NEMA 4X
Key Features
· 8MP 4K video resolution up to 3840 x 2160 at 30fps
· H.265+, H.265, H.264+, H.264, and MJPEG encoding support

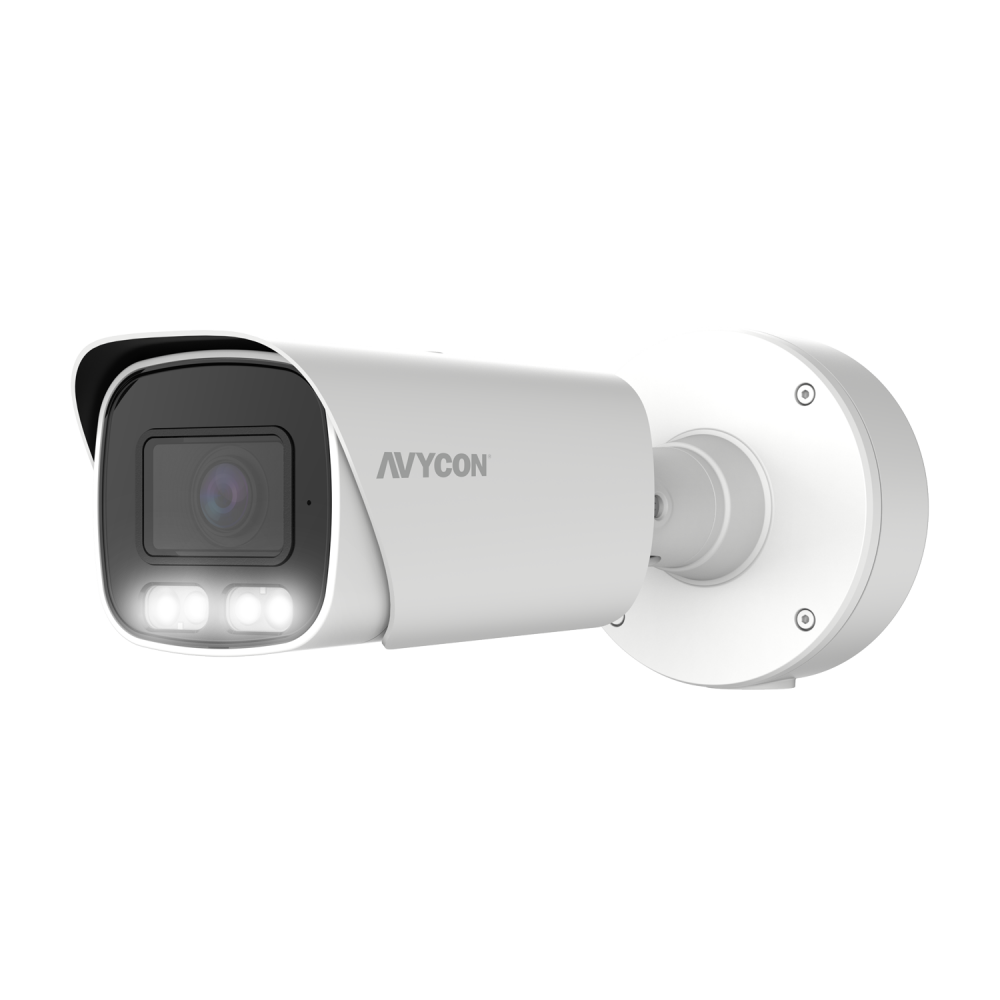

· Full Color Camera design with White Light LED illumination
· 5-50mm motorized F1.2 lens for long-range scene coverage
· 3D DNR, WDR, HLC, BLC, and ROI encoding for enhanced image performance
· Intelligent analytics for advanced surveillance event detection
· Built-in microphone and speaker for audio monitoring and communication
· Built-in microSD card slot for video and still image capture up to 512GB
Technical Context
The AVC-NCB81M50-IK is built for applications where detailed long-range identification is required. Its 5-50mm motorized lens provides a tighter field of view for distant subjects, while 4K resolution, full-color imaging, WDR, HLC, BLC, 3D DNR, and ROI encoding help maintain usable image detail in demanding lighting conditions.
Installation Notes
The camera supports both DC12V and PoE power, giving installers flexible wiring options. Its IP67, IK10, and NEMA 4X-rated housing makes it suitable for outdoor and exposed installations, with remote monitoring supported through AVYCON ONE and AVYCON CMSONE.
| Video | |
| Imaging Device | 1/2.7" Progressive CMOS |
| Resolution | Main Stream: 3840x2160, 3072x1728, 2592x1944, 2592x1520, 2304x1296, 1920x1080, 1280x960, 1280x720 Sub Stream: 1280x720, 640x480, 320x240 Mobile Stream: 640x480, 320x240 |
| Max. Framerate | Main Stream: Max. 30fps/25fps (60Hz/50Hz) Sub Stream: Max. 30fps/25fps (60Hz/50Hz) Mobile Stream: Max. 30fps/25fps (60Hz/50Hz) |
| Min. Illumination | Color: 0.007 lux @ F1.0 (AGC on) B/W: 0 lux (IR LED on) |
| Compression | Video: H.265+/H.265 Main Profile, H.264+/H.264 High Profile, MJPEG (Sub Stream Only) Audio: G.711a / G.711u |
| Bitrate Control | CBR or VBR (256Kbps ~ 8Mbps) |
| Lens | |
| Focal Length (Zoom Ratio) | 5~50mm Motorized |
| Max. Aperture Ratio | F1.2±5% |
| Angular Field of View | Horizontal: 49(W)7(T), Vertical:27(W)7(T), Diagonal:57(W)~8(T) |
| Min. Object Distance | 0.65ft (0.2M) |
| Focus Control | Simple Focus |
| Lens Type | Motorized (Ø14) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Adjustment | Manual Adjustment |
| Operational | |
| Camera Title | Title Displayed up to 32 characters |
| Day & Night | AUTO (ICR) / Full Color Mode |
| Exposure Compensation | BLC, HLC, WDR |
| Digital Noise Reduction | 3D DNR |
| Digital Image Stabilization | N/A |
| Motion Detection | Rectangle Grid (8 Levels of Sensitivity) |
| Privacy Masking | 4 Rectangle Zones |
| Gain Control | AUTO |
| White Balance | AUTO / MANUAL |
| LDC | N/A |
| Eletronic Shutter Speed | AUTO / Manual (1/5 ~ 1/20000s) |
| Video Rotation | Flip / Mirror |
| Analytics | Face Recognition (FR), Pedestrian & Vehicle Detection (PD&VD), Intrusion Detection (ID), Line Crossing Detection (TD), Tripwire Counting (TC), Stationary Object Detection (OBJ), Heat Map (HM), Crowd Density Detection (CD), Queue Length Detection (QD), License Plate Detection (LPR), Rare Sound Detection (RSD) |
| Alarm I/O | 1 Input / 1 Output |
| Alarm Triggers | Motion, Alarm, Sound Detection |
| Alarm Events | Warning Light, Notification via E-mail, Image file upload via FTP, Video file upload via FTP, Image file upload to Cloud (Dropbox), Video file upload to Cloud (Dropbox), Micro SD recording at event triggered, Event Push via HTTP / UDP |
| Audio In | 1 Line-In (RCA) |
| Audio Out | 1 Line-Out (RCA) |

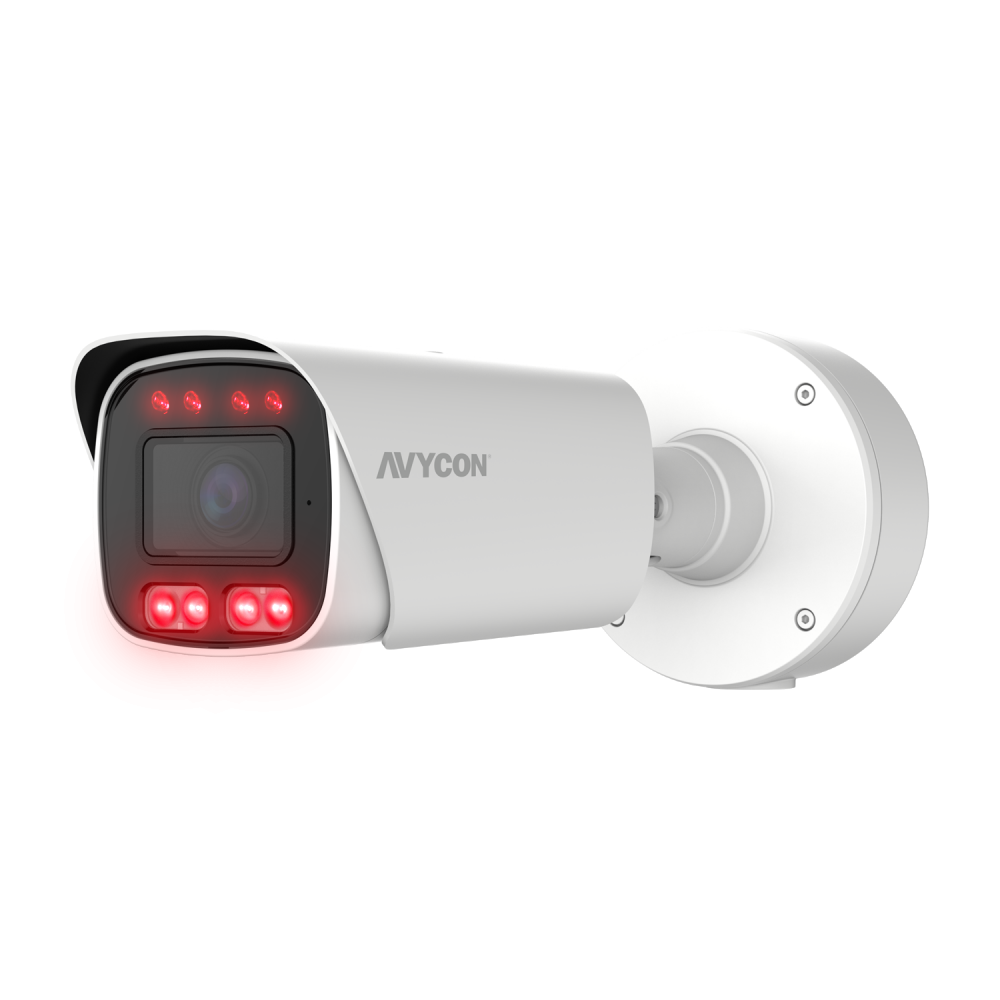

| IR Viewable Length | 262ft(80M) |
| White Light LED | 82ft(25M) |
| Network | |
| Ethernet | RJ45 (10/100BASE-T) |
| Streaming | Unicast / Multicast |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Security | Login Authentication, IP Address Filtering, User access log |
| Application Programming Interface | ONVIF Profile S/G/T, REST API |
| General | |
| Webpage Language | English, Korean |
| Edge Storage | Micro SD/SDHC/SDXC Slot (up to 512GB) with video and still image capture function |
| Memory | N/A |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -31°~140°F (-35°~+60°C) / less than 95% RH |
| Storage Temperature / Humidity | |
| Certification | IP67 / IK10 / NEMA 4X / NDAA |
| Input Voltage | PoE (IEEE802.3at) / 12VDC |
| Power Consumption | Max. 6W |
| Mechanical | |
| Color / Material | White / Metal |
| Product Dimensions / Weight | Ø5.29x13.86 in (Ø134.34x351.92mm) / 1.83lbs (829g) |
| DORI (EN62676-4-STANDARD) | |
| Detect (25PPM / 8PPF) | |
| Observe (63PPM / 19PPF) | |
| Recognize (125PPM / 38PPF) | |
| Identify (250PPM / 76PPF) | |
