AVYCON - AVC-NCMMS161F04 - 16MP H.265 MULTI-SENSOR NETWORK CAMERA
Product Overview

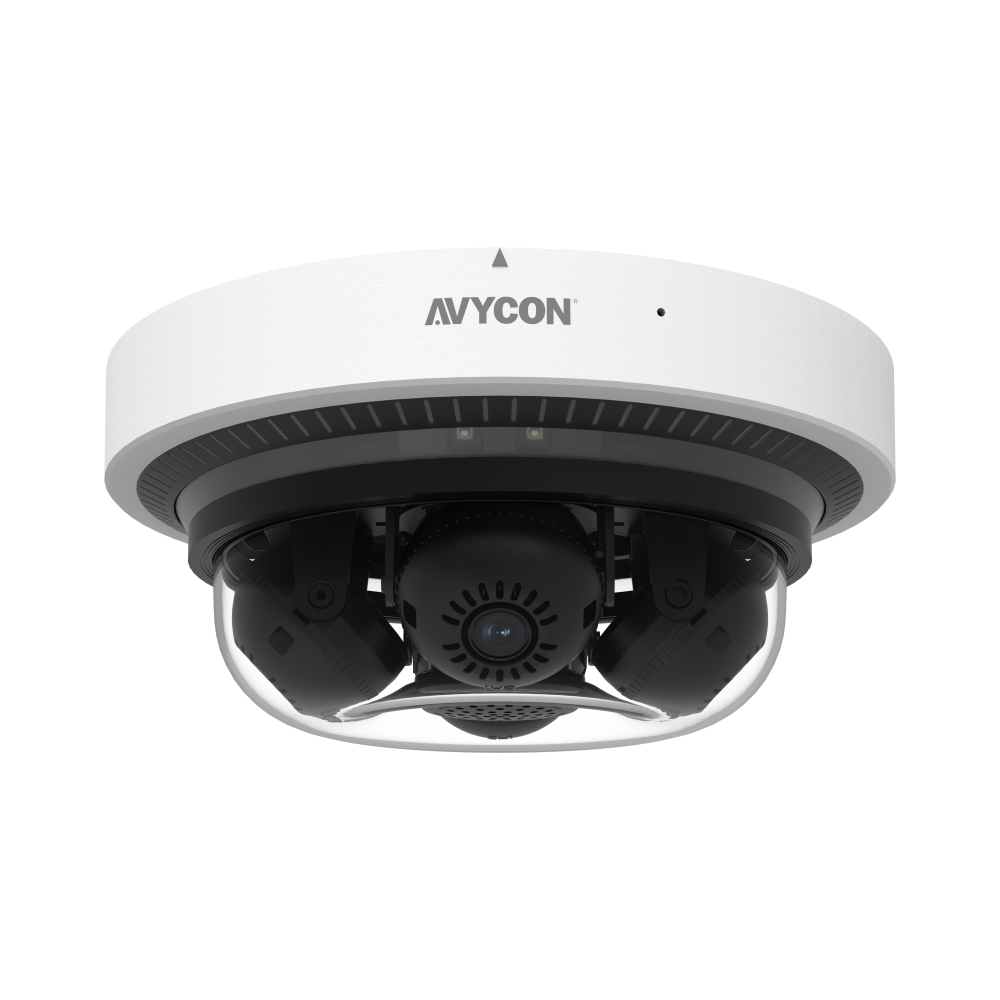

The AVYCON AVC-NCMMS161F04 is a 16MP H.265 multi-sensor network camera designed for wide-area surveillance with four independently adjustable 4MP sensors. It combines multi-directional coverage, full-color imaging, active deterrence lighting, intelligent analytics, and onboard audio in a rugged outdoor-ready camera platform.
Key Configuration
Model: AVC-NCMMS161F04 | Product Type: 16MP Multi-Sensor Network Camera | Sensor Configuration: 4MP x 4 channels | Resolution: 2688 x 1520 per sensor | Lens: 2.8mm fixed F1.2 | Storage: microSD up to 512GB | Protection: IP67 / IK08
Key Features
· Four manually adjustable 4MP sensors provide flexible multi-directional coverage
· Supports H.265, H.265+, H.264, H.264+, and MJPEG video compression

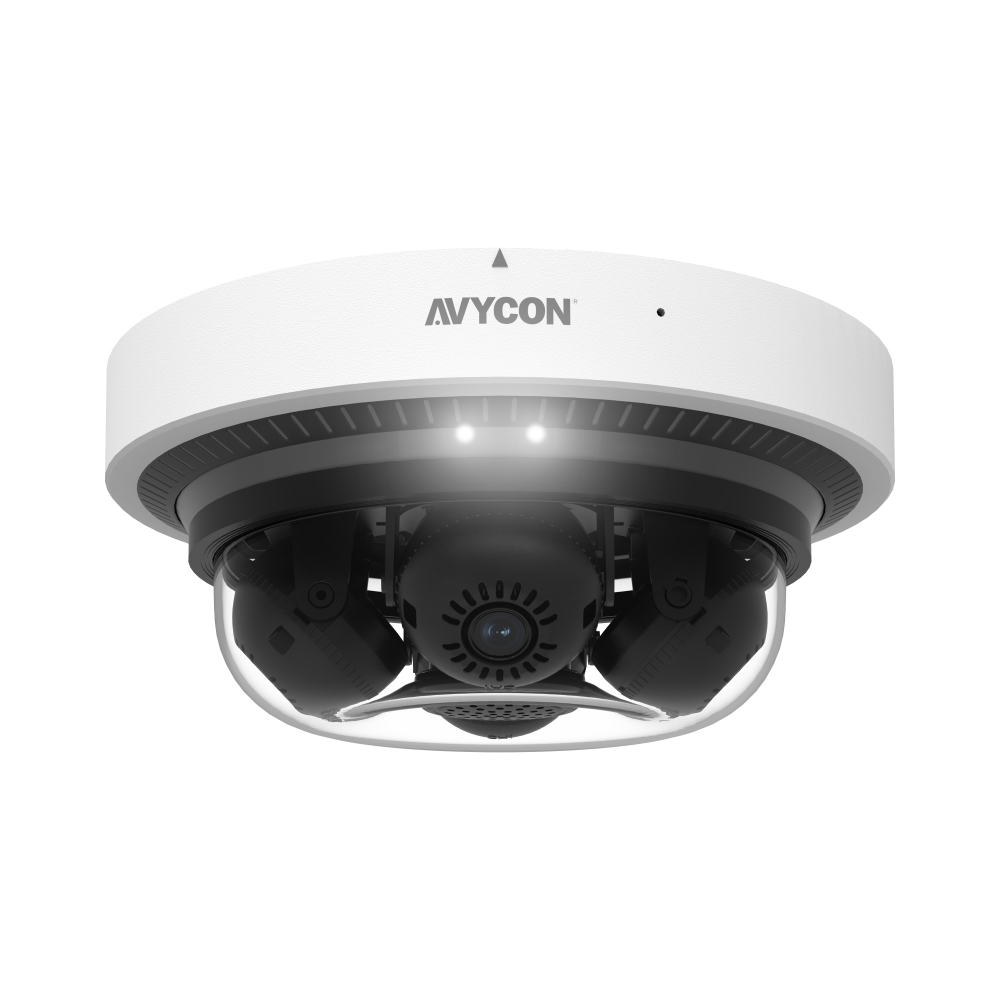

· Full Color and Active Deterrence functions with IR LED and White Light LED
· 3D DNR, WDR, HLC, and BLC improve image clarity in challenging lighting
· Intelligent Analytics support advanced event detection and monitoring workflows
· Built-in microphone and speaker support two-way audio and deterrence applications
· IP67 and IK08-rated housing supports outdoor installation in demanding environments
Technical Context
The AVC-NCMMS161F04 uses four separate 4MP imaging channels to monitor multiple directions from a single installation point. Its efficient compression options help reduce bandwidth and storage requirements, while onboard analytics, active lighting, and audio features support proactive surveillance and response.
Installation Notes
The camera supports PoE+, 12VDC, and 24VAC power options for flexible deployment. Its built-in microSD slot allows local recording up to 512GB, and remote monitoring is supported through AVYCON mobile app and management software platforms.
| Video | |
| Image Sensor | 1/2.7" Progressive CMOS |
| Max. Resolution | 2688x1520 |
| Main Stream Resolution | 2688x1520, 2304x1296, 1920x1080, 1280x720 |
| Sub Stream Resolution | 1280x720, 640x480, 320x240 |
| Mobile Stream Resolution | N/A |
| Max. Framerate | 15fps/15fps (60Hz/50Hz) |
| Min. Illumination (Color) | 0.005 lux @ F1.2 (AGC ON) |
| Min. Illumination (B/W) | 0 lux @ IR ON |
| Codec | |
| Video Compression | H.265/H.264/H.265+/H.264+/MJPEG |
| Audio Compression | G.711A/U |
| Lens | |
| Focal Length | 2.8mm |
| Lens Type | Fixed |
| Angular Field of View | H:109.7° V:57.6° D:131° |
| Max. Aperture Ratio | F1.2 |
| Min. Object Distance | 4.9ft (1.5m) |
| DORI | |
| DORI | Detection 167ft (50.9m), Observation 66.9ft (20.4m), Recognition 33.5ft (10.2m), Identification 16.7ft (5.1m) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Four flexible lenses in one track, slide range: -50° to 50°, tilt: 0° to 75°, rotate: 0° to 90° |
| Operational | |
| IR LED | 8 |
| White LED | 8 |
| Red / Blue LED | N/A |
| Light Viewable Length | IR: Up to 65ft (20m), White Light: Up to 65ft (20m) |
| Image Mode | Full Color Mode / Day & Night Mode / Smart Illumination |
| Audio | Built-in MIC / Speaker |
| Alarm | 1 x Input, 1 x Output |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | 3D DNR |
| Analytics | Human & Vehicle, Tripwire Detection, Stationary Object Detection, Tripwire Count, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Loitering, Region Entrance, Region Exiting |
| Active Deterrence | Yes |
| Camera Title | Up to 31 characters |
| Backlight Compensation | BLC, HLC, WDR |
| Motion Detection | Rectangle Grid (8 Levels of Sensitivity) |
| Privacy Masking | 6 Rectangle Zones |
| Gain Control | Auto |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | Auto / Manual (1/5 ~ 1/20000s) |
| Video Rotation | Flip, Corridor, Angle Adjustment |
| Alarm Triggers | Motion, Alarm, Sound Detection |
| Alarm Events | Warning Light, Siren, Event Push, E-mail Notification, Image file upload via FTP, Video file upload via FTP, Micro SD recording at event triggered |
| Network | |
| Ethernet | RJ45(10/100BASE-T) |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Security | IP address filter, Password protection, Digest authentication, Complicated password, IEEE 802.1X authentication, WSSE for ONVIF, Brute-Force Defense, HTTPS TLS 1.2/1.3, SNMPv1.3, RTSP over HTTPS, Security audit log, Encrypted firmware, Host authentication (MAC-address), Auto logout, watermark, Secure boot |
| Bitrate Control | CBR (256Kbps ~ 8Mbps), VBR (256Kbps ~ 8Mbps) |
| Streaming | Unicast / Multicast |
| Application Programming Interface | ONVIF Profile S/G/T/M |
| General | |
| SD Card Slot | Micro SD slot, up to 512GB |
| Starllion Ready | Yes |
| Ingress Protection | IP67, IK08 |
| Camera System | Network |
| Product Series | Diversity |
| Product Dimensions | Ø7.87" × 3.46" (Ø200 × 88 mm) |
| Product Weight | 6.48 lb (2.94 kg) |
| Material | Metal |
| Color | White |
| Housing Style | Multi-sensor |
| Electrical & Environmental | |
| Power Consumption | 12VDC: max. 16.8 W, 24VAC: max. 17.86 W, PoE+ (48V): max. 18.7 W |
| Power Input Voltage | PoE+ (IEEE 802.3at) / 12VDC / 24VAC |
| Operating Condition | -22°F to 140°F (-30°C to +60°C) / ≤ 90% RH |
| Certification & Standards | |
| NDAA Compliant | Yes |
| EMC | EN 55032:2015+A1:2020, EN 55035:2017+A11:2020 , EN IEC 61000-3-2:2019+A2:2024, EN 61000-3-3:2013+A2:2021+AC:2022-01 |
| Safety | CE: EN IEC 62368-1:2020+A11:2020, FCC: FCC Rules and Regulations Part 15 Subpart B |
| Environment | CE-RoHS:(EU) 2015/863, IEC60529, IEC60068-2-14 |
