AVYCON - AVC-NCMS201M04 - 20MP H.265 INFINITECOLOR MULTI-SENSOR NETWORK CAMERA
Product Overview

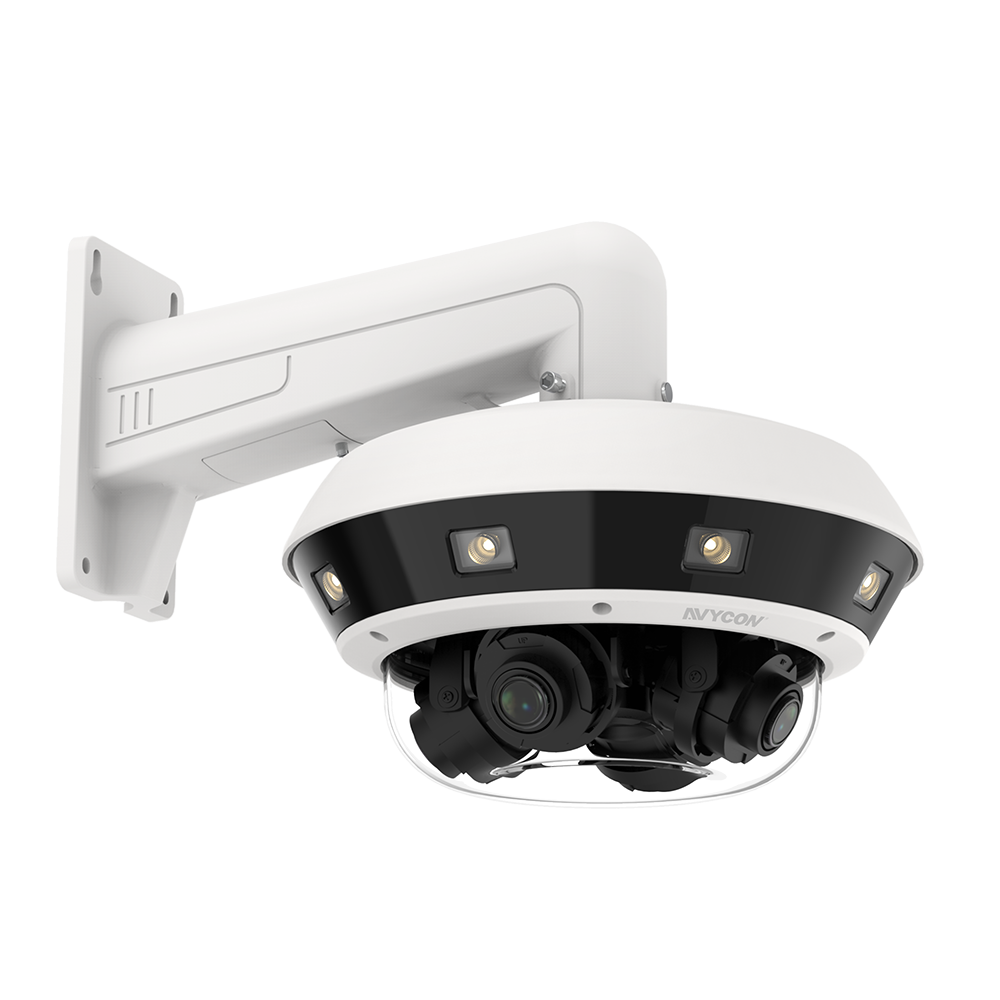

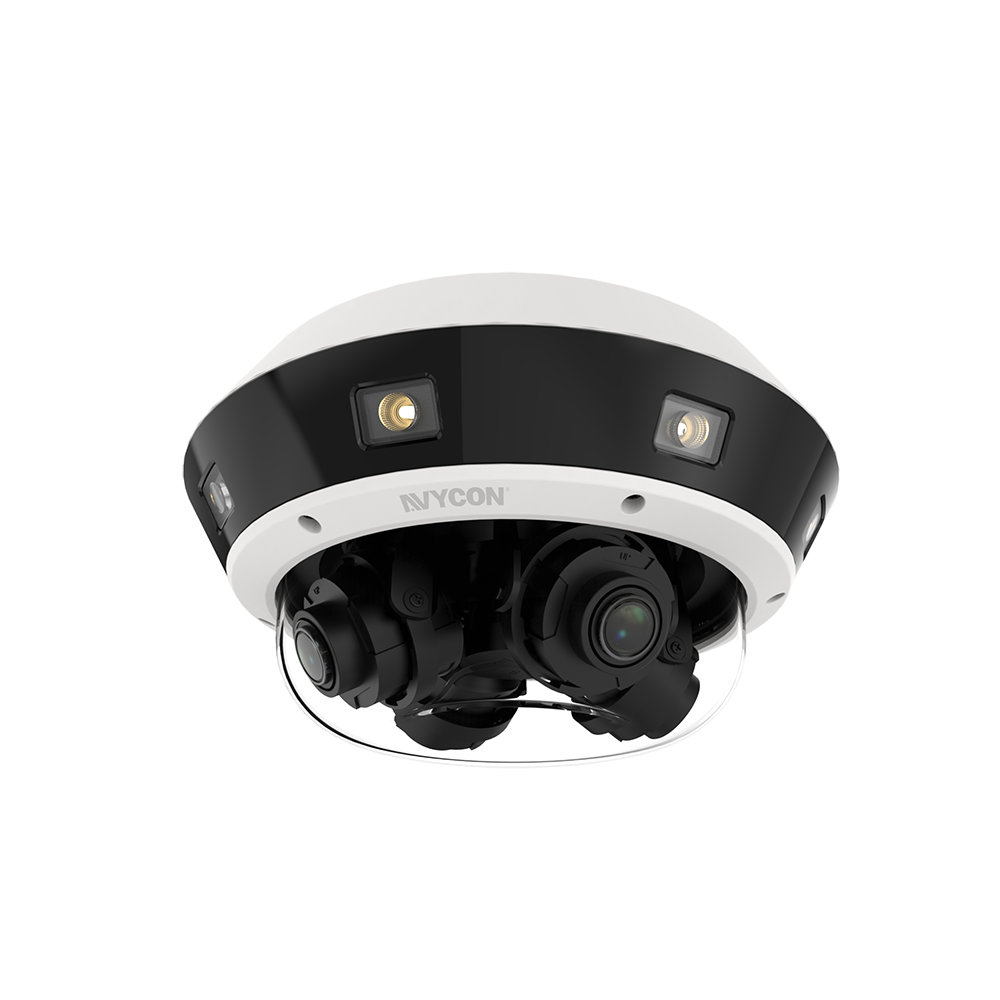

The AVYCON AVC-NCMS201M04 is a 20MP H.265 InfiniteColor multi-sensor network camera designed for 24/7 color, 360-degree multi-directional surveillance. It combines four manually adjustable 5MP sensors, motorized autofocus lenses, intelligent analytics, IR night vision, white light illumination, and rugged IP67/IK10 protection.
Key Configuration
Model: AVC-NCMS201M04 | Product Type: 20MP H.265 InfiniteColor Multi-Sensor Network Camera | Sensor Configuration: 5MP x 4 channels | Resolution: 30fps at 5MP, 2880 x 1620 | Lens: Four 2.8-12mm motorized autofocus lenses | IR Range: Up to 98ft / 30m | White Light Range: Up to 49ft / 15m | Protection: IP67 / IK10
Key Features
· Four manually adjustable 5MP sensors provide flexible 360-degree multi-directional coverage
· Supports H.265+, H.264+, H.265, H.264, MJPEG, multi-streaming, and three-stream operation
· Four 2.8-12mm motorized autofocus lenses allow remote adjustment of field of view and focus
· 3D DNR, WDR, HLC, BLC, Smart IR, and ROI encoding improve image quality and stream efficiency
· Intelligent Analytics support advanced event detection and monitoring workflows

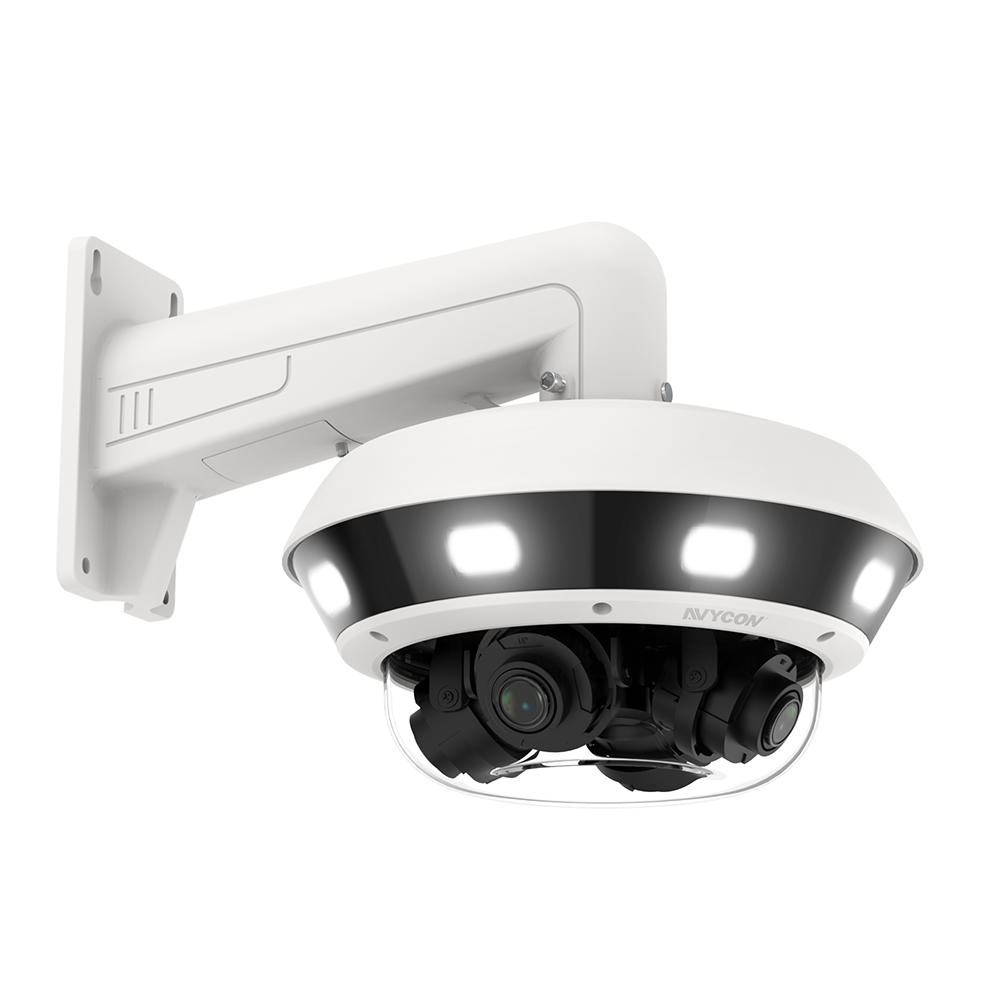

· IR illumination reaches up to 98ft, while white light LEDs provide up to 49ft of visible illumination
· Built-in microSD card slot supports video and still image capture up to 512GB
Technical Context
The AVC-NCMS201M04 combines four 5MP imaging channels in one multi-sensor platform, allowing wide-area monitoring from a single camera location. Its InfiniteColor design, IR illumination, white light LEDs, and image enhancement technologies help maintain usable detail across day, night, and mixed-light environments.
Installation Notes
The camera supports 24VAC, 12VDC, and PoE++ power options for flexible deployment. Its IP67 and IK10-rated housing is suitable for outdoor and vandal-prone environments, and remote monitoring is supported through AVYCON ONE mobile app and AVYCON CMSONE CMS software.
| Video | |
| Imaging Device | 1/2.7" Progressive Scan CMOS (EA) |
| Resolution | Main Stream: 2880x1620, 2592x1520, 2304x1296, 1920x1080, 1280x720, 320x240 Sub Stream: 1280x720, 640 x 480, 320x240 Mobile Stream: 640x480, 320x240 |
| Max. Framerate | Main Stream: Max. 30fps/25fps (60Hz/50Hz) Sub Stream: Max. 30fps/25fps (60Hz/50Hz) Mobile Stream: Max. 30fps/25fps (60Hz/50Hz) |
| Min. Illumination | Color: 0.005 Lux @ (F1.3, AGC ON),0 Lux with IR on/White light on |
| Video Out | N/A |
| Lens | |
| Focal Length (Zoom Ratio) | 4 of 2.8-12mm, Varifocal Motorized lens |
| Max. Aperture Ratio | F1.3 |
| Angular Field of View | Horizontal: 35.3°~ 112.2°, Vertical: 19.9°~58.2°, Diagonal: 40.5°~137.2° |
| Min. Object Distance | 2.62ft (0.8M) (Wide) ~ 3.28ft (1M) (Tele) |
| Focus Control | Auto |
| Lens Type | M12 |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Four flexible lens in one track, slide range: -50° to 50°, tilt: 0° to 75°, rotate: 0° to 90° |
| Operational | |
| Camera Title | Title displayed up to 32 characters |
| Day & Night | IR Cut Filter |
| Backlight Compensation | BLC, HLC, WDR |
| Digital Noise Reduction | 3D DNR |
| Digital Image Stabilization | N/A |
| Motion Detection | Rectangle Grid (8 Levels of Sensitivity) |
| Privacy Masking | 4 Rectangle Zones |
| Gain Control | AUTO |
| White Balance | AUTO / MANUAL |
| LDC | N/A |
| Eletronic Shutter Speed | AUTO / Manual (1/5 ~ 1/20000s) |
| Video Rotation | Flip / Mirror |
| Analytics | Face Detection(FD), Pedestrian & Vehicle Detection(PD&VD), Line Crossing Detection(TD), Tripwire Counting(TC), Stationary Object Detection(OBJ), Heat Map(HM), Crowd Density Detection(CD), Queue Length Detection(QD), License Plate Detection(LPR), Region Entrance, Region Exiting |
| Alarm I/O | 2 Inputs / 2 Outputs |
| Alarm Triggers | Motion, Sound Detection |
| Alarm Events | Warning Light Notification via E-mail Image file upload via FTP Video file upload via FTP Image file upload to Cloud (Drobox) Video file upload to Cloud (Dropbox) Micro SD recording at event triggered Event Push via HTTP / UDP |
| Audio In | 1 Line-In (RCA) |
| Audio Out | 1 Line-Out (RCA) |
| IR Viewable Length | IR Max. 98ft (30M) / White Light LED Max. 49ft(15M) |
| Network | |
| Ethernet | 1 RJ45 10 M/100 M/1000 M Ethernet port |
| Video Compression | Main Stream: H.265+/H.265, H.264+/H.264 Sub Stream: H.265+/H.265, H.264+/H.264/MJPEG. Mobile Stream: H.265+/H.265/H.264+/H.264 |
| Audio Compression | G.711a / G.711u |
| Bitrate Control | CBR or VBR (8Kbps ~ 8Mbps) |
| Streaming | Unicast/Multicast |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, PPPoE, RTMP (v8.2.3 firmware and above) |
| Security | Login Authentication, IP Address Filtering, User access log |
| Application Programming Interface | ONVIF Profile S/G/T, REST API |
| General | |
| Webpage Language | English, Korean |
| Edge Storage | Micro SD/SDHC/SDXC Slot (512GB) |
| Memory | N/A |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -22° ~ 140° F (-30°～+60°C) / less than ≤ 95% RH |
| Storage Temperature / Humidity | -22° ~ 131° F (-30°～+55°C) / less than ≤ 95% RH |
| Certification | IP67, IK10 |
| Input Voltage | 56VDC, 60W PoE+ Injector Included / PoE++ (IEEE802.3.bt) /24VAC / 12VDC |
| Power Consumption | Max. 43W |
| Mechanical | |
| Color / Material | Alloy |
| Product Dimensions / Weight | 11.8" x 7.7" (300mm x 195mm) / 10.1lb (4.6kg) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | |
| Observe (63PPM/ 19PPF) | |
| Recognize (125PPM/ 38PPF) | |
| Identify (250PPM/ 76PPF) | |
